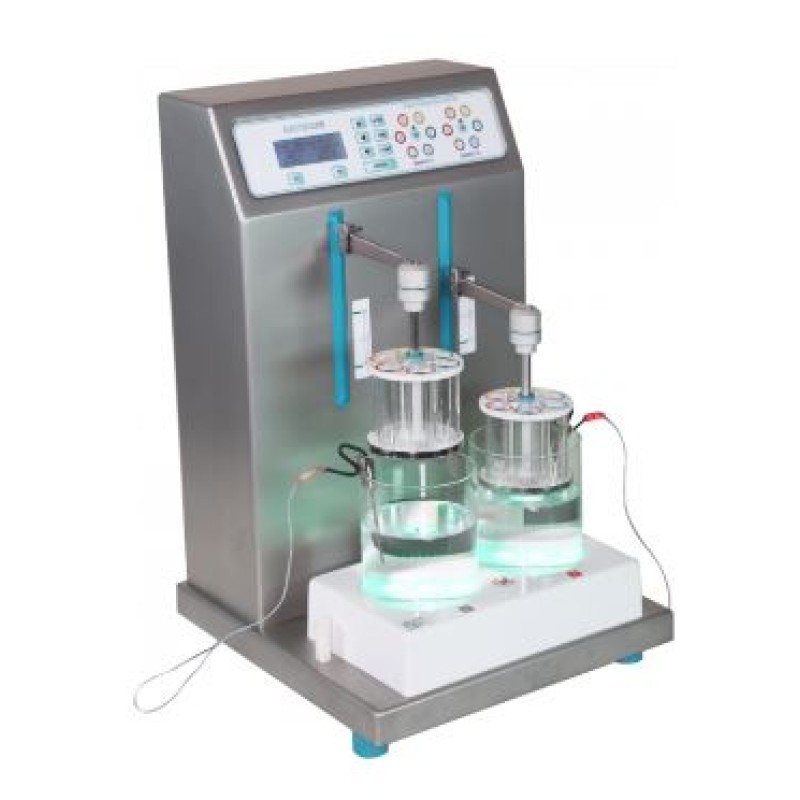

Disintegration Tester
EDI-2SA
Product Details :
- Complies with USP, IP, Ph. Eur. specifications
- Bathless heating (saves water, time, electricity)
- Bathless disintegration tester is maintenance-free
- Specially designed efficient heater plates for vessel, heats media quickly
- Basket park-out from beaker
- Disintegration time registration of individual tablets
- Test results and validation gets printed
- Individual motor and timer with external probe for each basket
- Magnetically coupled basket for easy loadingbasket for easy loading
- 20 Different users can loginprotocols
- Date & Time Lock Facility
Specifications :
| Model | EDI-2SA |
| Beaker | 1000 ml glass beakers (2 nos.) |
| Basket | 2 nos. each carrying 6 test position (dimensions as per latest USP) |
| Guided disc | Perforated cylindrical disc 6 nos. in each basket (dimensions as per latest USP) |
| Printer interface | Centronics Serial port |
| Display | 20 x 4 LCD |
| Motor | Single shaft 6V DC motor 10 kg cm torque (2 nos.) |
| Illumination | Green LED |
| Power supply | 230 V AC, 50 Hz, 490 VA |
| No. of strokes | 30 ±0.5 strokes/min |
| Stroke height | 55 mm ±2 mm |
| Readable temperature range | 10° C to 45° C |
| Controlled temperature range | 15° C to 40° C |
| Temperature resolution | ±0.2° C |
| Dimensions (L x W x H) | 360 x 372 x 570 mm |
| Weight Net | 25 kgs ,Gross 30 kgs |
Disintegration Tester
- Views: 63
-
Electrolab India Pvt. Ltd. - Product Code: EDI-2SA
- Availability: In Stock
