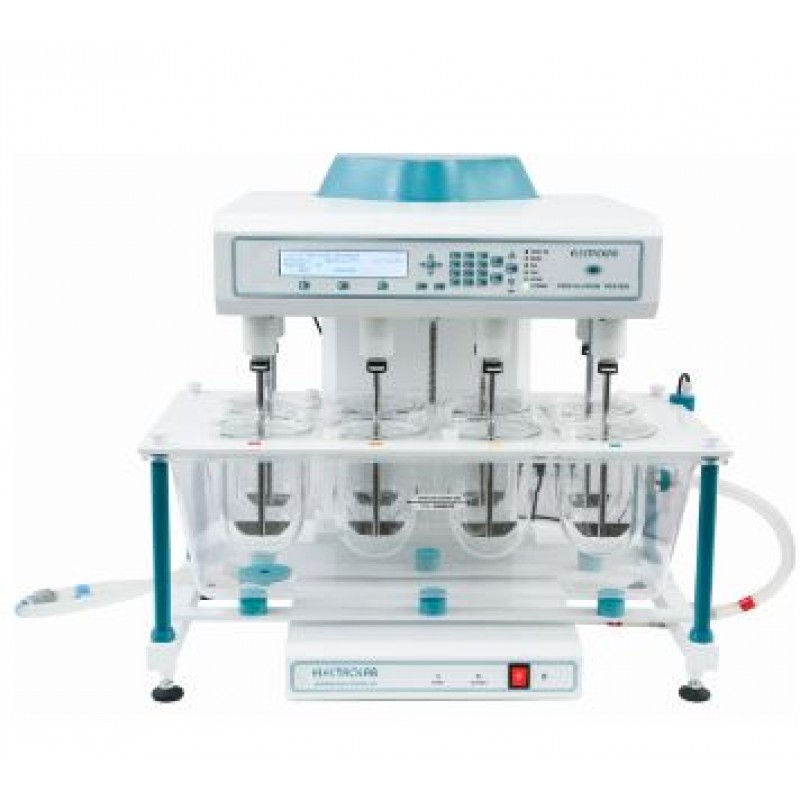

Inspire 8 Basic

Inspire 8 Basic

Product Details :

  • LCD display of 40 characters and 4 lines for user friendly operation
  • Three level security with password
  • Alphanumeric data entry of product and user details
  • Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products
  • Complies with USP, IP, Ph. Eur. and JP specifications
  • Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
  • Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation
  • Clear water bath with metal top-plate
  • Precise individual vessel centering system
  • Adjustable leveling of instrument
  • Vibration free smooth motorized lift movement
  • Isolated water circulating pump for precise temperature control of the water bath
  • 20 programmable protocols
  • 16 programmable sampling intervals
  • Easy to empty and clean water bath with bottom drainage
  • Designed to minimize routine validation
  • Report for online validation of test, monograph, error log during the test
  • Programmable wake-up for temperature control
  • Programmable sample volume from 1 ml to 25 ml
  • Audio-visual indicators for system status
  • Power failure detection facility


Specifications :
ModelInspire-08
Accuracy+/-1% RPM
Temperature Range20° C to 40° C
Temperature Accuracy±0.1°C
Display40 x 4 character backlighted LCD
No. of protocols20 maximum
Sample intervalMaximum 16 of 1 min to 23 hrs, 59 min
Printer interfaceSerial port
Printer supported80 column Dot Matrix printer
BathClear acrylic molded water bath
Bath size (L x W x H)705 x 374 x 200 mm
Heater1 kW/230 VAC, material S.S. 304 with sensor
Pump supply230 VAC,50 Hz
Pump typeMagnetic coupling
Pump flow rate10 liters/minutes maximum
Power supply220 /230 VAC , 50 / 60 Hz, 1.3kW/6Amp
Dimension(L x W x H)705 x 505 x 645 mm
