Drainage & Seepage Tank Apparatus

Product Details:

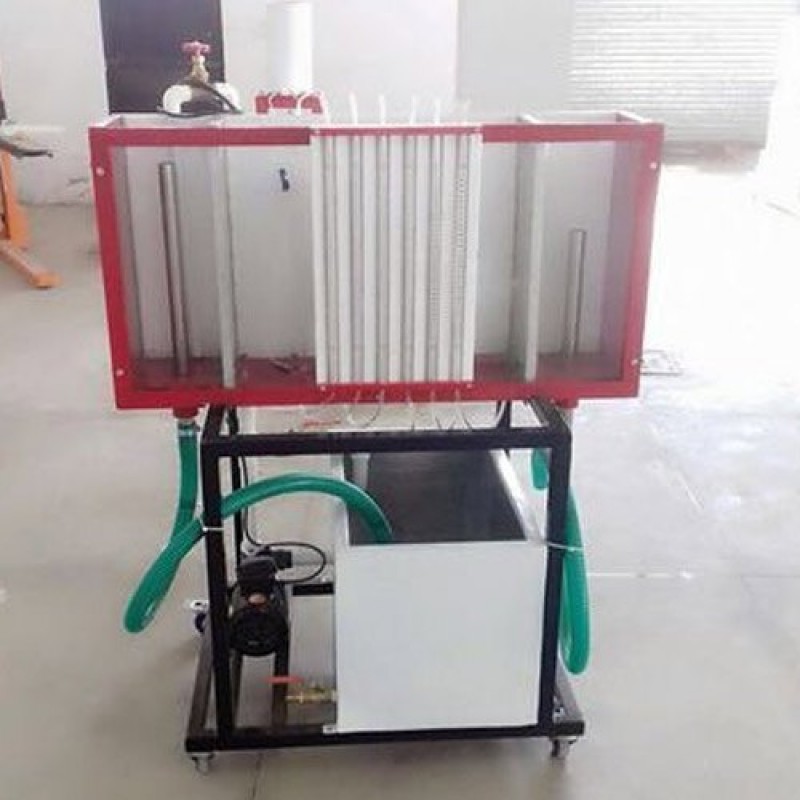

description; The present set-up is designed to study the flow through permeable media. This apparatus consists of a tank whose bed is made from Stainless Steel. The sides of the tanks are supported and sealed so that it allows free access to the interior. One side of the tank is of Toughened glass to give good scratch free visibility over a long period of use and minimum sight obstruction. Second side is of Stainless Steel and required pressure tapings are mounted on the same. The tank has two adjustable overflows close to the each end so that constant head of water can be maintained in each half of the tank. These may be lowered to a position close to the bed of the tank for some experiments to provide sub soil drainage. Present set-up is self-contained water circulating unit with sump tank, Pump, flow control valve etc.
• experimentation/learning objectvies;
• To study the seepage through an earth dam.
• To study the control of Seepage through permeable soil by sub-soil drainage.
• Stability of an earth dam.
utilities required;
• Water supply: Initial fill.
• Laboratory Drain.
• Electricity Supply: 220 VAC, Single Phase, 50 Hz, 5-15 amp combined socket with earth connection. Earth voltage should be less than 5 volts.
• Chemical: KMnO4 - 20 gms.
technical details;
• Drainage/Seepage Tank : Length 1500 mm Width 100 mm
• Tank Base : Stainless Steel/Aluminium
• Front Side : Toughened Glass (Front Side)
• Bake Side : Stainless Steel
• Sump Tank : Stainless Steel, Capacity 100 Ltrs.
• Pump : FHP Pump, Crompton Make.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
