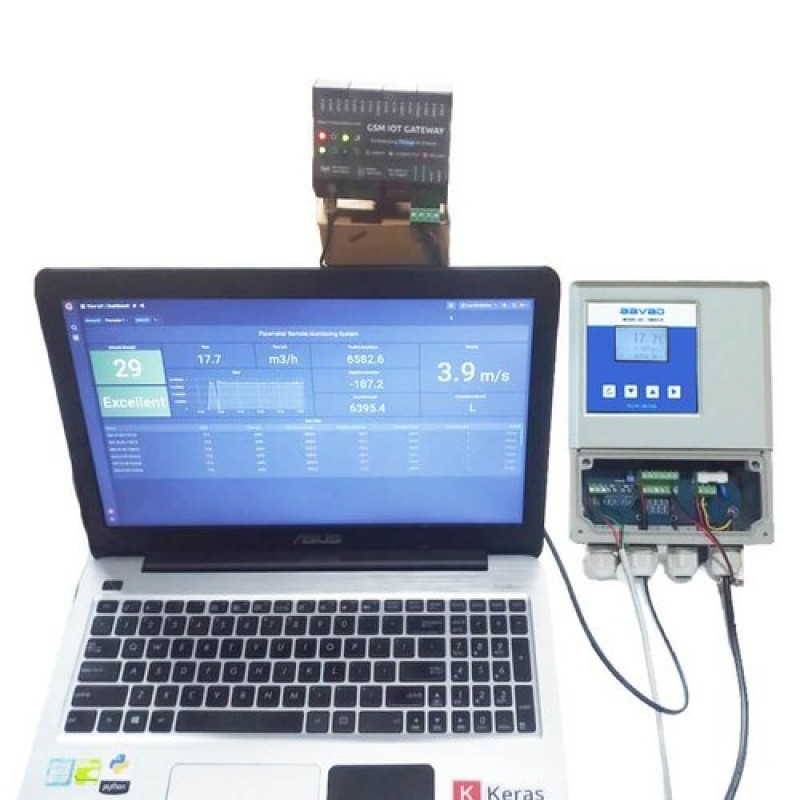

ELECTROMAGNETIC FLOWMETER WITH TELEMETRY SYSTEM
Product Details:
Application Media | Water |
Material | MS |
Model Name/Number | AMAG-I |
Brand | AAVAD |
Usage/Application | Water |
Connection | 25mm |
Display | Digital |
MODEL:AMAGI SERVICE : WATER CONDUCTIVITY : ≥ 10 ΜS/CM OUTPUT : 420 MA ISOLATED,RS – 485 ,PULSE DISPLAY : LCD 16X4 LINE 9 DIGIT TOTALIZED FLOW ACCURACY : +/ 0.5 % OF READING REPEATIBILITY : +/1% PROCESS TEMPERATURE: 0 C 150 °C PROCESS PRESSURE: MAX : 10 KG/CM2 INTERNAL : PTFE LINNING ELECTRODE MOC : SS 316 POWER SUPPLY : 230 V AC RESPONSE TIME : 0.3 SEC PROCESS CONNECTION : ASA 150 FLANGED MS OPERATING TEMPERATURE : 55 C ELECTRONICS HOUSING: DIE CAST ALUMINUM, IP 65 EMPTY PIPE DETECTION: YES BACK LIGHT LCD: YES VELOCIY :0.3 TO 10 M/S MEASURING UNIT : SELECTABLE KG/H,M3/H,L/H,L/M,L/S,KG/M,KG/S LINE SIZE: 25 MM
Features:
- 1 x RS-485 port for Modbus
- OTA (Over The Air) Firmware support.
- LED Indicator provides Power, Network, Cloud and Communication status.
- Keep Alive command to maintain socket connection
- Robust Industrial Design & Easy to install and integrate
- Visualize the collected data on a dashboard
- Analyze incoming data to derive actionable insights
- Store data for reporting and historical analysis
- Automatic reports generation with defined time intervals and to configure mails
Dashboard parameters :
- Flow
- Positive cumulative total
- P+N cumulative total
- Dynamic units change as per the flow meter settings.
- Velocity
- Negative cumulative total
- Network strength & RSSI signal quality
- Historical flow data
- SMS Features : 1 Admin + 3 Users access
- Auto Status Message two times in a day
- SMS Accepted only from the authorized number
- Date and Time stamp in the message
- Automatic time aqasion from the network
- Instantaneous status can be inquired
Additional Information:
Delivery Time: 1-2 WEEK
