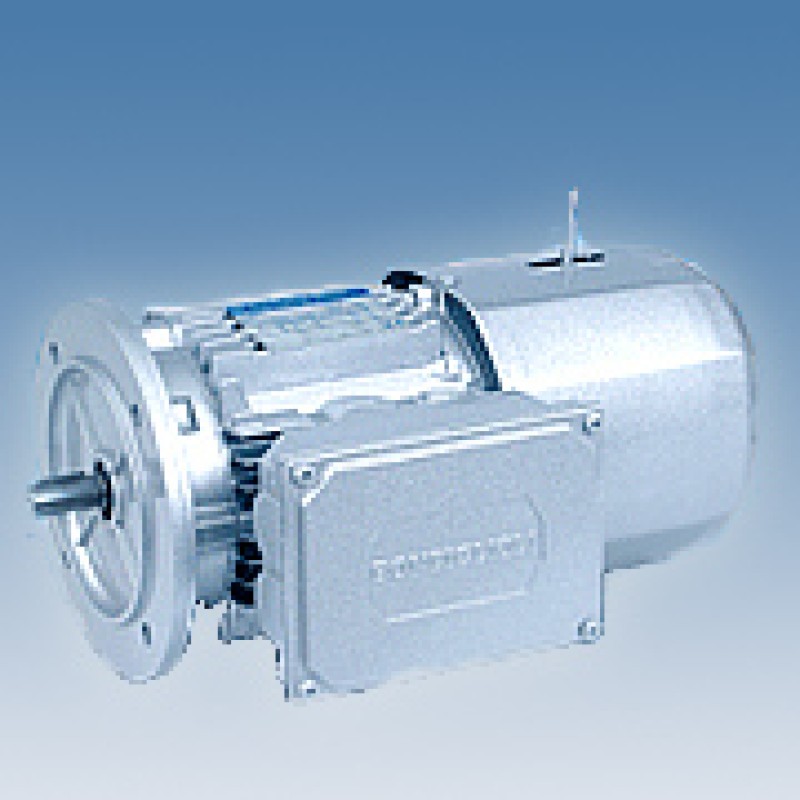

AC Motors
Product Details :
We are offering AC Motorsto our esteemed clients. Our AC motors comply with EMC and LV directives. These are available in the 0.06 - 30 kW range in the foot and the flange mounting version.
Technical specifications of AC motors are as mentioned below: kW rating (4 pole): 0,06 kW ... 30kW
Frame Sizes: 25 nos
Pole Numbers: 2, 4, 6, 8, 2/4, 2/8, 2/12, 4/6, 4/8
Mounting Options:
- Foot IM B3
- Flange Im B5 and IM B14
Operation: 50 Hz and 60 Hz
Compliance: CEE 73/23 (LVD) and CEE 89/336 (EMC)
Inverter Duty: All Frame Sizes
Housing: Cast Alluminium
Main Brake Features:
- DC and AC supply
- Faster Brake Engage/Disengage through Electronically
- Controlled AC/DC Rectifier type SB, NBR, SBR (option)
Main Options:
- Thermistors and Thermostats sensor
- Separate Supply Forced Ventilation
- Line Driver and Push-Pull Incremental Encoder
- CSA and UL Approved Design
Our products in BN series vary in following measures:
Type | kW | Type | kW |
BN 56A | 0,06 | BN 90LB | 1,85 |
BN 56B | 0,09 | BN 100LA | 2,2 |
BN 63A | 0,12 | BN 100LB | 3 |
BN 63B | 0,18 | BN 112M | 4 |
BN 63C | 0,25 | BN 132S | 5,5 |
BN 71A | 0,25 | BN 132MA | 7,5 |
BN 71B | 0,37 | BN 132MB | 9,2 |
BN 71C | 0,55 | BN 160MR | 11 |
BN 80A | 0,55 | BN 160M | 15 |
BN 80B | 0,75 | BN 180M | 18,5 |
BN 80C | 1,1 | BN 180L | 22 |
BN 90S | 1,1 | BN 200L | 30 |
BN 90LA | 1,5 |
