Gear Motors
Product Details :

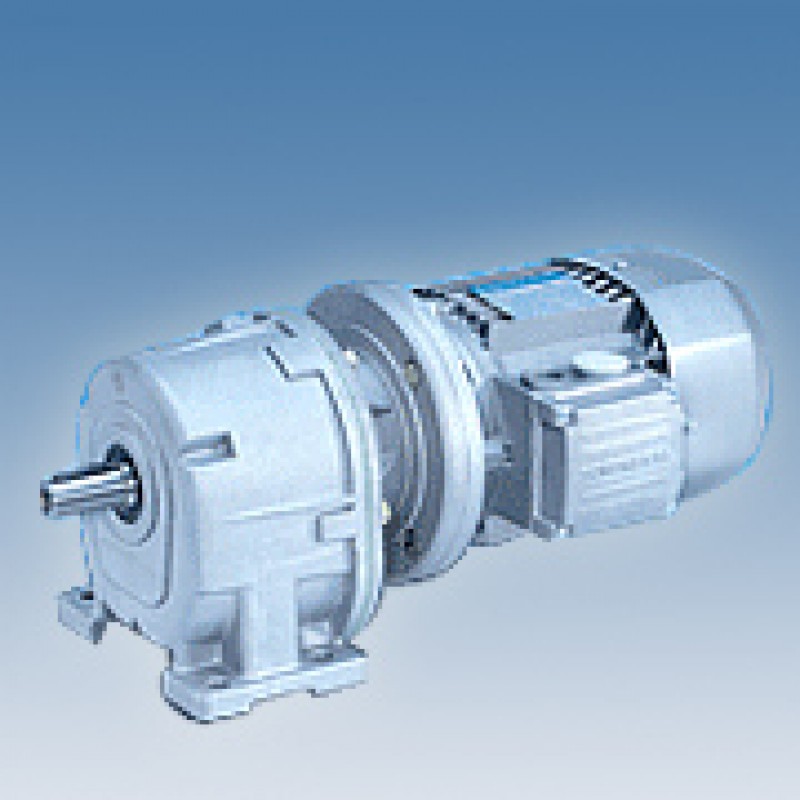

In-line gear motors (Electric Gear Motors) fall under Bonfiglioli Products category in the segment of motors & brakes devices. You can use these for all in-line drive applications. Flange mounting at any mounting position is possible, that makes it easier to install.
Technical specifications of In-line gear motors are as mentioned below:
- Transmissible torque: 30 Nm... 7.200 Nm
- Rated power (n1= 1400 min-1): Up to 140 kW
- Gear ratios: iN = 4,5 ... 185
- Output Configurations: Solid Keyed Shaft
- Input Configurations: IEC motor mounting provision, Solid Input Shaft
- Applicable motors: IEC-normalized Motors, up to 45 kW, Single and Dual Speed Version
Main Brake Features:
- DC or AC supply
- Fast Braking and/or brake releasing through SB
- NBR, SBR optional electronic devices
Main Motor Options:
- Thermistors and Thermostats sensor
- Forced Ventilation
- Line Driver and Push-Pull Incremental Encoder
AS Series of our products differ in their torque measurements:
Type | Torque Nm |
AS 16 | 45 |
AS 20 | 90 |
AS 25 | 180 |
AS 30 | 320 |
AS 35 | 480 |
AS 45 | 720 |
AS 55 | 1.200 |
AS 60 | 2.100 |
AS 80 | 3.800 |
AS 90 | 6.200 |
Additional Information:
- Item Code: In-Line-Gear-Motors
