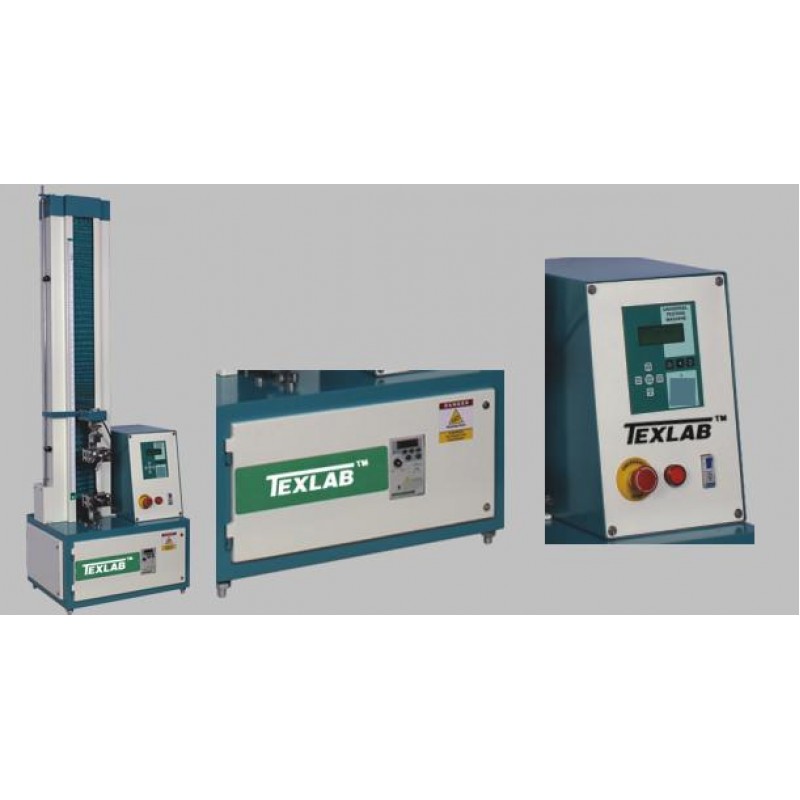

Electronic Tensile Strength Tester

Product Details :

(A) For Single Yarn. Cap.10/50kg. LCD & Computerised.

(B) For Lea. Cap.100/500kg. LCD & Computerised

(C) For Lea/Fabric & Single Yarn Cap.5kg to 500kg. Computerized in Single Machine

(D) For Fabric, Rubber, Metal,Strip,Plywood,Wire & Paper etc.etc.Cap.250kg/10T LCD & Computerised

Standards ISO, ASTM, BS, IS.

• Machine suitable for Fabric/Lea testing
• Single screw heavy duty frame structure balance load facility for smooth working and operation
• Machine is Floor mounted model with microprocessor based computer supported software system.
• Machine can work on both directions Tensions
• Machine is suitable for Fabric/Yarn lea application.(Strength & Elongation)
• Machine is fully digital model with accuracy.
• Speed selection is 300mm & 450mm speed A.C. Drive.
• Speed change settable with digital key Pad on A.c.Drive
• Extension resolution 0.01mm
• Extension accuracy. 1mm
• Extension measurement grip to grip.
• Force Measurement and detection via. Digital load cell. Accuracy 0.5% of applied force.
• Real Time Graph of Load vs. Extension is displayed during the test.(incase of computer interfacing)
• User can convert graph into Stress vs. strain at any instant.
• Easily Unit conversion facility also available after completion of the test.
• Easy storage and retrieval of test profiles.
• Manual cross head, up, down, stop control
• Input of test data formatting of test report via. computer software.

Note - Computer with printer is required at customer end. The same has to be arranged by you at your cost. Computer features having windows XP loaded software and Microsoft office 2003 loaded PC.

Load Cell – 1 No

• Range: 250kgf.
• Least Count: 0.01kg and accuracy 10 gms at 250kgf
• Load cell is permanently fixed. No Need to change any fixture
• Window based test software supplied along with the machine.

Load Cell -1 No.

• Range: 500kgf.
• Least Count: 0.1kg and accuracy 10 Gms at 500 kgf.
• Load cell is permanently fixed. No Need to change any fixture.
• Window based test software supplied along with the machine.

Grips and Fixtures

Note - Computer with printer is required at customer end. Computer features having windows XP loaded software and Microsoft office 2003 loaded PC.
