Electronic Twist Tester
Product Description

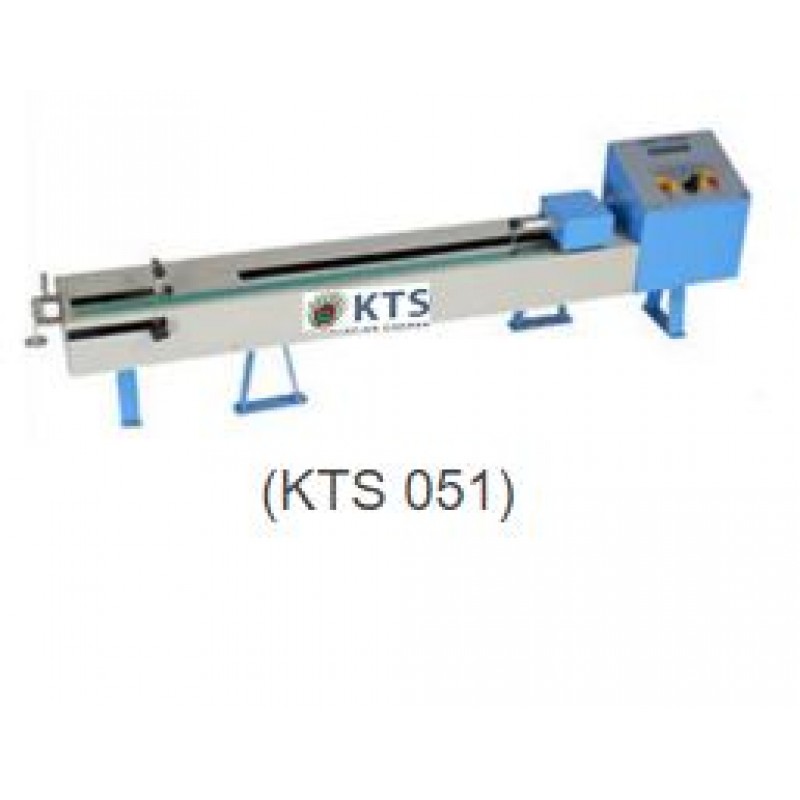

Electronic Twist Tester - ITEM CODE: KTS-051
- Micro-controller based electronic twist tester is used for accurate measurement of TPM (Twist per meter) or TPI (Twist per inch) of the twisted yarn. Suitable for S/Z type of twisted yarns, multi as well as single filament yarns.
- Yarn test length: 25mm to 500 mm adjustable (metric unit)OR 2 to 20 adjustable (imperial unit).
- Suitable for S/Z type of twisted yarns, multi as well as single filament yarns.
- Electronic sensor for sensing zero (starting) position
- Tension weight up to 100 Grams adjustable in step of 5Grams
Specification:
Yarn Test Length | : 50 mm to 500 mm adjustable (metric unit) Or 2" to 20" adjustable (imperial unit) : Test length adjustment by slider mechanism Reading is displayed directly in TPM/TPI. |
Range | Up to 9999 TPM or 99.99 TPI |
Resolution | 1 TPM or 0.01 TPI |
Elongation Range | + 110 mm or 4 Inch with tolerance of - 15 mm or 0.6 Inch for movement in other direction. |
Motor Speed | Up to 1500 RPM adjustable. Manual control of rotation is possible by hand. |
Clamps | Spring loaded clamps at both end of the instrument for easy clamping of yarn. |
Averaging | Reading of twenty samples can be stored and average TPM/TPI Value is calculated and displayed |
Display | 16 Digit Backlit LCD display to display specified Length Specimen No., mode of testing and TPM / TPI value. |
Supply | 230 V AC, 30 Watts. |
Size approx. | 1000 mm x 150 mm x 200 mm |
