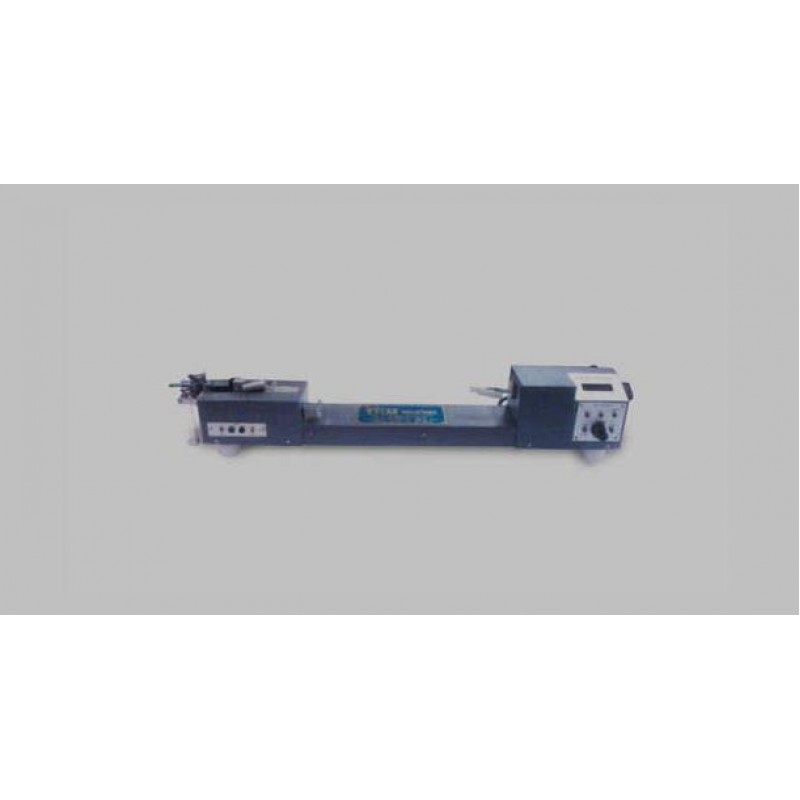

Electronic Twist Tester Model
Product Details :
"TT-MCT" Having the following specifications.
Yarn Length | 50mm to 500 mm adjustable(metric or 2" to 20" adjustable (imperial unit).Test length adjustment by slider mechanism. |
Reading | Displayed directly in TPM/TPI. |
Material | Suitable for S/Z type of twisted yarns, multi as well as single filament yarns. |
Range | Up to 999 TPM or 99.99 TPI. |
Resolution | 1 PTM or 0.01 TPI. |
Motor Speed. | Up to 1500 RPM adjustable. Manual control of Rotation is possible by hand. |
Clamps | Spring load clamps at both end of the instrument for easy clamping of Yarn. |
Averaging | Reading of twenty samples can be stored and average TPM/TPI value is Calculated and displayed. |
Display | 16 digit backlit LCD display to display specified length, Specimen No. Mode of testing and TPM/TPI value. |
Electronic Sensor | For sensing zero(starting position) |
Tension weight | Up to 100 grams adjustable in step of 5 grams |
Electric supply | 230V AC, 30 volts. |
Size | 1000 mm x 150mm x 200 mm (approx) |
"TT-MCT/F" having the following specifications.
Yarn Length | 250mm or 10"fixed length. |
Elongation Range | +40mm with tolerance of – 5mm for movement in other direction. |
Size | 1000 mm x 150mm x 200 mm (approx) |
All other specifications are same as per Model “TT-MCT”
