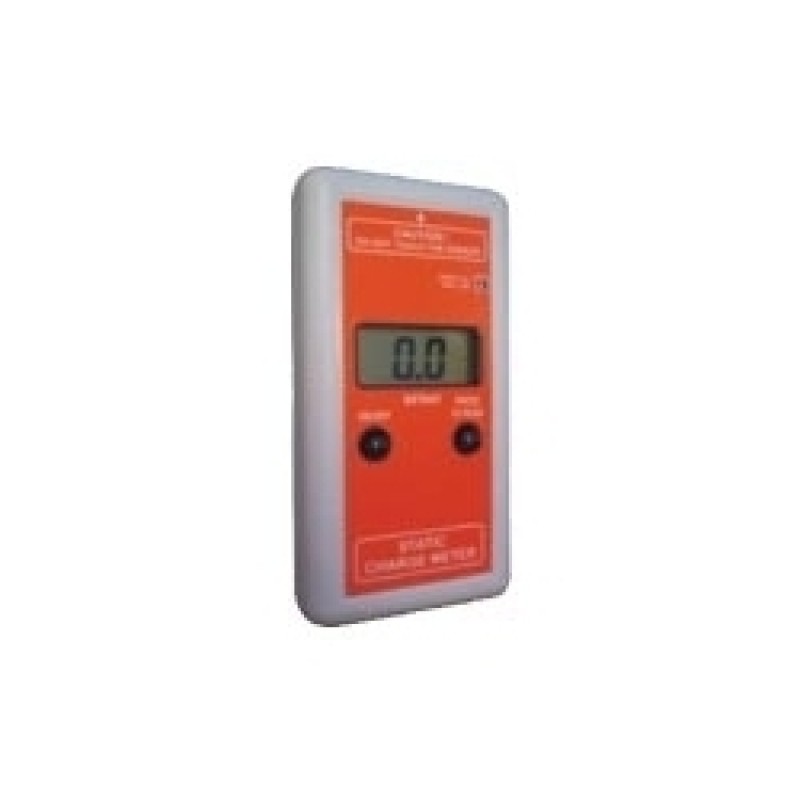

Digital Static Charge Meter
Product Details
Reliable on-the-spot measurement of static charges has been easier than with the portable SCM-02. Hand-held, yet highly accurate and low drift, the SCM-02 answers three basic questions:
- Is static present and on what Surfaces, Materials or people?
- How much static?
- What is the polarity of the Charge?
The instrument is ideal for use in such static sensitive environment as electronic component production and assembly areas, clean rooms, computer, medical and R&D Laboratories, surgical rooms, medical device manufacturer, printing press, packing and production lines, etc.
The unit gives direct readings of electrostatic potentials on any surface, when held at a distance of 1 Inch. However, virtually any electrostatic potential can be measured by proportionately increasing the distance from the meter to the charged object.
Specifications:
Measurement Range | +/- 10kV @ 1 Inch (Accuracy: +/-10%) +/- 20kV @ 2 Inch (Accuracy: +/-15%) +/- 30kV @ 3 Inch (Accuracy: +/-20%) |
Resolution | 100 Volts |
Indication | 2 ½ Digit LCD Display |
Test actuation | Press to read |
Power supply | 9 Volt Battery |
Battery Status | By Dual color LED |
Calibration | Recommended every 12 months |
Dimensions | 135 x 70 x 25 mm |
Weight | 150 Gms |
Warranty | 12 Months |
Accessories | Carry case |
