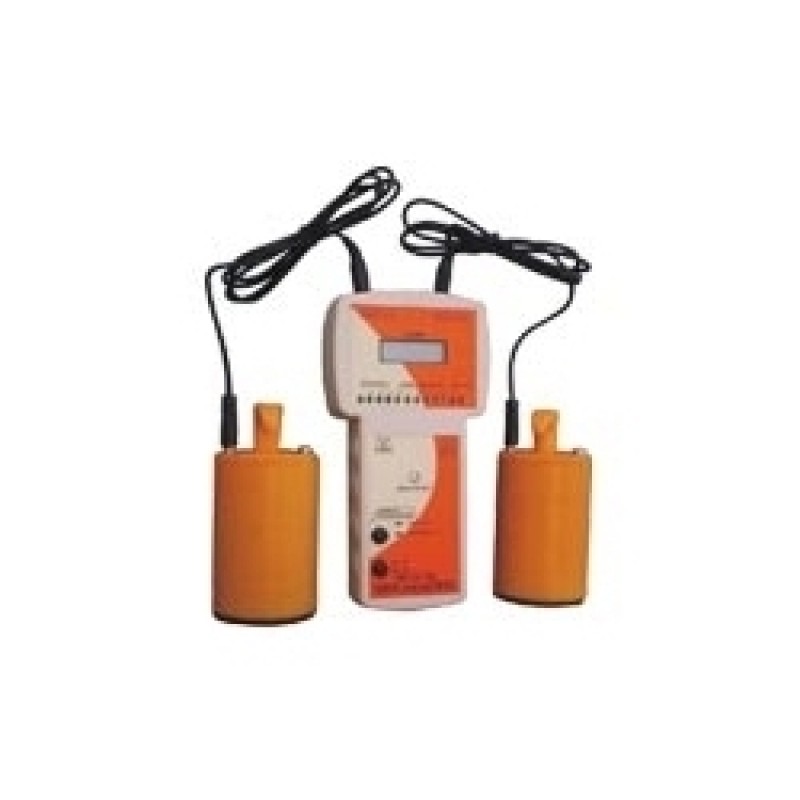

Led Surface Resistance Meter
Product Details :
The surface resistivity meter measures both surface resistance and resistance to ground. This is meant for use in evaluating a wide variety of esd protective materials including table mats, floor mats, and hard esd-laminates. It measures and displays surface resistivity as well as surface to ground and point-to-point resistances. These measurements can be done in the range of <10e3 to >10e12 ohms by using two 2. 5-kilo (5lb) heavy electrodes or through internal probes. To check whether surface resistivity is in accordance with association standards s-4. 1.
Specifications:
Measurement range digital display range | < 1x10e3 to >1x10e12 ohms & ohms/sq |
Led decades display range | < 10e3 to > 10e12 ohms & ohms/sq |
Digital measurement accuracy | 0. 1 decade |
Led measurement accuracy | 0. 5 decade |
Digital display | Alpha numeric lcd |
Led display indication | By different color led’s |
Open circuit voltage | 100v +/- 5% |
Battery status indicator | By dual color led |
Test actuation | Press to read |
Power supply | 10. 8v rech-battery |
Dimensions in mm | 210 x 110 x 40mm |
Weight | 500 gms |
Calibration | Calibration recommended once in 12 months |
Warranty | 12 months |
Optional | Testing & measuring probes esd audit kit |
Accessories | External cable, 12v charger & carry case. |
