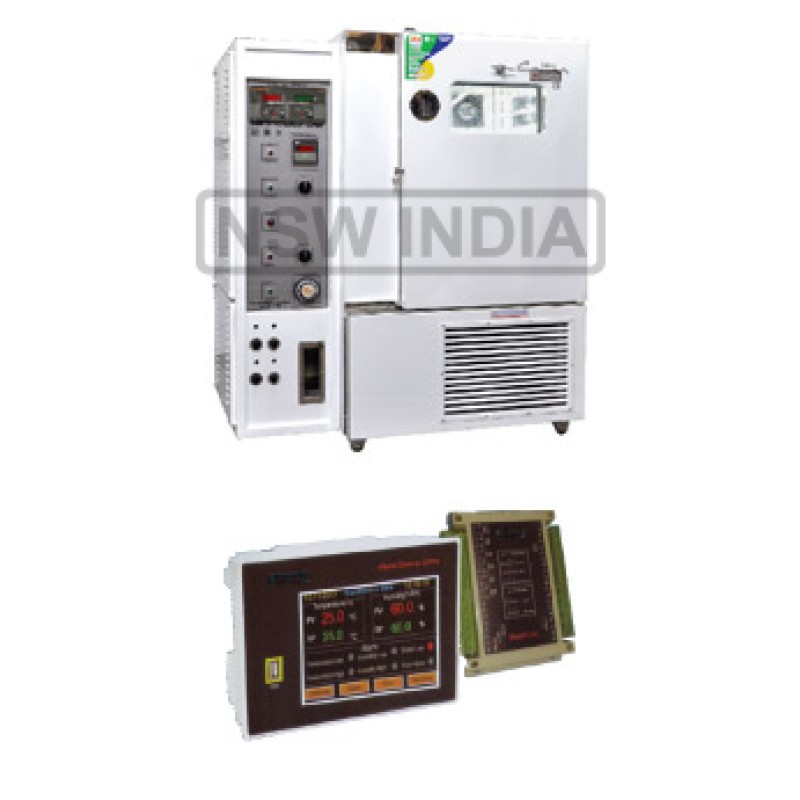

All purpose chamber confirming to stricter specifications, specifically designed for drying environment of plant and animal growth, investigation of vapour, proofness of packed materials, determinations of di-electric strength, insulation tests of electrical components and many other tests requiring an atmosphere of controlled temp. and humidity. The sturdy double walled construction provides a pleasing get up.

The interior walls are made of heavy gauge Stainless Steel 304 Qlty. The exterior is made of heavy gauge Mild Steel finished in Epoxy Powder Coating. Insulation of 63mm by puff. The door is of massive construction having window and seals against atmospheric infiltration by resilient asbestos and rubber gasket.

The temperature can be controlled from 10 ºC to 60 ºC +/- 2 ºC and humidity 55% to 95% +/- 5% is controlled by an automatic microprocessed Electronic Controller with digital display of temperature and humidity.

Temperature below ambient is created by a hermetically sealed compressor (CFC FREE) complete with its all accessories provided at the bottom of the unit. Two water tank of Stainless Steel 304 qlty. have been provided in the cabinet. The humidity inside the chamber is created natural mist through heat, vapour with suitable automatic voltage stabilizer.  Heated water vapours are also circulated   through blower. With servo Voltage Stabilizer. We have provided and exhaust fan in the control panel to take out heat  as well as humidity with inside panel for the safety of the components inside on control panel. and extra water storage tank has been provided at the top which should be filled by  distilled water only for the long life of heating element and lower water tank.

SIZE INSIDE CHAMBER (STAINLESS STEEL 304 QLTY)

Features:

• Universal inputs for temperature & % RH in-built Ecitation voltage for external transmitters.
• Independent self tune PID control loops for temperature & % RH
• SSR drive control outputs for heating, hmidification, compressor, alarm & safety
• Compressor switching with programmable time delay
• PV or SP based compressor switching strategies
• Two separate, user configurable, PID Control zones, compressor–on & compressor-off.
• Smart water level detection with alarm
• Accurate automatic water filling mechanish
• RTC based illumination control system
• Intelligent door-open sensing & alarm
• Comprehensive alarms and safety set-points
• PV and even date recording
• PC configurable header/footer for printer interface

Highlights:

• 4.3” or 7.0” TFT colour screen with touch panel In-built huge memory of data logging
• 8/16 channel uniformity logger interface
• Serial port for PC interface
• Ethernet / Wi-Fi LAN Connectivity
• USB port for printer & pen-drive interface
• 21 CFR complaisance PC software
• Integrated web based software
• Standby refrigeration control module
• GSM interface module for SMS on alarms
