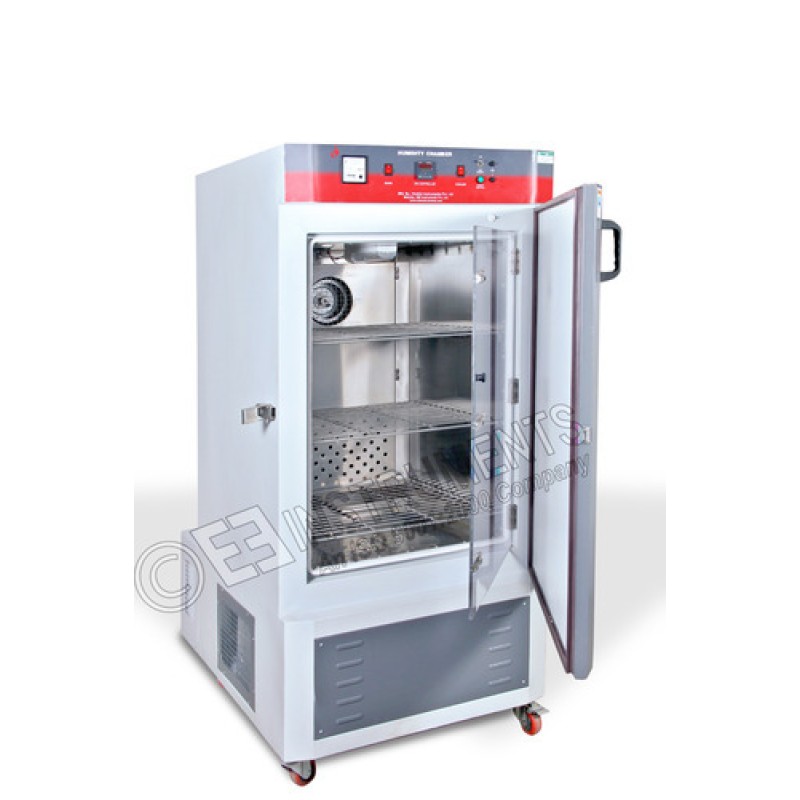

Click Image for Gallery
Construction Details:
- Designed as per ICH guidelines to meet, WHO and USFDA requirement
- Fulfills storage conditions of 25° C - 60% RH, 40° C - 75 % RH, 30° C - 65% RH, 25° C - 40% RH, 30° C - 35% RH
- Temperature Accuracy : ± 1.0° C
- Temperature Resolution : 0.1° C
- Humidity Range : 30% RH To 80% RH,
- Humidity Fluctuation : Maximum 3% RH
- Chamber illumination : With 2 or 4 LED lights for lesser power consumption
- Compressor Watts : 1.5 KW
- Dry Heater Watts : 2.0 KW
- Wet Heater Watts : 3.0 KW
- Overall Power Consumption : 2.5 KW Per phase (For 3 - phase connection)
- Power consumption : 7.0 KW (For single phase connection)
- Capacitance type Humidity sensor enables direct display of RH and temperature
- (ASI - PLC) Application Specific Integrated Programmable Logic Controller with Touch screen HMI for precise control of temperature and humidity parameters - fully protected with password
- Colour graphic HMI System
- Auto change over to standby systems through PLC - Change over from Main set to Redundant Set and vice versa
- Multipurpose Temperature and humidity logger with printout facility
- In - built data logger for selected number of channels (4, 8, 12, 16, 32) within the LCD colour Graphics controller
- ASIC system with HMI having capacity of inbuilt storage upto 2 GB - 38,00000 storage readings (Nearly unlimited storage) - this is the controller storage capacity
- 21 CFR compliance software - part 11 USFDA guidelines
- 10 - 20 different Humidity chambers can be connected to EIE - 21 CFR Compliance software
- Highly ergonomic door handle with unique key lock
- Built up with 80 mm puff Insulation for maximum thermal protection.'
Control Accessories:
Circulation: Forced air circulation for uniform temperature by suction blower fitted with turbo F.H.P. Motor
Front Panel: Mains rocker switch, Cooling / Heating rocker switch, Micro - Controller, Ampere Meter, toggle switches for high & low position of heater fuse.
Illumination: With fluorescent light when door opens
Specifications:
- Range: 10 degree centigrade to 60 degree centigrade
- Accuracy: /- 1 Degree centigrade or better
- Controller: Micro-Controller PID Type
- Display: Digital LED
- Sensor: Pt - 100
Additional Information:
Item Code: EIE-106RMC
Port of Dispatch: Ahmedabad Airport
Production Capacity: 400 per annum
Delivery Time: 4-6 weeks after receipt of firm order
Packaging Details: Plywood packing
