Click Image for Gallery

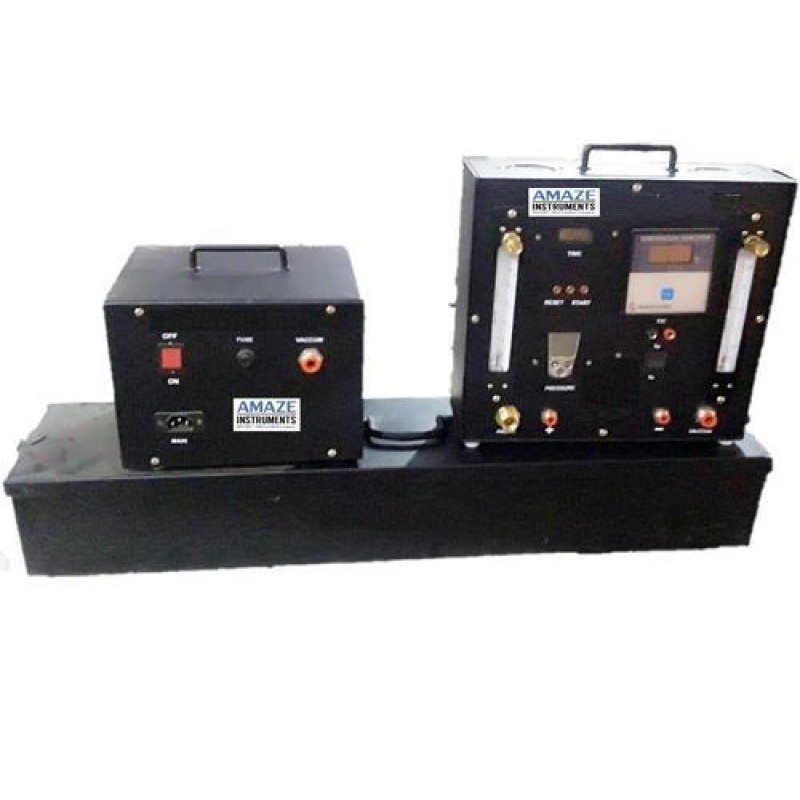

Stack Sampler
Product Details:
Minimum Order Quantity | 1 Piece |
Model | AI-SS26 |
Brand | AI Scientific |
Application | Industrial, Laboratory |
Features :
- Stack Temp Range: Ambient to 600 deg C on a Digital Pyrometer.
- Stack Velocity Range: 3 to 60 m/sec
- Thermocouple: T/C sensor in SS 304 casing.
- length of insertion: 0.6 m with 2m long cable.
- Manometer: Digital with 01300 mm of H2O range
- Pitot Tube: Calibrated S type fabricated SS 304, 0.6m extendable to 1.2m
- Particulate Sampling: 2 -30 lpm collection on thimble type filter up to 0.3 micron rating.
- Gaseous Sampling: 0.2 - 3 lpm collection in a set of Borosilicate glass impingers.
- Rota meter: Plastic body with 2% FSD accuracy, 0 - 30 lpm for PM and 03 lpm for GAS.
- Sampling Probe : Made from SS 304 tube, 0.6 m length extendable to 1.2 m.
- Filter Holder : Fabricated from SS 304 tube suitable to hold either cellulose filtration Thimble (size 28mm lD X 100mm long) or glass micro fibre thimble (size 19mm lD X 90mm long).
- Nozzles: A set of 3 stainless steel nozzles.
- Digital Clock: 0-60 minutes, 1 second readout with start and stop switches.
Request
Additional Information:
- Pay Mode Terms: T/T (Bank Transfer)
