Button Snap Pullout Tester
Product Specification :
- Dimension(L*W*H) : 9.2 Inch 11 Inch 25.5 Inch Inch (in)
- Machine Weight : 23 Kilograms (kg)
Product Description

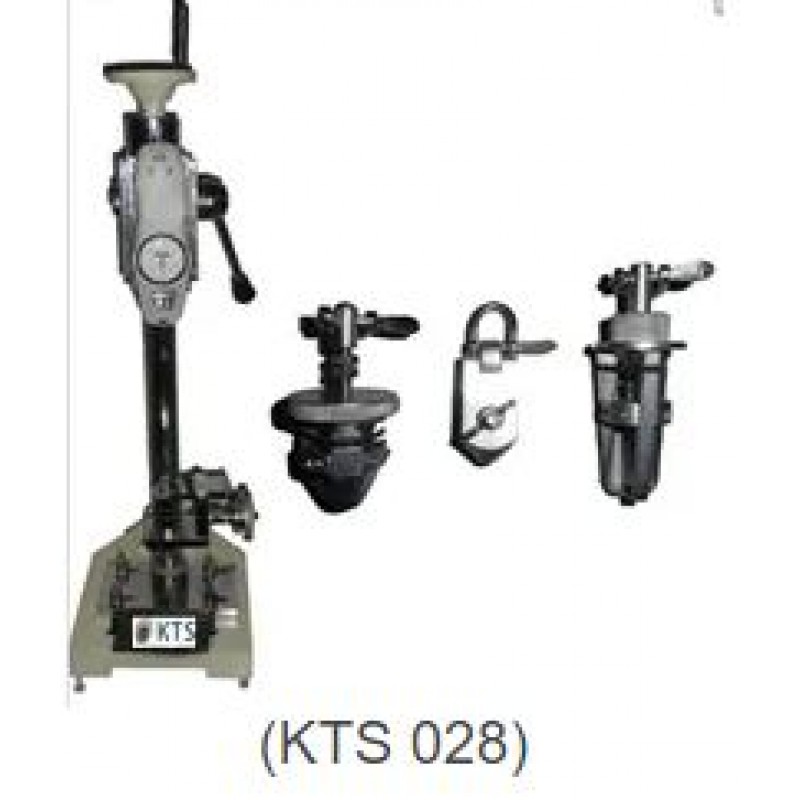

Button Snap Pullout Tester - ITEM CODE: KTS-028
- Capacity 30kgf & Least Count 250gms.
- To assess the snap attachment strength of button which is very important to design and manufacturer of garments of infants and children's wearing. The measurement of the uniform force applied to the snap attachment shall be recorded by means of a force-measuring device.
SALIENT FEATURES:
- Specially designed equipment, to determine the pulling strength of any type of button & snaps used in garments as per American and European standards.
- Imada JAPAN force gauge with maximum capacity 30 kgf with least count of 250 gm. Max.jaw separation: 210 mm
- Specially designed four different types of jaws supplied to grip different type of buttons & snaps.
- 15 lb calibration weight supplied as an accessories to calibrate the Instrument
- Four different types of jaws supplied to grip different type of buttons & snaps.
- Supplied with all accessories along with 15lbscalibration weight to calibrate the instrument
- Standards: ASTM D 4846
Dimension:
Length | Depth | Height |
9.2 Inch | 11 Inch | 25.5 Inch |
Weight Aprox: 23 Kg.
