Filling device for Wine:
SFD

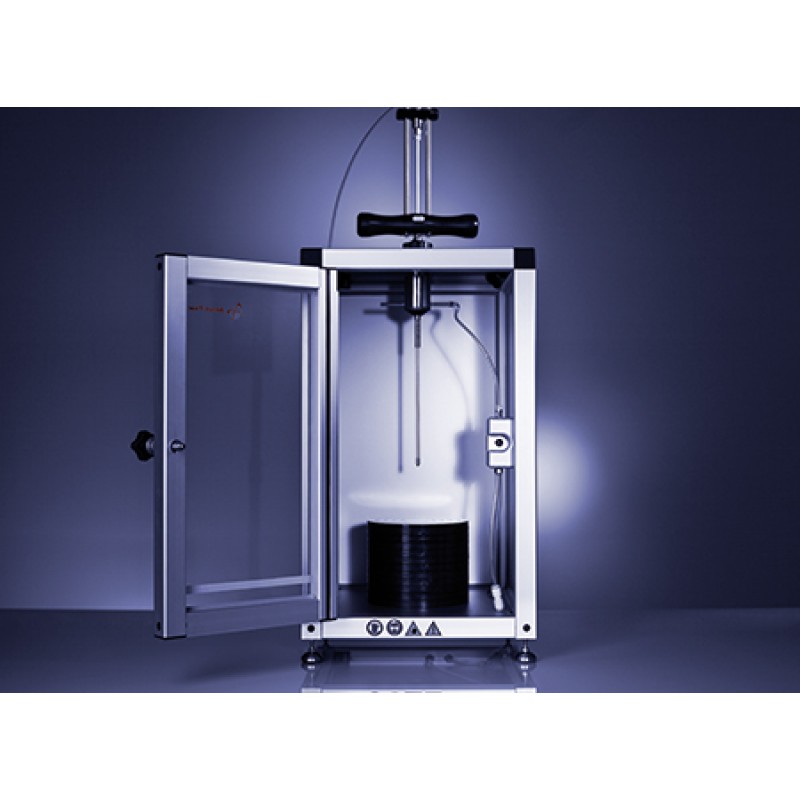

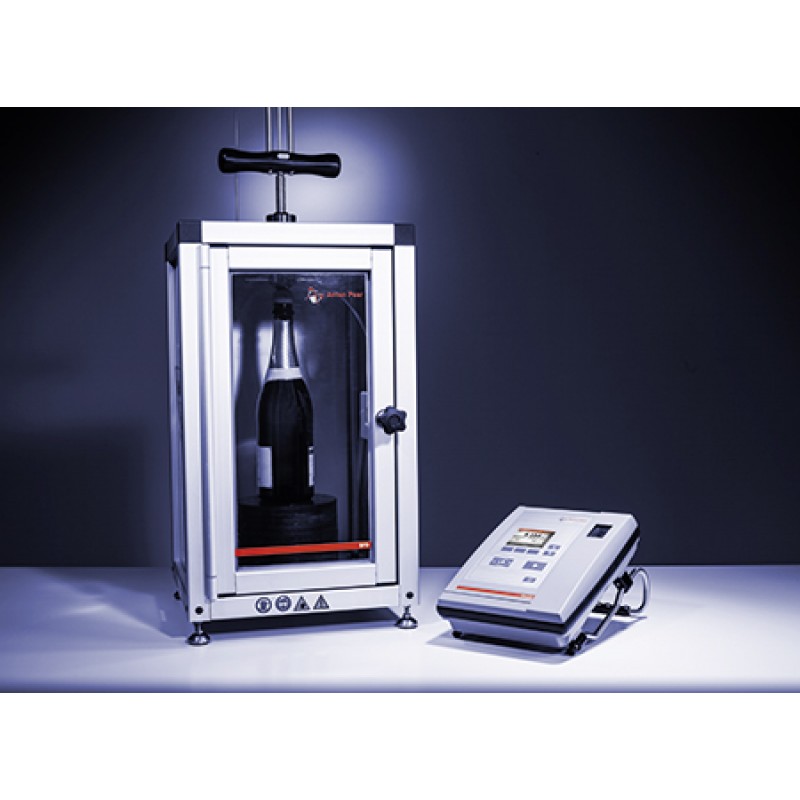

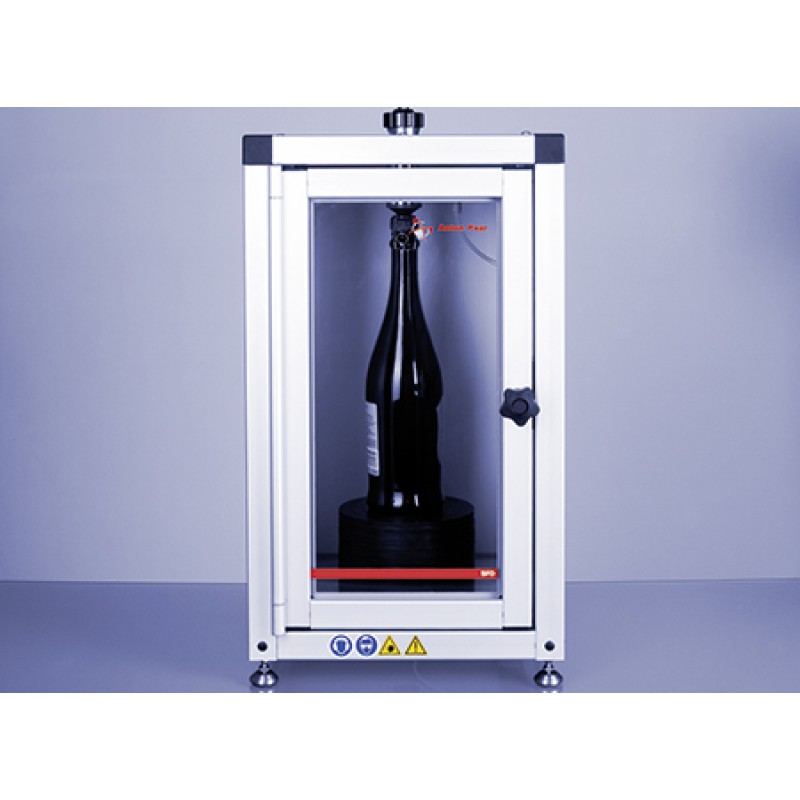

The SFD Sparkling Wine Filling Device transfers sparkling wine or wine directly from a closed bottle into the measuring chamber of a measuring instrument. The SFD Filling Device is equipped with a drilling device that penetrates traditional corks and most plastic corks.
Key Features :
Filling directly from corked bottles
- For filling sparkling wine or wine directly from bottles into a measuring instrument without loss of CO2
- Adjustable to fit all bottles sizes
- Also for wine bottles
- For pressures up to 7.5 bar relative ± 0.5 bar (109 psi ± 7 psi)
- Quiet, clean, no waste
- For measuring dissolved carbon dioxide in wine and sparkling wine
Versatile and safe
- Works for traditional corks and most kinds of plastic corks
- A safety housing provides full protection for the operator
Technical specifications :
Compressed air | ||||
---|---|---|---|---|
For sparkling wine
| 7.5 bar relative ± 0.5 bar (109 ± 7 psi) | |||
For wine | 3 bar relative ± 0.5 bar (44 ± 7 psi) | |||
Maximum allowed bottle volume | Up to 1.5 L | |||
Dimensions (L x W x H) | ||||
Without sample tube | 320 x 370 x 550 mm (12.6 x 14.6 x 27.2 inches) | |||
With sample tube in the highest position | 320 x 370 x 690 mm (12.6 x 14.6 x 27.2 inches) | |||
Weight | 12.3 kg (27.1 lbs) |
