Flexural Testing Machine (Hand Operated)

Flexural Testing Machine (Hand Operated)

Product Details:

Display Type

Analog

Pressure

0 to 100 KN X 1 KN

Automation Grade

Manual

Capacity

100 KN

centre distance between rollers

600 mm

Beam size

100mm x 100mm x500mm

Pressure Gauge Diameter

150 mm

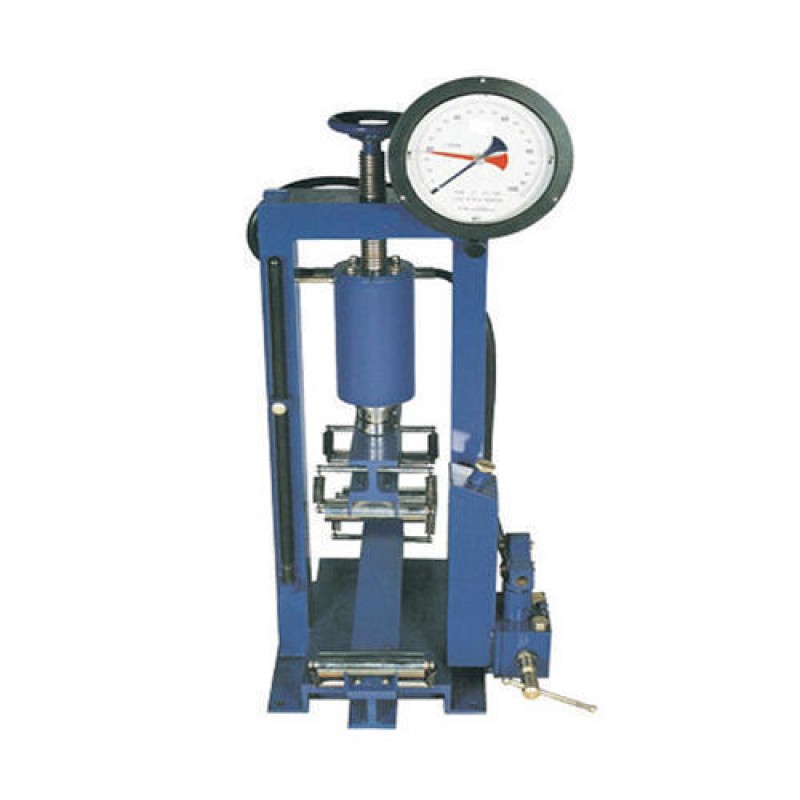

The machine consists of a hand frame. The lower platen has two rollers the distance between which is adjustable For 150 mm x 150 mm x 700 mm beam, the center distance between rollers is 600 mm, while it is 400 mm for beams of size 100mm x 100mm x500mm. The upper platen has also a pair of rollers whose distance is adjustable. It is 200mm centre to centre, for 150mm x 150mm x 700mm size beam and 133 mm for 100 mm x 100 mm x 500 mm size beam. A pressure gauge to indicate load is fixed on the load frame. A small pumping unit is attached to the load frame. The total capacity of the machine is 100 KN and a 150mm dia pressure gauge 0-100 KN x 1 KN is fitted on the machine Since this is a hand operated the lightweight machine, it is useful for field laboratory also.
