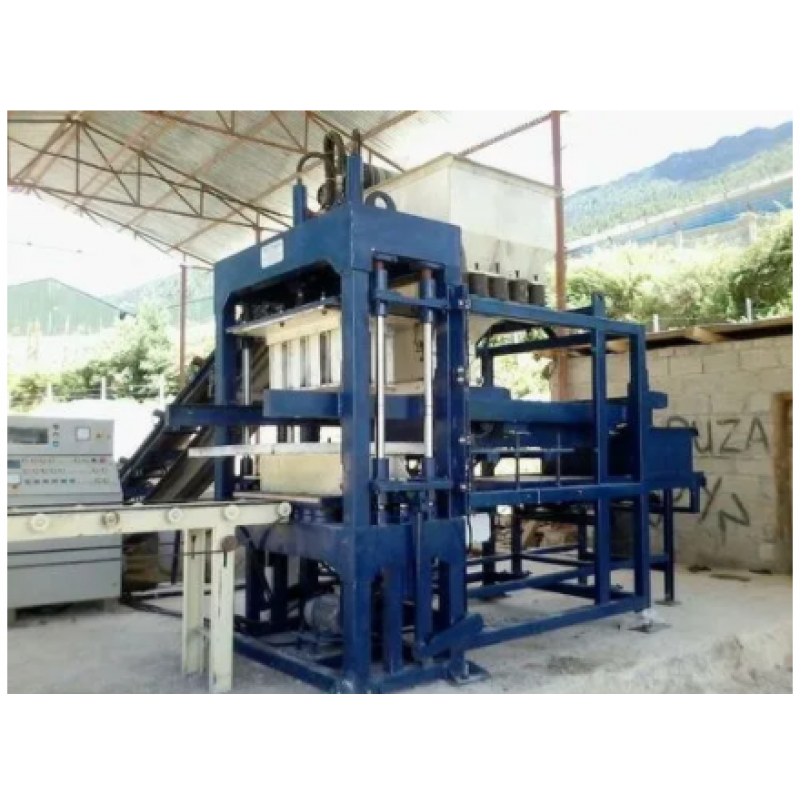

CONCRETE BRICK MAKING PLANT

Product Details :

• General Use Making Plant
• Capacity 500-1000 T/hr
• Automatic Yes
• Color Purple
• Warranty Yes
• Supply Ability : 1 Unit Per Month

Product Description :

With having years of business experience, we are engaged in offering wide assortment of Concrete Brick Making Plant. This ergonomically designed machine has been developed by using latest equipment's that are in sync with industry specified standards. This plant is required for conducting various heavy duty works. Our Concrete Brick Making Plant is preferred for its unique strength, stable operation, rust and abrasion proof design, minimum maintenance cost and trouble free operation.

Other Details :

Features :

• It consists of material feeder with self regulating mechanism and its is known for its PLC operated hydraulic function
• The automatic pallet feeder of this plant is regulated by PLC and is driven by hydraulic system
• The produced bricks are transported by its conveyor
• Its automatic color feeder is equipped with hopper and color mixer
• Energy efficient operation
• It does not emit any dust
• Accurate dimension and well built structure
• Exceptional electricity conductivity
• Advanced ,operation controlling system
• Minimum frictional co-efficiency rate and low wear rate
• Uninterrupted operation

Details :

• This plant uses 10HP 3PH electric motor of Havells/Crompton/Kirloskar with power Pack (Boss & Valve of Yuken/Poly Hydran/Pump of Poly Hydran)
• Its electric panel is designed with PLC operated Messung System, hopper, limit switch or proximity sensors and oil tank with 300 liters of storage capacity
• Honed tube fabricated cylinder, hard chrome plated piston. The offered plant is capable fo producing 8,000 to 10,000 bricks per shift
• Its automatic material feeder is regulated by PLC and driven by hydraulic system
• Conveyor for transportation of manufactured bricks

PAN Mixture :

The 'REVA' pan mixer with 300 kg mixing capacity is attached to two heavy duty C.I, rollers and these rollers are connected to easy to change bottom wear plates. These bottom wear plates are connected with  discharging and mixing blades that consist of alloy steel made tips and premium quality worm reduction gear box of Roto-Reva. This worm reduction gear is driven by 7.5/10 H.P./electric motor belonging to ABB/Crompton/Havells/Kirloskar brand with starter.

Conveyor :

The 'REVA' belt  conveyor is used for loading and unloading of mixing material of pan mixer. This type of conveyor is driven by Crompton/Havells electric motor with 3 H.P capacity and is attached to a starter equipped gear box. The conveyor is connected to nylon conveyor belt with rubber made surface and it rotates on frictionless idlers.

Finished Bricks Moving Conveyor :

The 'REVA' Pallet Conveyor is instrumental for forward movement of bricks on pallets and it is controlled by ½ H.P. Geared Motor.

Mold :

Each stroke of its mold can develop six bricks

Pallet trucks :

Two 'REVA' pallet trucks are attached to pneumatic tyres and these are connected to manually operated dragging system with 1000 kgs of lifting capacity.
