FLY ASH BRICK PLANT RBM-18
Product Details :
- General Use Brick Plant
- Automatic Yes
- Feature High Durability
- Color Blue
- Warranty Yes
- Supply Ability : 1 Unit Per Month
Product Description :

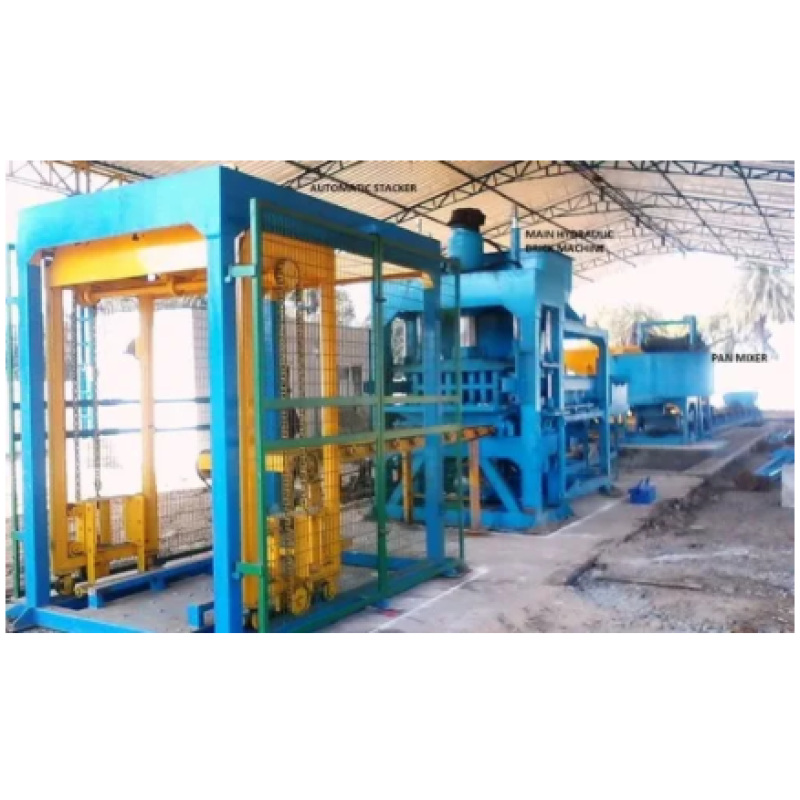

FLY-ASH/CONCRETE BRICK /BLOCK MAKING YDRAULIC PRESS FULLY AUTOMATIC M/ C. (RBM-18)
Electric Motor 15HP 3PH of Crompton / Havells, Complete With Power Pack (Pump of Douty/Boss &Valve of Yuken/ Poly Hydran . Electric Panel (With Messung Systems PLC,) Limit Switch/Proximity Sensors, Hopper, Oil Tank Capacity 400 Lit. Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity 22,000 TO 23,000 Bricks/Shift of standard size. 5 H.P. Mould Vibrator.
PAN MIXTURE :
1 No. “Reva” Pan Mixer having capacity of 1000 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge blades,having special alloy steel tips,complete with quality Worm Reduction Gear Box Elecon/Radicon make powered by 30 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
CONVEYOR :
1 No. “Reva” Belt Conveyor for loading and unloading the material of the Pan Mixer of app. 20 ft.and powered by 3 H.P.Electric Motor of Kirlostar/Crompton make fitted with quality gear box with starter.The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers.
MOULD :
(18 Cavity). 18 Bricks/Stroke with Frog (Name in Brick).
Pallet Trucks :
- 3 Nos. “Reva” Pallet Trucks are fitted with 03 nos. pneumatic tyres and manual dragging arrangement with lift capacity of 1000 Kgs.
- Automatic Material Feeder, Hydraulic Operated
- Automatic Pallet Feeder, Hydraulic Operated
