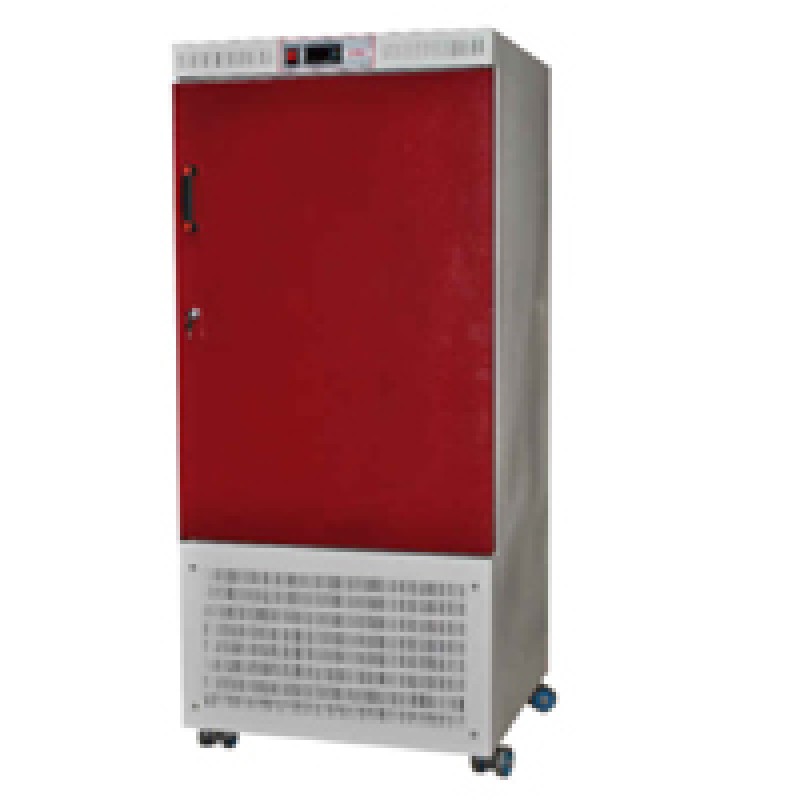

PLASMA FREEZER REW-142
Product Details :
Micro Controller Based Plasma Freezers are designed for quick freezing storing of plasma and related blood components at desired temperature as low as 35oC. The system includes controller with digital temperature display, temperature circular chart recorder, ON/OFF, temperature alarm system with adjustable high/low alarm limits, and visual alarm on temperature deviation. These Plasma Freezers are specially designed for blood and research laboratories.
CONTRUCTIONAL AND SALIENT FEATURES
- Inner chamber made of stainless steel (SS-304) and
outer chamber made of mild steel duly powder coated.
- Foamed in place CFC Free PUF insulation ensure
temperature stability and reduced energy temperature.
- Keyed door lock for improved security with magnetic
door gasket.
- Stainless steel plasma basket.
- The cooling is affected by hermetically se aled CFC
FREE ECO FRIENDLY COMPRESSOR.
- Precise control of temperature by using
micro-controller based temperature controller.
- Audio visual alarm if the temperature deviates from
the pre-set temperature.
- Caster wheels for ease of mobility.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATION
Control System | : | Micro controlled based temperature indicator cum controller with digital display and PT 100 sensor. |
Alarm | : | Audio Visual Alarm if the temperature devices from the preset temperature. |
Temperature Recorder (OPTION) | : | 7 days circular chart temperature recorder |
Refrigeration System | : | Hermetically sealed CFC Free Emerson/Danfoss Compressor. |
Trays | : | Specially designed stainless steel plasma basket. |
Insulation | : | 3'' thick CFC Free PUF insulation ensures temperature stability and reduced energy consumption. |
Safety Features | : | 180 sec. compressor 'ON' dealy timer to safe guard the compressor. |
Power | : | Works on 230 V AC single phase 50 Hz. |
MODEL | #REW-4 | #REW-6 | #REW-10 | #REW-12 | #REW-15 |
Dimension Inner (WxDxH) (in mm) | 455x410x610 | 505x415x830 | 570x550x875 | 650x580x900 | 700x640x900 |
Capacity | 112 ltrs | 171 ltrs | 280 Ltrs | 340 Ltrs | 420 ltrs |
No. of Bags | 75 | 135 | 245 | 300 | 400 |
Temperature | -35oC | -35oC | -35oC | -35oC | -35oC |
Imput Voltage | 230 V AC | 230 V AC | 230 V AC | 230 V AC | 230 V AC |
Servo Stabilizer | (4KVA) | (4KVA) | (4KVA) | (5KVA) | (5KVA) |
