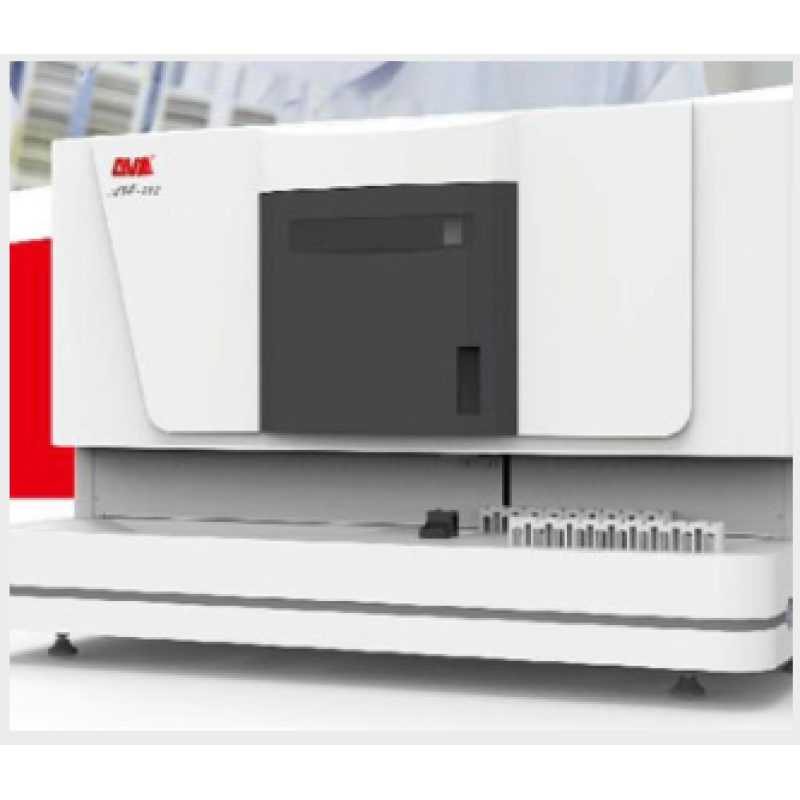

AVE-772 Fully Automated Integrated
Model : AVE-772
Product Details :
SPECIFICATIONS :
- Throughput Chemistry 240T/H Microscopy 50-120T/H Chem+Micro 50-120T/H
- Min. sample volume: 5ml
- Sample preparation: Native sample
- Built-in barcode reader: Yes
- Counting Chamber: 3 channels
- Detection rate: >98% for sample at concentration of 5 cells/µ1
- Accuracy: -For chemistry measurement, comparing to reference solution, results are within tolerance of one level or no false positive and negative; -For microscopy measurement, >95%
- Repeatability: -For chemistry measurement, CV< 1 %; -For microscopy measurement, CV<7%
- Carryover: At concentration of 4600-5400 cells/µ1,<1 cell/µ1; At concentration of 9200-10800 cells/µ1, < 2 cells/µI
- Verification: Full-view field images+ segmented images
- Report: Comprehensive results with images and diagrams Sampler: Loading capacity of 60 samples
- Strip tank capacity: 200 strips
- STAT: Available Data interface: Bidirectional
- LIS/HIS connection: Available
- Computer: External
- Results storage: >200,000 results
- Dimensions: 825mmx647.5mmx514mm
- Weight: 75kg
