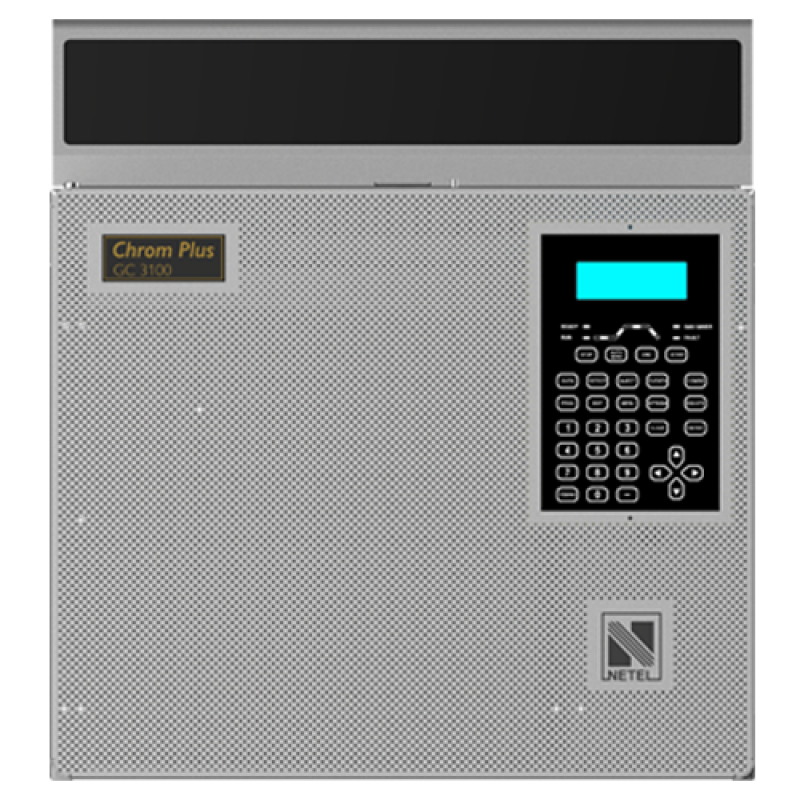

Chrom Plus GC-3000 Series

Gas Chromatograph

Product Details :

• Compact
• Cost effective
• Reliable
• Flexible configurations
• Packed and capillary columns
• Head space and automated gas sampling valves
• Micro controller based electronics.

Product Features :

• Dual Flame Ionisation Detectors for simultaneous analysis of organic chemicals
• Thermodynamically designed oven accommodates capillary and packed columns
• Up to 5 individually controlled heated zones; up to 450 deg C for better method control
• Optional accessories such as Head Space Sampler, Auto Liquid Sampler, Methaniser and
• Auto Gas Sampling Valve
• Advanced Chromatography Software – “CLARITY” from Data Apex
• Cost effective solution for QA/QC/Research applications
• Exceptionally compact size for better space utilisation

Technical Specifications

• Weight: 37kg (approx)
• Dim: D 535mm • W 515mm • H 450mm

COLUMN OVEN

• Size : H 290 mm x W 280mm x D160mm
• Volume : 13.8Ltrs
• Temperature :5°C above the ambient temperature to 400°C
• Ramp Rate :1°C & 70°C per minute
• No. of Ramps : 10
• Cooling Rate : 250°C to 50°C within approx. 5 minutes at 25°C room temp.
• Temperature Gradient : 2°C max (on 200 mm dia circumference,40mm from the sensor)
• Temperature Accuracy : + 1 % of set value from 50°c to 400°c
• Heated Zones : 3/5 Independent Heated Zones up to 400°C for individual control of Injectors, detector, oven

PNEUMATICS

• Metal diaphragms regulators for Carrier gas, fixed flow restrictors for Hydrogen, Air and Make-up gas. Pressure switch provided to cut heating of oven, injector, FID power in the event of carrier gas flow depletion
• Differential Flow Controllers for carrier gas for Packed Column
• Injectors: Pressure range O to 2 kg/cm2 Constant Pressure

INJECTION SYSTEM

• Single/dual Split/split-less (capillary column) injector or single/dual packed injection port
• Temperature range settable up to 400°C. in the steps of 1°C

DETECTOR

• High sensitivity flame ionization detector with auto flame ignition, Temperature range settable up to 400°C. in the step of 1 °C
• Dynamic range 107
• Minimum Detection Level equivalent 3pg C/sec of Dodecane
• Optional detectors: TCD, ECD, NPD

DISPLAY

80 Characters (20 X 4 lines) LCD

KEYBOARD

• 32 Keys for setting of the parameters & eight status LED indications including oven ramp status
• 4 External event control relay output
• 2 Logic inputs and 2 logic outputs

POWER REQUIREMENT

• 230V Ac ± 10V Ac

Product Applications :

• Solvents
• Organic chemicals
• Agro Chemicals
• Educational institutes
• Testing labs
• Packaging
