Description About Oxygen Detectors:-

The OXY-120-series is a battery powered Oxygen Detector. The Battery life is max. of 6 months with a rechargeable battery. OXY-120 comes with magnetic keys for programming parameters, also having MIN./MAX function, which can be seen by using magnetic keys without opening enclosure cover. In-built unit in LCD display to understand the display value for Oxygen Range, Min./Max indication for value displayed on LCD display.

Salient Features Of Oxygen Detectors:-

• 6 months battery life, Lithium ion, Rechargeable Battery
• Accuracy : ± 2% FS
• Cal due reminder
• Dual LCD Display for Oxygen indication with its units
• Min/Max function with its function visibility on LCD display
• IP66, rugged enclosure for harsh environment
• In built RTC display

Technical Specifications Of Oxygen Detectors:-

• Sensors : Electrochemical
• Indication:-
• Oxygen: LCD display for Oxygen indication with its unit ‘%V/V’;
• RTC: HH: MM, 12/24 Hours selectable;
• Min. /Max. Function: Function indication on display as per selection, either ‘MIN’ or ‘MAX.’
• Accuracy:
• Oxygen : ±2% of FS
• RTC : ± 59 seconds / month
• Range:-
• Temperature : -15°C to 55°C
• Humidity : Less than 90% RH non-condensing
• Display resolution : 0.01 % for O2
• Storage Temp. : 0 to 50°C
• Storage Humidity : 10 to 70 % RH, (Non condensing environment)
• Electrical:
• Battery: Lithium ion, Rechargeable Battery
• Battery Life: 6 months with 3 second sampling interval.

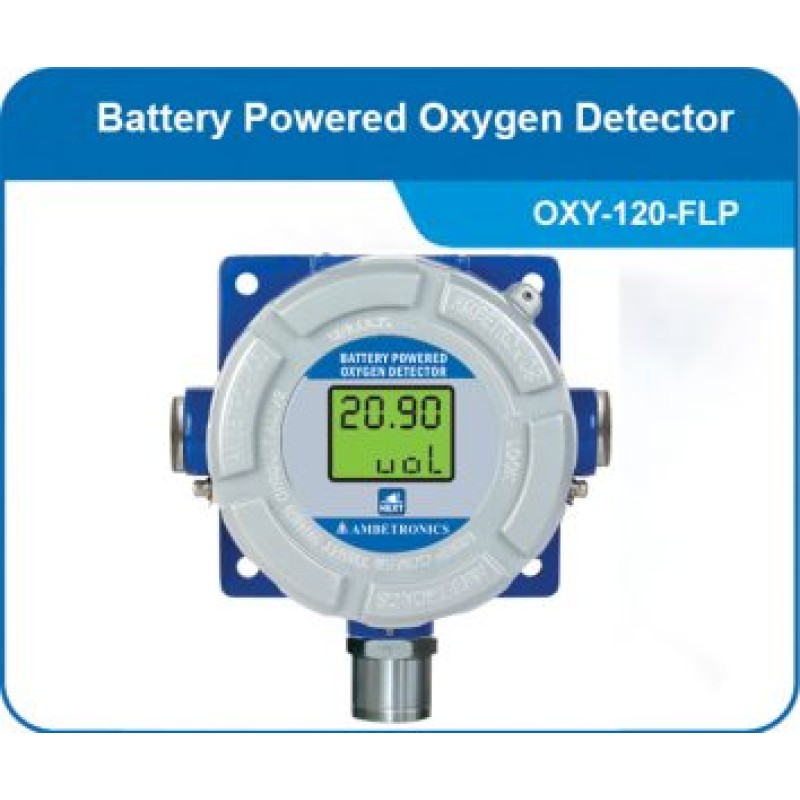

Flameproof Housing:-

• Protection class : IP-66
• Cabinet Material : Cast aluminium alloy, LM-6
• Double compression cable gland (Ex-
• Cable entry : Proof M20 x 1.5, ½ “NPT & ¾” ET-type
• Dimension : 195 mm(H) with sensor holder x 175 mm (W) x 125 mm (D)
• Mounting : Wall / Stand / Pipe
• Weight : Approximately 2.5g

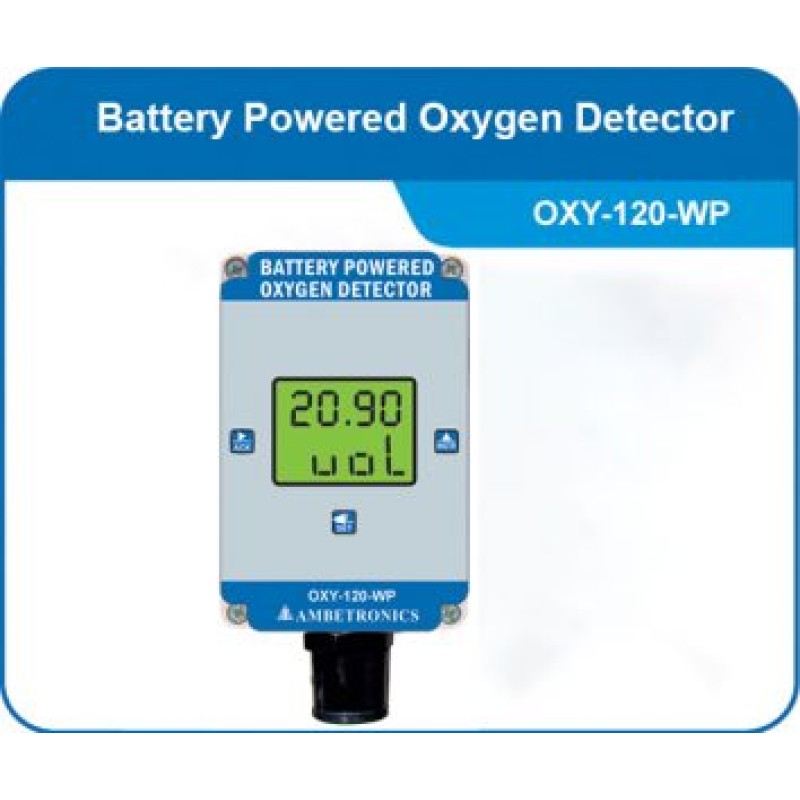

Weatherproof Housing:-

• Protection class : IP65
• Cabinet material : Polycarbonate, Grey Colour
• Cable entry : Thermoplastic cable gland (IP-68)
• Dimension : 160 mm(H) with sensor holder x 80 mm (W) x 55 mm (D)
• Mounting : Wall mounting / Stand mounting
• Weight : Approximately 370 grams

Applications Of Oxygen Detectors:-

• Clean room application in Pharmaceutical;
• Pharma Environments monitoring applications.
• HVAC (Heating, ventilation, Air conditioning, Cooling).
• Animal house clean room.
