Description:-

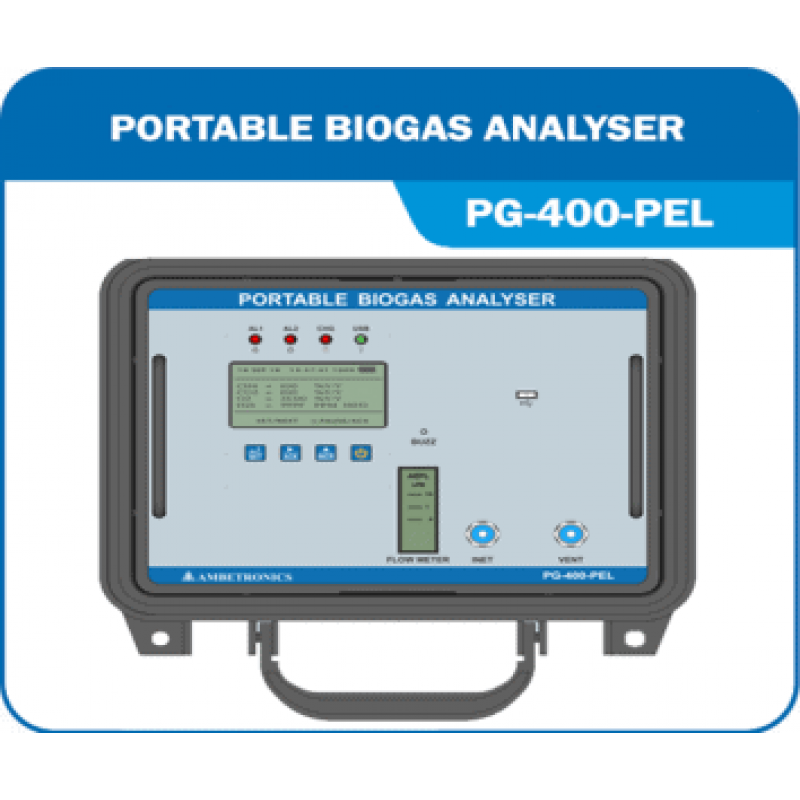

The Portable Biogas Analyzer PG-400-S-PEL is specifically designed for measurement and monitoring of biogas,  greenhouse and other gases like methane, carbon dioxide, hydrogen sulphide, etc. with concentrations of 4 gases displayed on LCD screen at a time.

Features:-

• Digital display of CH4 CO2, O2, H2S Concentration on the LCD display with backlight
• Plug-in Sensor provides a full year of warranted protection against hazardous gases
• Calibration due indication and alert
• Easy handling and programming with 3 keys and one key for power ON/OFF
• Password protected function menu
• Power supply with rechargeable battery
• LOW, HIGH, STEL and TWA configurable alarms with buzzer and vibrator alerts and LED indications
• Small, compact and light-weight
• Software calibration totally by using front keys
• Optional data logging facility with 50000 records & visible in ASCII format while downloading to PC via USB interface
• Battery status indication on the LCD display with battery charging LED indication and BAT low indication with Buzzer

Technical Specifications:-

• Detection Method : Suction
• Display : LCD with settable backlight
• Set Point : Two independent set points, AL1 & AL2 with LED indication facility only
• Setting : Setting by 3 keys on front panel i.e. (SET,SHIFT/ACK, INCR); Integrated Buzzer and Vibrator for Alarm Violation
• Sensor Technology : NDIR & Electrochemical
• CH4 (NDIR) : 0-100%V/V / 1 ±2%
• CO2 (NDIR) : 0-100% V/V / 1 ±10%
• O2 (Electrochemical) : 0-25% V/V / 0.01 ±2%
• H2S (Electrochemical) : 0-9999PPM / 1 ±2
• Battery : Li-Polymer, Rechargeable Battery 8 hours of runtime on full charge
• Charger : Input:100-240V AC, 50-60 Hz; Output:5V, 500mA Max
• Operating Temp : 0 to 50°C
• Storage Temp: 0 to 60°C
• Humidity : Below 95% RH, Non condensing
• Pelican Box Details: Size(external) : 270mm(L) x 246mm(W) x 174mm(H)
• Weight : 2kgs max

Applications:-

• Greenhouse gas measurement
• Biogas plant
• Farm digester gas monitoring
• Food processing biogas monitoring
• Waste water biogas monitoring
• Methane recovery
