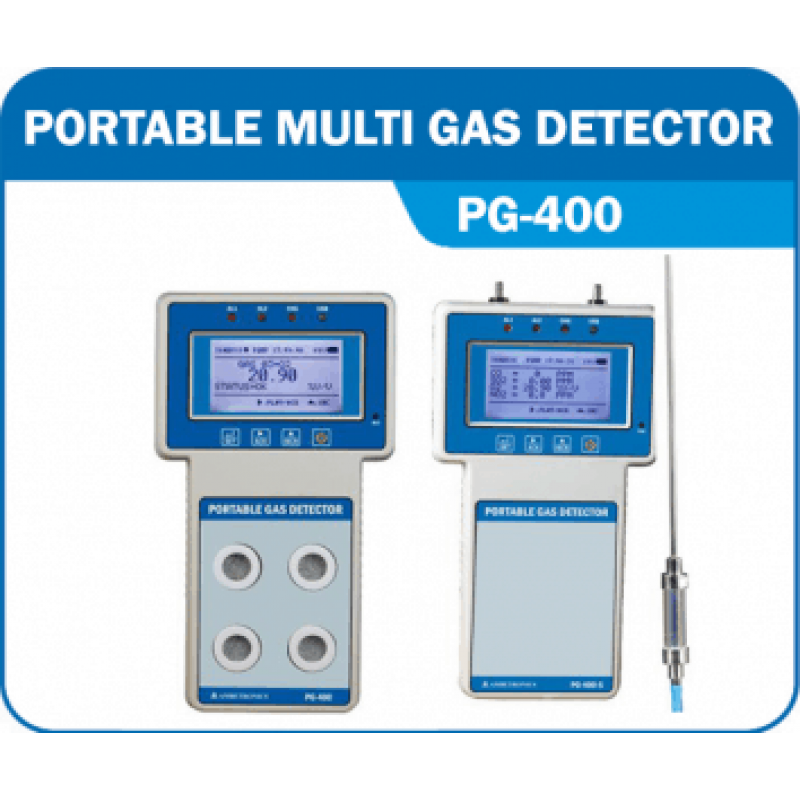

Description Of Portable Multi Gas Detector:-

These 4 Channel Portable Multi Gas Detectors can detect smallest leak of Oxygen, Toxic, combustible or VOC type gases with digital LCD for displaying concentrations of Four customized gas types at a time.

These Detectors come with on/ off option and have the feature of easy handling and programming with 3 keys and power supply with rechargeable batteries. They also have password protected function menu, plug-in sensor and built-in audio buzzer. These Portable Gas Detectors also have optional data logging facility with 50000 records which are visible in ASCII format while downloading to PC via USB interface.

Features:-

• Portable 4 channel gas leak detector detects smallest leak on service line and joints.
• Digital display of Multi Gas Concentration together or page wise on 128 x 64 mm Graphical LCD display with backlight.
• Plug-in Sensor provides a full year of warranted protection against hazardous gases.
• Gas concentration display in %V/V or %LEL or PPM for up to 4 gases simultaneously.
• Calibration due indication and alert.
• Password protected function menu.
• Power supply with rechargeable battery.
• LOW, HIGH, TWA & STEL configurable alarms with buzzer and vibrator alerts and LED indications
• Small, compact and light-weight.
• Ambient monitoring
• Software calibration totally by using front keys
• Battery status indication on the LCD display with battery charging LED indication and BAT low indication with Buzzer.

Applications Of Portable Multi Gas Detectors:-

• Refineries & Petrochemical plant including offshore drilling and plant shutdowns
• Waste water treatment plants
• Steel mills
• Pulp & Paper Industry
• Personal Monitoring
• Leak Detection
• Incoming Cylinder inspection
• Emergency response
• Equipment maintenance
• Pre-entry check quality control
• Process or emission gas analysis
