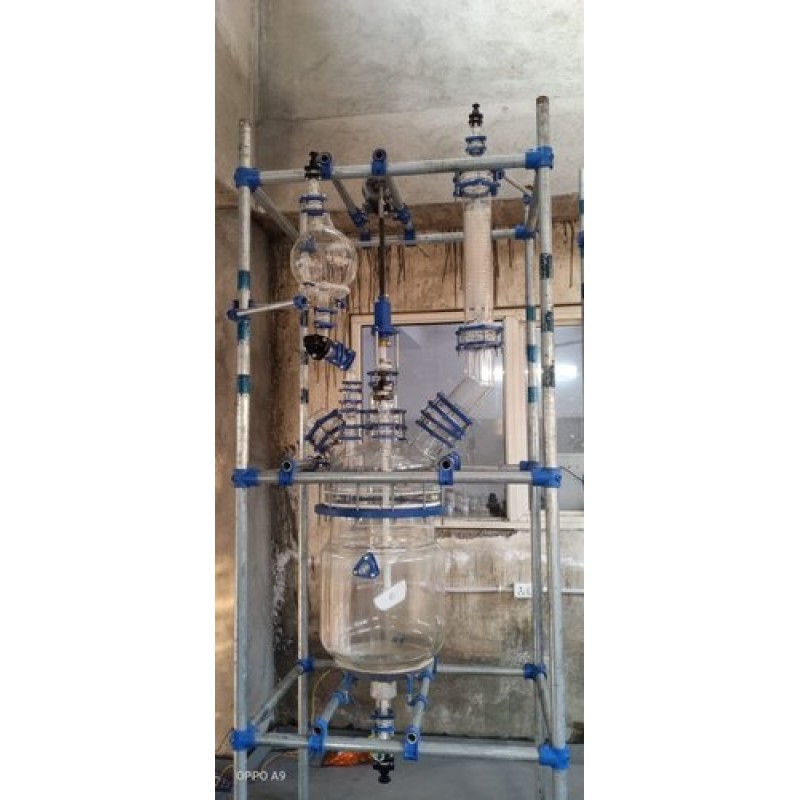

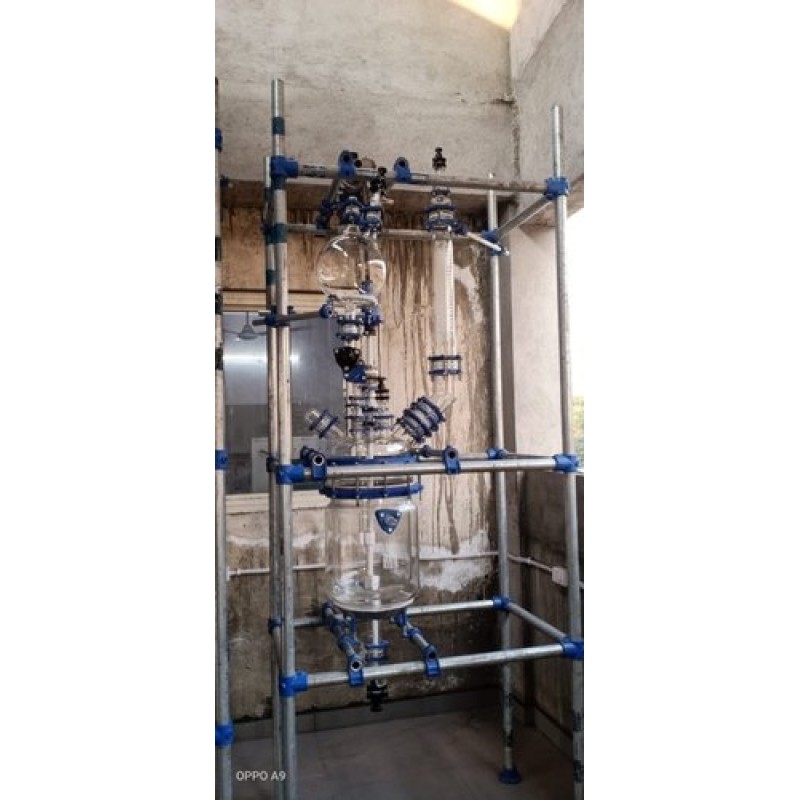

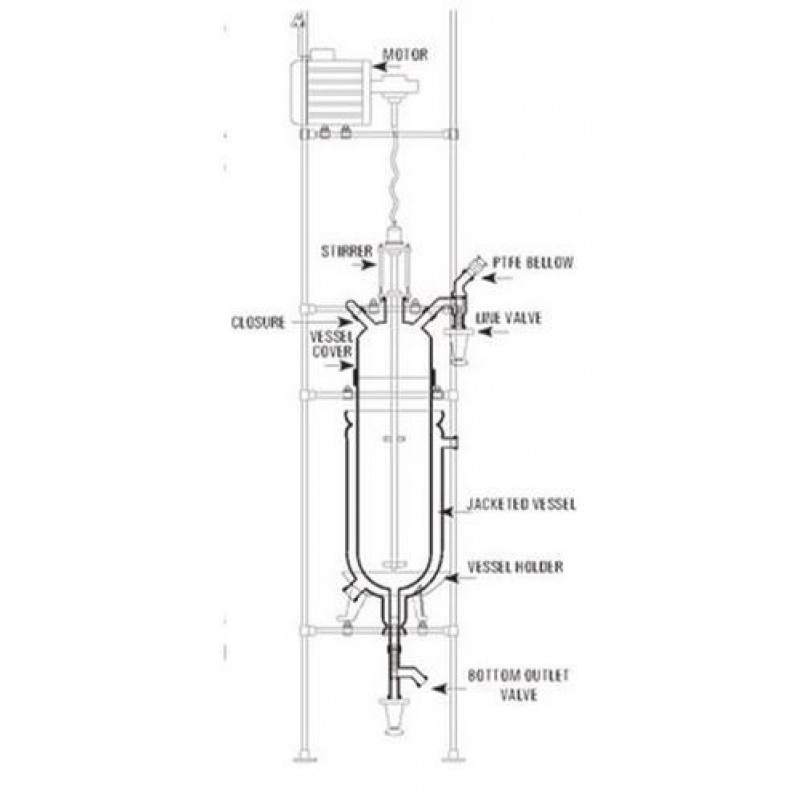

Glass Jacketed Mixing Reactor
Product Details :
Glass Jacketed Mixing Reactor
Glass Jacketed systems are available with different options, depending upon their size & their utility. Our Technical Department will glad to assist you in finding a suitable solution for your process requirement.
- Stirrer Drive: Non-Flameproof or Flameproof Motor, 192 RPM with speed regulator.
- Stirrer material of construction: Glass or PTFE Lined.
- Stirrer shape: Glass Impeller Stirrer with PTFE Blades, Vortex Stirrer, propeller stirrer & anchor stirrer.
- Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal.
- Supporting Structure: Carbon Steel, Epoxy coated Carbon Steel, Stainless Steel 304 & Stainless Steel 316. All structure are available in Trolley mounted form.
- Closing Valve: Drain Valve or Flush Bottom Outlet Valve
| at. Ref. | Vessel Ref. | Numina Cap.(l) |
| JSR5 | VZD 5/6 | 5 |
| JSR10 | VZD 10/9 | 10 |
| JSR20 | VZD 20/12 | 20 |
| JSR30 | VZD 30/12 | 30 |
| JSR50 | VZD 50 L | 50 |
Glass Jacketed Mixing Reactor
- Views: 106
-
Shankar Scientific Works - Vendor Type: Manufacturer, Supplier
- Product Code: SSW0000046
- Availability: In Stock
