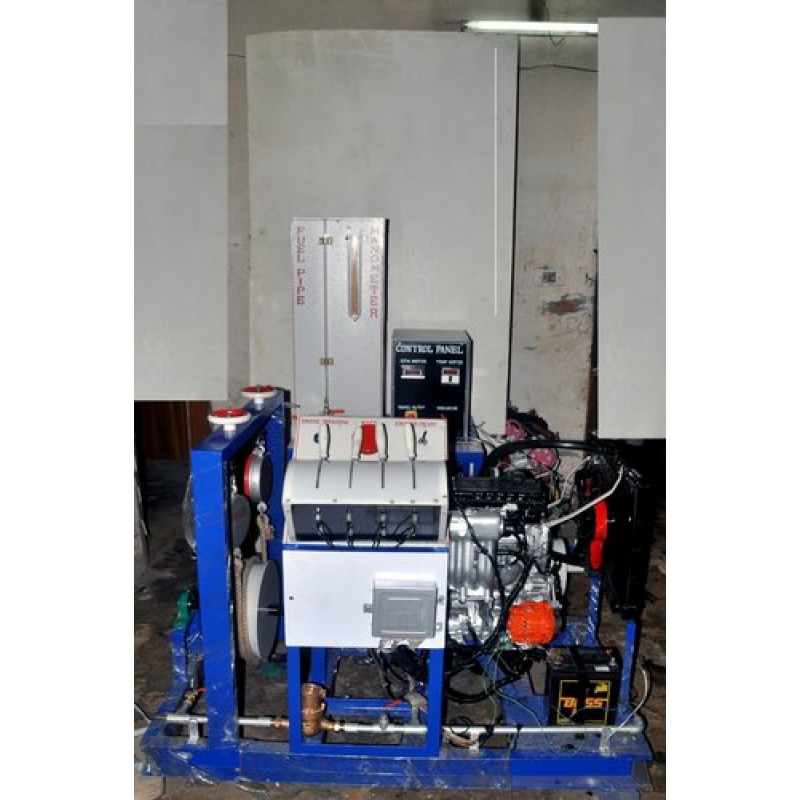

Four Cylinder Four Stroke Diesel Engine Test Rig

Product Details:

Description
IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.
• Experimentation/Learning Objectives
To determine specific fuel consumption.
• To determine Brake Horse Power.
• To determine mechanical efficiency.
• To determine Brake Thermal Efficiency.
• To determine volumetric efficiency measuremen
Utilities Required
• Electric Supply: Single Phase, 220 V, 15 Amp.
• Continuous Water Supply: 10 LPM Approx. at ½ kg/cm2 Pressure for Engine cooling.
• Fuel : 20 Ltrs. (Diesel)
• Floor Area: 3m X 2m
• Battery Unit: 12 Volt 88 Amp.
Technical Details
Type of Engine : Four cylinder, four stroke engine, vertical water cooled, self start, diesel engine, Make: tata indica Refurbished engine
• Type of Loading : rope Brake Dynamometer , electrical brake dynamometer, hydraulic brake dynamometer, eddy brake current dynamometer
• Fuel Measuring System : Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
• Air Intake Measuring System : Air tank fitted with orifice and water manometer.
• Measurement of Heat Carried : It consists of inlet outlet piping away by Cooling water with flow control valve, water meter and Temperature Sensor.
• Temperature Measurement : Digital Temperature Indicator with multi-channel switch
• Temperature Sensors : RTD PT-100 type
• RPM measurement : RPM Indicator with Proximity sensor.
• Exhaust Gas Calorimeter : Made of Stainless Steel including the body & the tube for cooling water circulation and designed to get maximum temperature difference. The body of the calorimeter is insulated on all sides to prevent heat losses due to radiation.
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
• The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint
