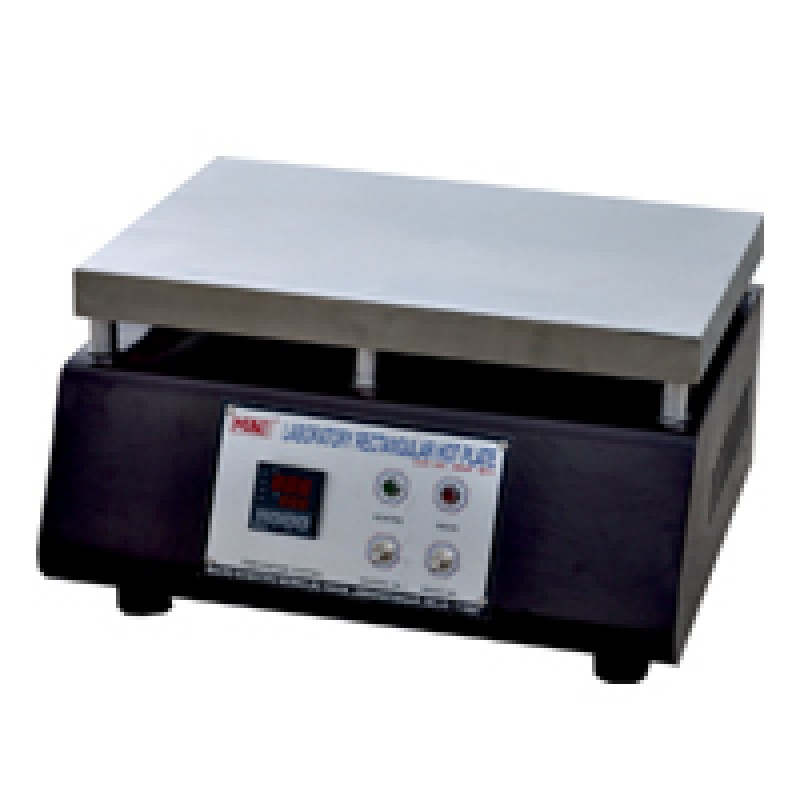

RECTANGULAR HOT PLATE REW-421
Product Details :
- For
Continuous Heating Upto 370OC
- Body is made of specially designed CRC sheet duly
powder coated or Stainless Steel.
- Top made of Mild Steel Plate or Stainless Steel
(S.S 304) for longer life & temperature uniformity.
- For Continuous Heating Upto 370OC
- Body is made of specially designed CRC sheet duly powder coated or Stainless Steel.
- Top made of Mild Steel Plate or Stainless Steel (S.S 304) for longer life & temperature uniformity.
TECHNICAL SPECIFICATION
& ORDERING INFORMATION
MODEL | #REW-1012 | #REW-1016 | #REW-1218 | #REW-1824 |
Heating Plate Size | 250 x 300 mm | 250 x 400 mm | 300 x 455 mm | 455 x 605 mm |
MOC (Body) | M.S. Sheet duly powder coated | |||
MOC (Top Platform) | Mild Steel Plate | |||
Heating Element | Placed underneath for uniform heating duly insulated | |||
Temperature Controller (OPTION) | Controlled through Energy Regulator | |||
Maximum Temp Range | Continuous Heating upto 370OC | |||
Electricity Supply | 220 / 230 V AC, 50/60Hz |
