Herschel Emulsifier:
DH-5
- Robust and safe Herschel emulsifier
- Efficient work with 8 test positions and 2 additional pre-tempering places
- Automatic timer with audible alarm

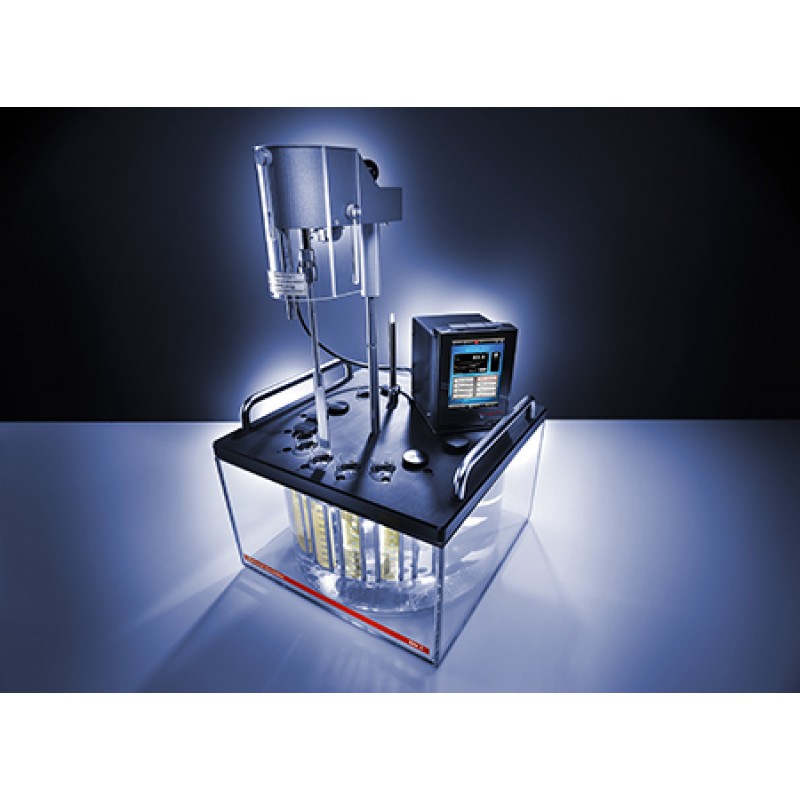

The DH 5 is a Herschel emulsifier that serves to measure the ability of petroleum oils or synthetic fluids to separate from water.
Key Features
Benefits at a Glance
- 8 test positions, 2 additional pre-tempering places
- Variable stirrer speed with digital display
- Automatic timer stop and audible alarm
- High level of safety
Convenient Operation
- Digital display of temperature, stirrer speed and stirring time
- Stirrer head can be rotated over each test vessel and is locked accurately in position
- A constant speed is guaranteed, even with changing viscosity
- The stirrer stops automatically after a selected time with an acoustic signal
- Easily removable stainless steel stirrer paddle
Customized User Flexibility
- Stirrer paddle made of copper (optional)
- Luminous background (optional)
Technical specifications :
Application range | Ambient to 85 °C |
---|---|
Speed control | Variable between 500 rpm and 1600 rpm |
Time setting | 1 s to 10,000 s |
Test positions | 1 to 8 |
Bath capacity | 27 liters |
Interface | RS232 |
Safety | Low-level protection Over-temperature switch Protection cover around the paddle Safety cut-off when lifting the stirrer Safety protection vessel |
Power supply | 230 V, 50 Hz/60 Hz, 2100 W 115 V, 50 Hz/60 Hz, 1600 W |
Dimensions | 440 mm x 440 mm x 700 mm (W x D x H) |
Weight | 32 kg |
