Hot Mounting Press
Product Details :
Minimum Order Quantity: 1 1 nos
Automatic Grade | Automatic |
Capacity | 30 mm |
Model Number/Name | FMP-50 |
Brand | fine testing |
Dimensions | 30mm/30mm |
Material | ms |
Phase | single |
Voltage | single |

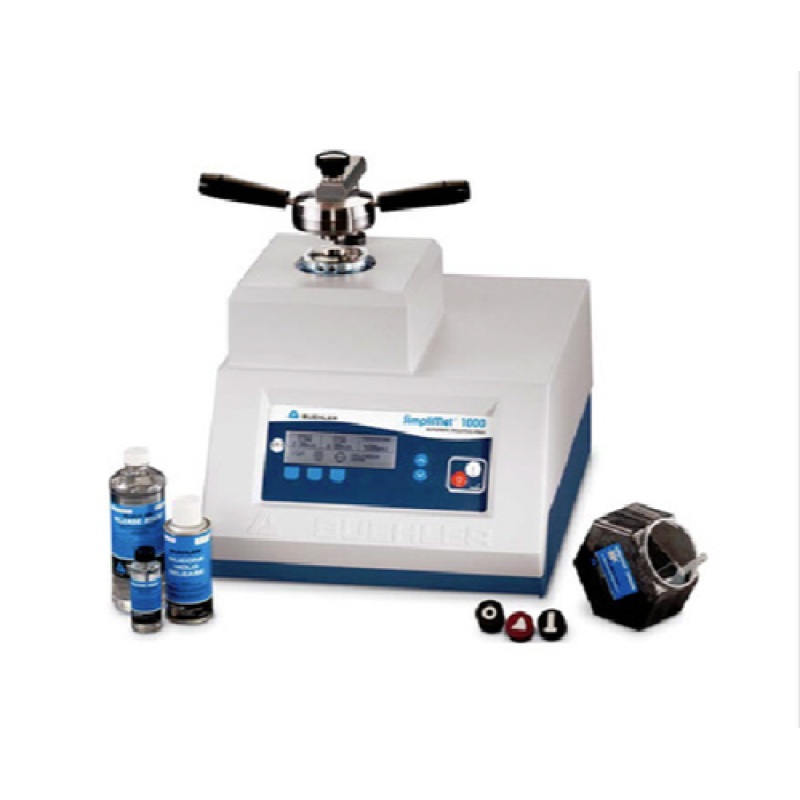

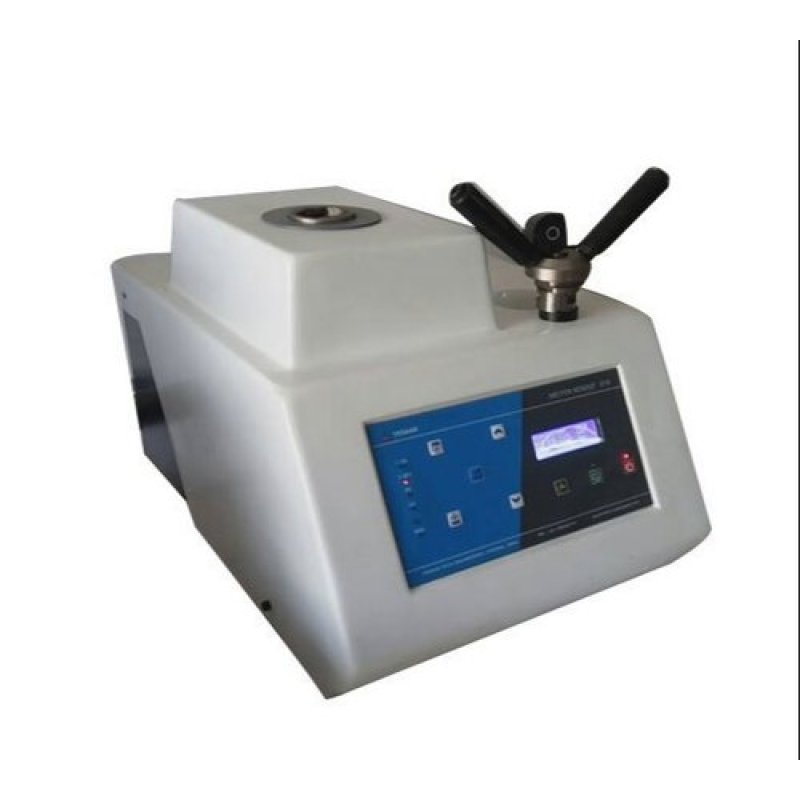

Hot Mounting Press is used for permanent mounting of the metallographic specimen for correct polishing results helps polishing small specimens & edge retention reliable hydraulic jack with pressure gauge mold heater fast cooling (air/water), time, buzzer facilities.
Technical Specification :
- Fully automatic
- Pneumatic Pressure
- LCD HMI display with user friendly touch screen controls
- Pressure up to 350 Bars (5000 psi)
- Temperature up to 200° C
- Mould Size 25mm,30mm,40mm,50mm
- Intermediate ram included for dual mounts
- Robust bayonet closer
- Heating power of 1000 watts
- Corrosion resistant steel construction
- Cycle completion alarm notification
