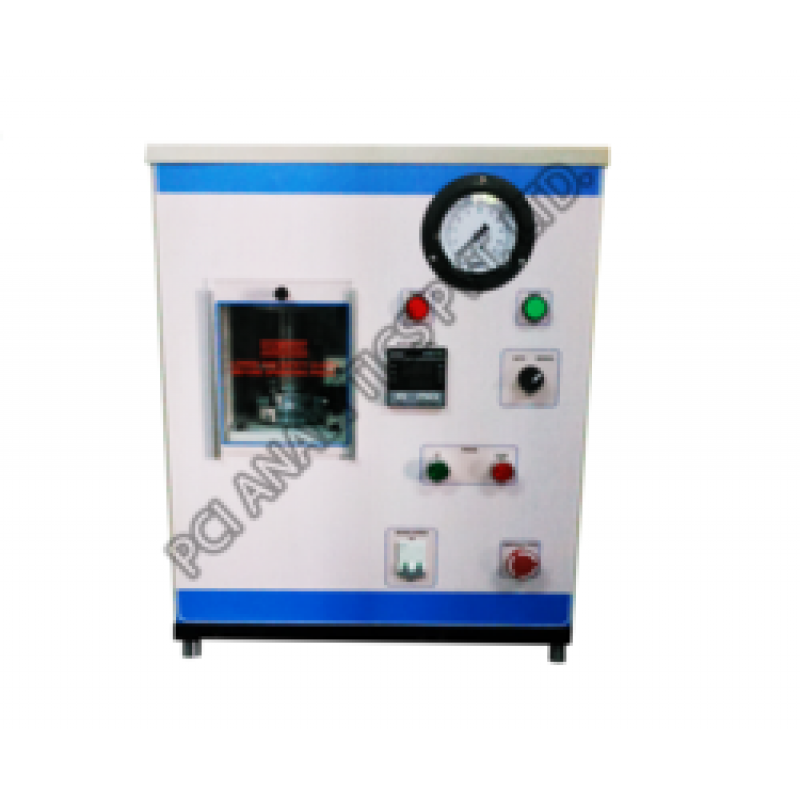

Hydraulic Pellet Press (Automatic) For FTIR

Product Details :

Automatic Press

- Compact design and easy to operate electrical controls with Pressing and Ejection cycle

- Pressing Cycle has both Auto and Manual modes whereas Ejection cycle has only Manual (Inching) mode

- Steady pressure building and controlled release ensure better pellet quality.

- Desired Pressure is set on manual pressure switch & actual pressure indicated by made to order Glycerine filled pressure gauge (indicator)

- Pressure hold time can be set on the timer provided on the front panel

- Settable parameters :- pressure, hold time & ram retracting time.

- Safety mechanisms to avoid over pressure and excessive ram stroke

- Transparent Polycarbonate safety guard has been provided in the area of operation.

- Emergency Stop Button to cut-off electrical supply (if required)

- Reputed MCB, overload relay & relay contactors are included in the Control-Panel for electrical safety

- Press is enclosed in a powder coated metallic cover, which is easily removable for maintenance purpose.

We offer hydraulic press that produces a force about 15 tonnes ude to make high-quality 13mm pallet used for IR/FTIR/XRF solid sampling. Our range of hydraulic press can be customised as per customer requirement. These are appreciated for precision functioning and durability.
