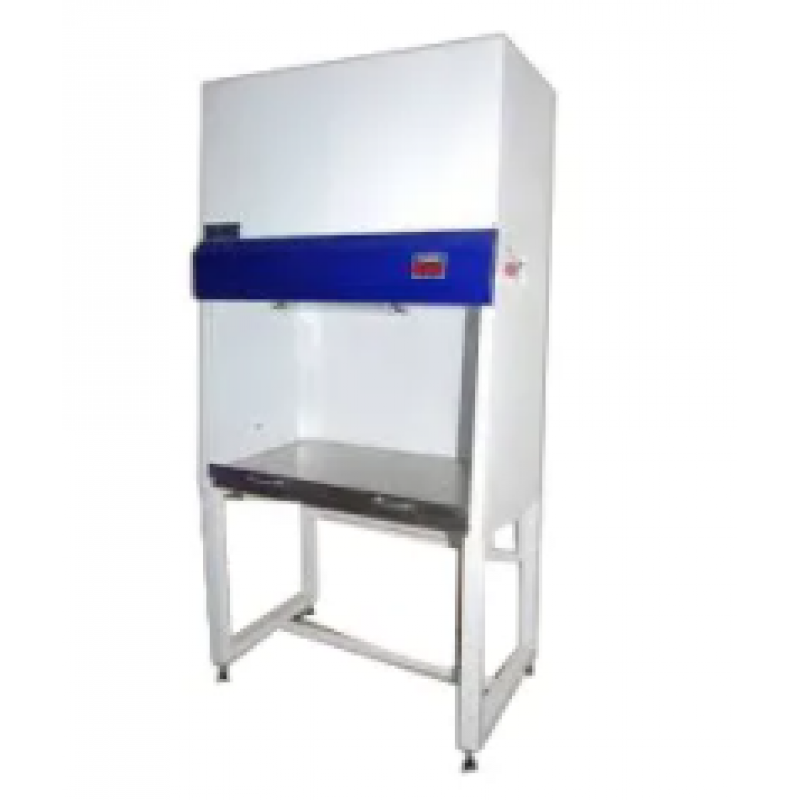

Industrial Bio Safety Cabinet

Product Details :

Owing to our years of industry experience and ethical business policies, we are reckoned as the top most manufacturer and supplier of Industrial Bio Safety Cabinet. We design these cabinets using high quality stainless steel 304 and other raw materials as per the requirement of our clients. This range of Industrial Bio Safety Cabinet is used as a main barrier for separating and removing hazardous substances from the work environment.

Features :

• Suitable for work with Bio Hazard Group
• Low noise
• Equipped with HEPA filters

Bio Safety Cabinet Class I

Class I Cabinets offers protection for the user but no protection for the work. These Biological Safety Cabinets are Open front, Ventilated cabinet unit, with a working front aperture through which the user can carry out work inside the cabinet. It offers the operator protection based on the forced removal of hazardous substances from the working zone through the air up-flow, with HEPA filtration and its exhaust into the room or outside environment.  This type of Biological Safety Cabinet is suitable for work with Bio Hazard Group 1 types of biological agent.

MOC of Construction :

1. Fully SS 304 construction with PVC mat 4 finish

1. GI Powder coating / Painting Constriction with SS 303 working area and work bench

Technical Specifications :

• Direction of flow : Vertical
• Cleanliness : CLASS 100
• Air Balancing : 90% recirculation and 10% Exhaust
• Inflow Velocity : 0.53 M/s
• Down flow Velocity : 0.33 M/s
• HEPA Filter : 0.3micron with 99.997% efficiency
• Particle retention : Above 0. 3 micron
• Blower Assembly : 1 / 3 HP, 1440 RPM
• Noise level : 65 decibel + / -5%
• Vibration level : < 2. 5 micron

Fittings :

• Motor Blower and HEPA filters
• Magnehelic Gauge and Velocity sensors
• Electrical Sockets and feather touch switches
• Electronic Digital display with control systems
• CFL lighting and Germicidal lamp

Clients :

• Medical Testing Lab, Hazardous material handling area, Blood testing labs etc.,
