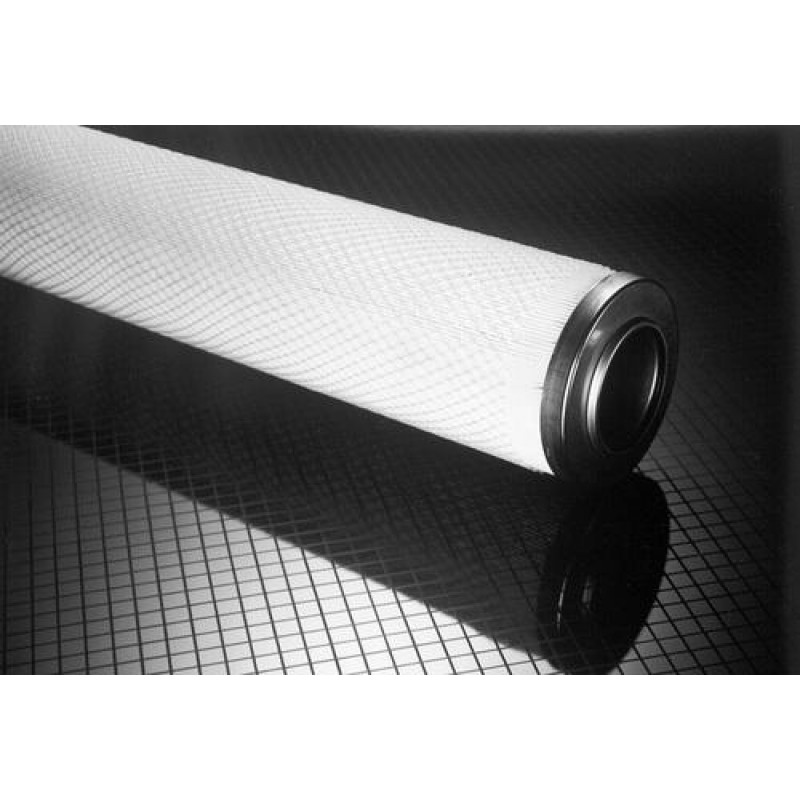

High Pressure Filter Cartridge
Product Details:
I Deal In | New Only |
Number of Filters | 1 |
Nominal Vessel Diameter in/mm | 6.625 / 168.3 |
Inlet/Outlet Flange Size in/mm | 3 / 76.2 |
Housing Height in/mm | 54.25 / 1378 |
Housing Weight (empty) lb/kg | 200 / 91 |
Description
The MCC1401 filter cartridge is available in two basic types of media; Epocel® – which is a resin impregnated cellulose, and Ultipor® – a resin bonded glass fiber. These absolute rated media, specifically engineered, are available in varying grades with defined removal efficiencies and can provide up to 54 square feet of effective filtering surface area assuring long service life. See Table 1 for removal ratings of each medium type.
Operating Characteristics
MCC1401 cartridges are of pleated design, supported internally by a steel core and protected externally by steel endcaps, providing positive sealing via an internal O-ring. The maximum recommended changeout differential pressure is 60 psid/4.13 bar at 275°F/135°C.
Filter Media Characteristics
Ultipor Filter Cartridges: These cartridges are ruggedly built using a resin bonded glass fiber medium. The inert resin bonding ensures that the filters are free from media migration and establishes a permanent, fixed pore construction that prevents unloading of trapped contaminants. Because of their high effective filter area and optimized construction, Ultipor elements provide high dirt holding capacity, low clean pressure drop, long service life and low cost per gallon of fluid processed.
Epocel Filter Cartridges: This filter medium is comprised of a resin impregnated cellulose medium. Utilizing the resin impregnation technique locks the cellulose fibers in place preventing flexing or shifting, which can change the size of the flow passages and reduce removal efficiency. Epocel medium is compatible with many fluids including fresh and produced water, acids, solvents, brines, hydrocarbons, alcohols, and many others. Epocel cartridges are available in grades ranging from 10 micron up to 50 micron absolute.
Additional Information:
- Item Code: MCC1401
