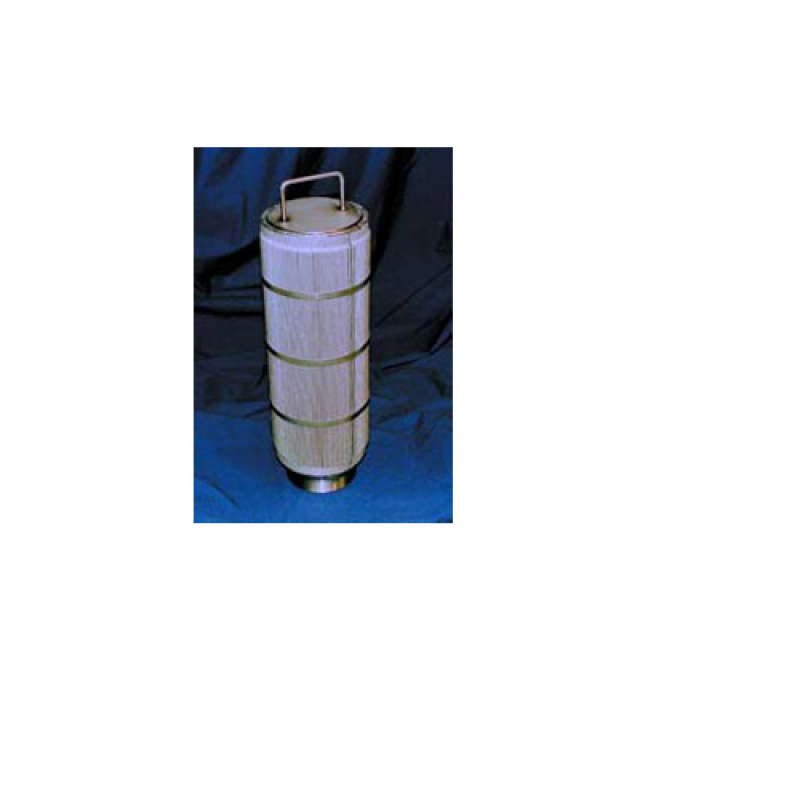

Metal High Flow Filters
Product Details:
Larger Filter Area, Longer Filter Life
Pall ‘Rigimesh’ and ‘PMF’ range of cleanable metal cartridges has been extended to include a high area, large bore version. These are specifically designed to provide a very high surface area, up to 4.1 m2, for handling large flow rates. Manufactured from Rigimesh or PMF medium to give very low clean differential pressure drops. Absolute removal from 2.5 micron up to 105 micron in liquids and .25 to 85 micron in gases.
Typical Applications
- Used where high flow rates combined with high temperatures
- preclude the use of polymeric products.
- Gas compressor inlets to reduce the effects of fouling.
- Catalyst protection, to increase catalyst life.
- Heat exchanger protection to reduce energy costs.
- Pump protection to increase pump life.
- Cartridge Dimensions
Nominal length: | 380 mm (15") |
Outer diameter: | 190 mm (7.45") |
Inner diameter: | 100 mm (6.3") |
Operating Characteristics
Maximum Differential Pressure | Operating Temperature |
12 bard | 250°C |
17 bard | 21°C |
Maximum Differential Pressure | Operating Temperature |
0.7 bard | 21°C |
