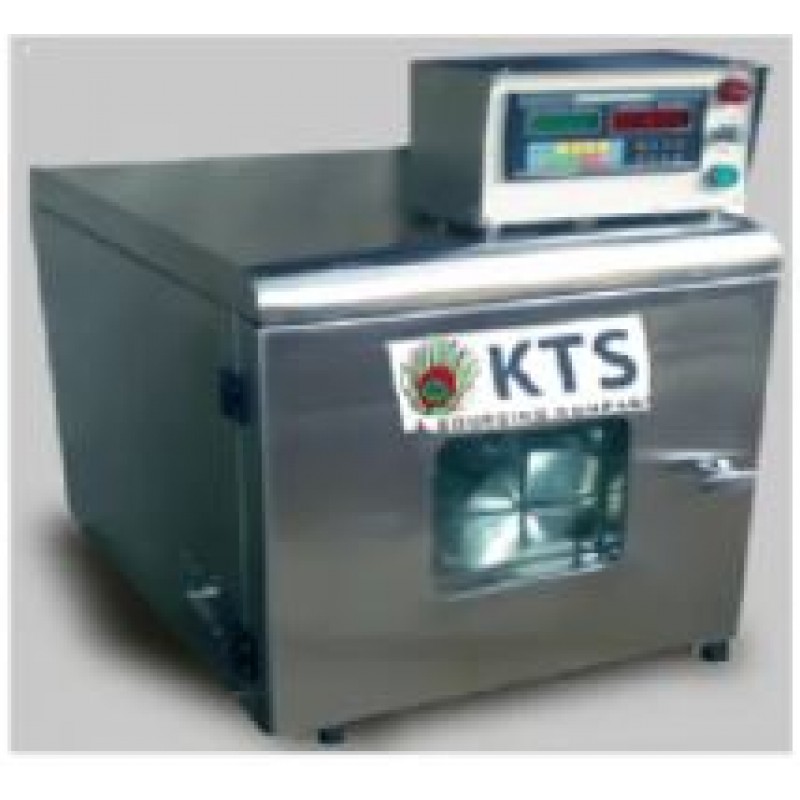

Infra Dyeing Machine

Product Description

Infra Dyeing Machine -ITEM CODE: KTS-043

(Capacity: 12X250 ML IR)

The IR dyeing machine is a state of the art dyeing instrument. This unit produces more accurate lab sample dyeing with level and re-producible results and accommodates up to 12 pots with a low liquor ratio for diverse fibers.

I R Dyeing Machine move the beakers in a circular rotation with latest IR heating technology, instead of traditional two-positioned IR heating system, to avoid uneven heating for beakers. The specially designed pressure tested beakers offer maximum safety and can be used for atmospheric and high temperature dyeing. Dye-bath temperature is measured directly by a PT-100 probe inside the beaker.

Salient Features :

• Due to use of Infra-Red Radiations for heating, beaker heating is uniform.
• There is enough savings in energy consumption
• As there is no contamination of beakers with glycerin,cleaning time is drastically reduced thus more dyeing cycles are possible.
• Automation is through Micro Processor Controller. Safety norms are provided
• All beakers are made from SS-316, IR Heaters of total capacity 3.0 KW
• PLC Controlled programmer with 99 programmers. Variable Drive for Speed controller
• Low ratio - 1:6. Beaker dyeing capacities for 250,500, 1000 ml
• Manual dosing of auxiliaries & optional auto dosing system Programmable LCD controller.

Specifications :

• Number of Specimen 16 or 24 pots,
• Temp. Controller: PLC Unit,
• Temp. Range: 25 -140 °C,
• Temp. Accuracy: ±0.5 °C at 130°C,
• Rotating Speed Range: 0-60 rpm/ min,
• Dimensions (approx.): 830(W) X 750(D) X 950(H) mm

Models available are: 12X250ML IR, 18X250 ML IR, 12X500ML IR
