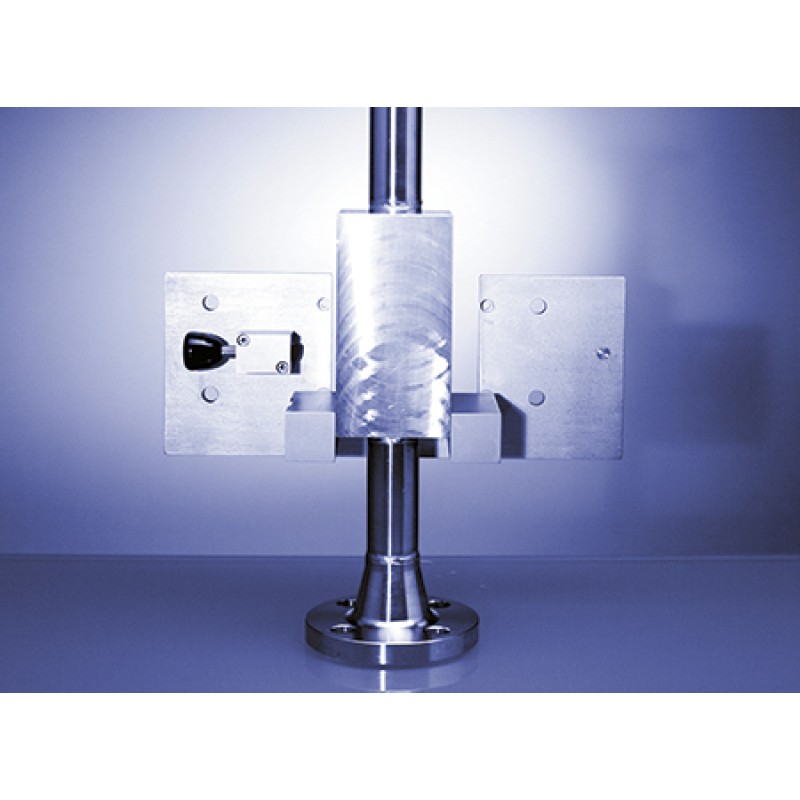

Inline Flow Cell
The Inline Flow Cell is directly installed in the production line. The Propol measuring unit is fixed on a mounting plate which can be flipped to the side to allow maintenance of the cell.
Key Features
Easy to install
- For connecting a Propol measuring unit
- Installation directly in the production line
Robust design for harsh industrial environments
- Adaption to your plant and application
- No influence on sterility
Technical specifications :
Technical data | |||
---|---|---|---|
Type | Flanged tube of 25, 32, 40 or 50 mm ID, with side windows | ||
Flanges | According to specifications | ||
Optical length | Min. 10 mm, max. 70 mm | ||
Materials | |||
Flow cell | Standard: 1.4571 (other material on request) | ||
Seals | Standard: FPM (other material on request) | ||
Optical Window | Borosilicate glass |
