KT-20 Magnetic Susceptibility/Conductivity Meters
Product Details :
The KT-20 is a handheld instrument capable of measuring the magnetic susceptibility, conductivity or density of a sample. Its modular design provides users the ability to employ different sensors that are of an optimal frequency for either magnetic susceptibility or conductivity measurements. The sensors are available in circular and rectangular designs and can easily be interchanged, allowing the KT-20 to measure smaller or larger sized samples or cores. Density measurements can also be obtained from the KT-20 providing more information about the sample. A picture, audio note, text note and GPS coordinates can also be added to the measurement to increase the amount of information one can attach to each record to improving archiving
Benefits:
- Three models to choose from: dedicated magnetic susceptibility meter (KT-20), dedicated conductivity meter (KT-20C), or combined magnetic susceptibility & conductivity meter (KT-20S/C).
- Interchangeable dual-and single-frequency sensors in circular and rectangular designs.
- High Sensitivity for magnetic susceptibility (1 x 10-7 SI) and conductivity (0.1 S/m).

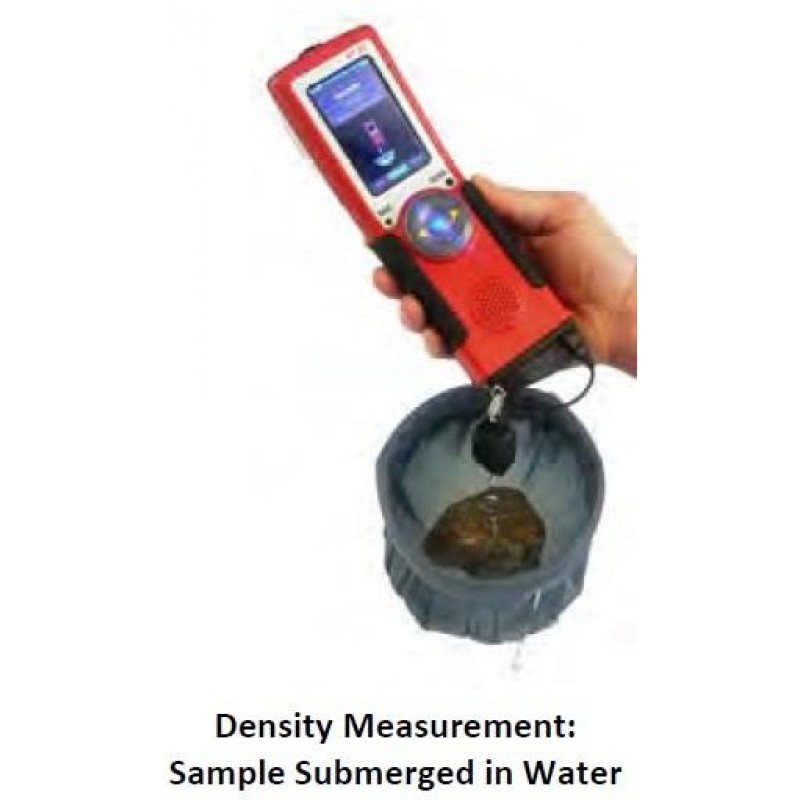

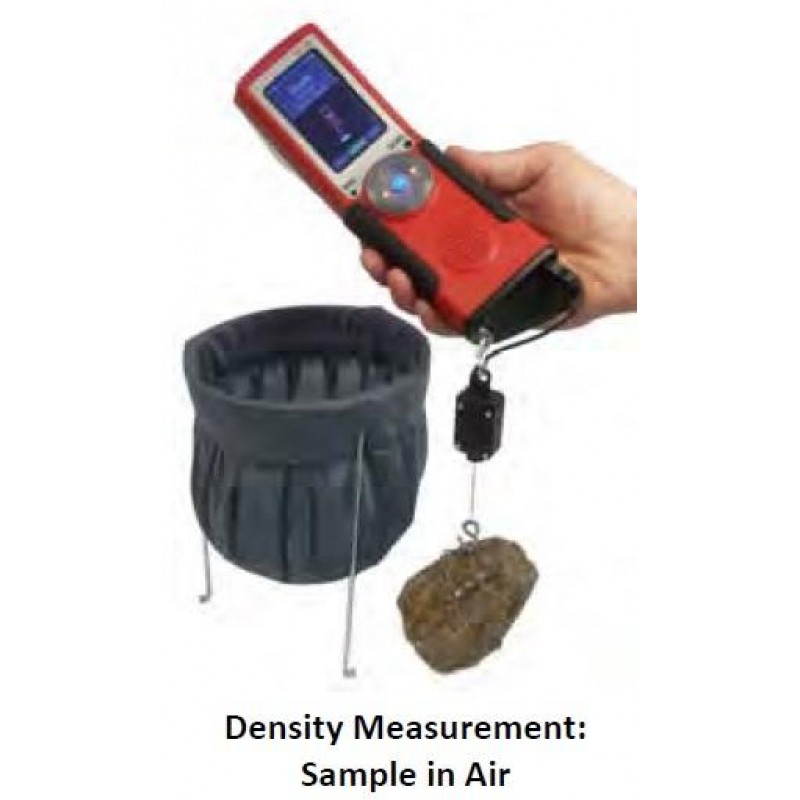

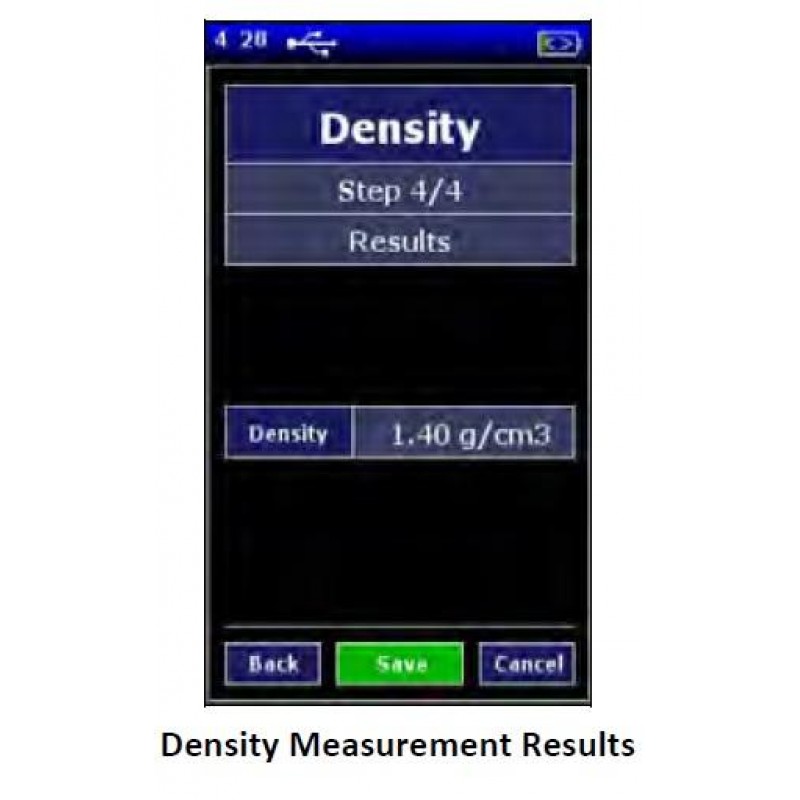

- Density measurements using the KT-20 with the accessories provided with the system.
- IP/Resistivity Sensor and 3F-32 Triple-Frequency Large Diameter Sensor will become available in late 2015.
- Data profiles displayed in real-time while scanning.
- Built-in high resolution camera to capture pictures of samples
Additional Benefits
- Integrated GPS to record location coordinates
- Review data records directly on the display
- Split and full core corrections for standard drill rod diameters (AQ, BQ, HQ, NQ and PQ) and non-standard sizes (2.4 to 12 cm)
- Input core box information to correlate measurement results to their appropriate depths
- Data running average and standard deviation values displayed during individual measurements
- Built-in microphone and speaker
- Upgrades and support available via the internet
Applications:
- Mineral exploration
- Core analysis
- Oil and gas exploration
- Environmental investigations
- Agricultural research
- Archaeology

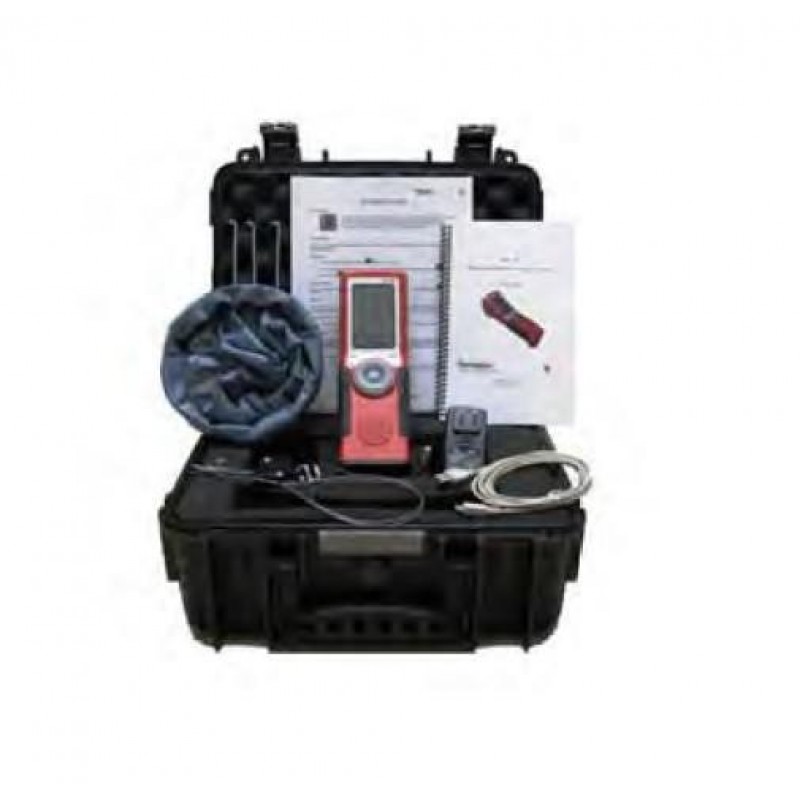

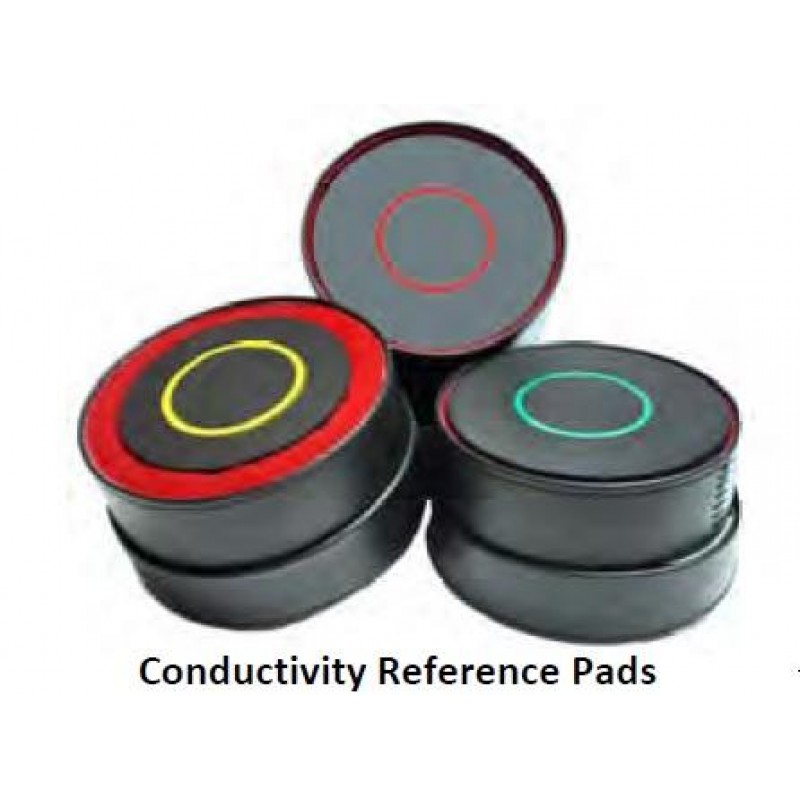

Standard System Includes:
- KT-20 Console
- Rechargeable Li-Ion Batteries with Charger
- Accessories for Density Measurements
- USB Cable
- Operations Manual with Quick Start Guide
- Rugged Transportation Case
Magnetic Susceptibility and Conductivity Meter Models:

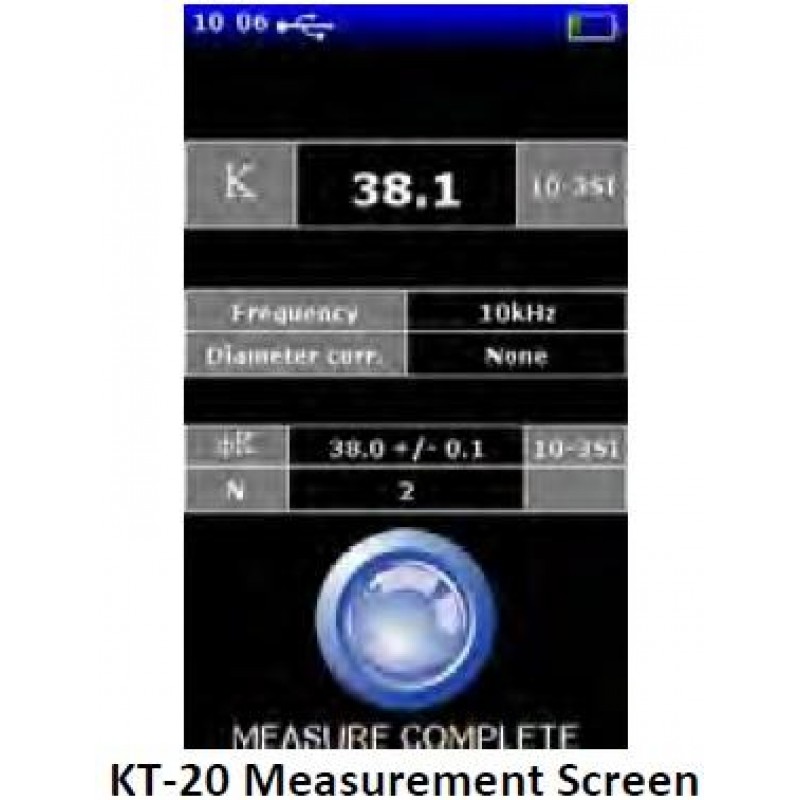

KT-20 Magnetic Susceptibility Meter
- Maximum Sensitivity: 10-7 (using 10 kHz single-frequency sensor without pin)
- Maximum Range: 2 SI units
- “Plus” upgrade for iron ore (optional):
1. Increase measurement range to 10 SI units
2. Iron ore concentration estimates (%) directly from the display based on calibration curve for magnetite

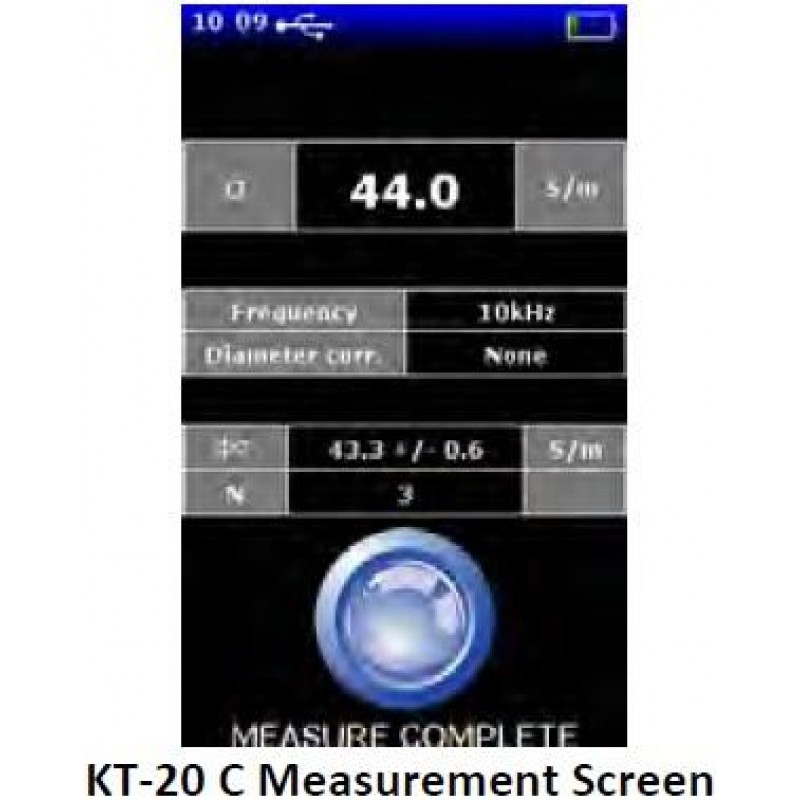

KT-20C Magnetic Conductivity Meter
- Maximum Sensitivity: 0.1 S/m (using 100 kHz dual-frequency sensor without pin)
- Maximum Range:
1. 0.1 to 15,000 S/m (using 100 kHz dual-frequency sensor)
2. 1.0 to 100,000 S/m (using 10 kHz frequency)
- Absolute Conductivity Meter, calibrated using multi-point algorithm
- “Cx” upgrade to increase measurement range to 200,000 S/m (optional)
- Note: Cx option is only available with 1 kHz and 10 kHz frequencies

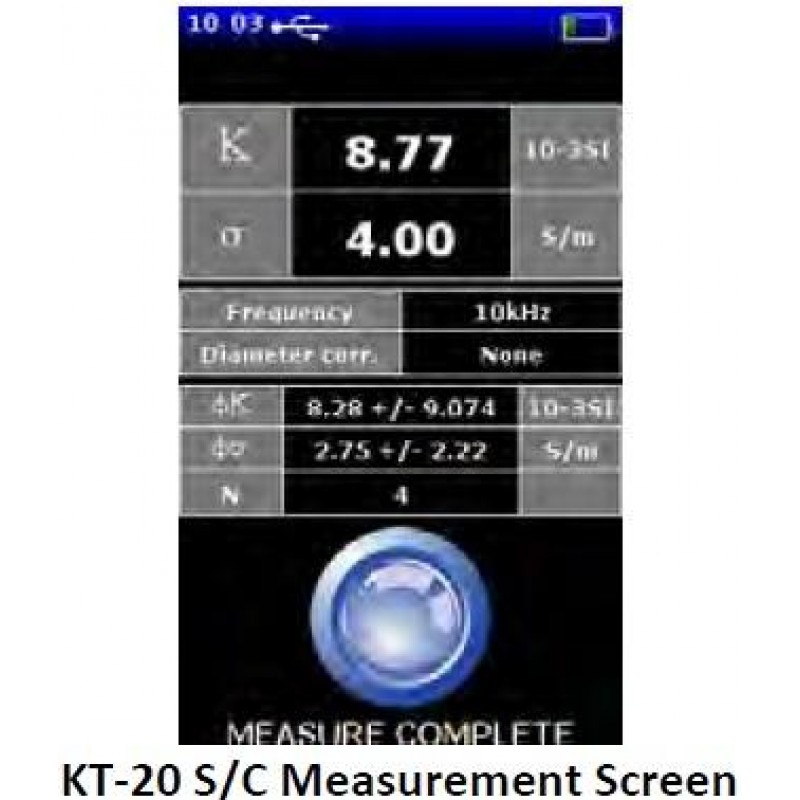

KT-20S/C Magnetic Conductivity Meter
- Maximum Sensitivity: 0.1 S/m (using 100 kHz dual-frequency sensor without pin)
# 10-7 (using 10 kHz single-frequency sensor)
# Conductivity: 0.1 S/m (using 100 kHz dual-frequency sensor)
- Maximum Range:
1. Magnetic Susceptibility: 2 SI units
2. Conductivity
# 0.1 to 15,000 S/m (using 100 kHz dual-frequency sensor)
# 1.0 to 100,000 S/m (using 10 kHz frequency)
- Absolute Conductivity Meter, calibrated using multi-point algorithm
- “Plus” upgrade for iron ore (optional):
1. Increase measurement range to 10 SI units
2. Iron ore concentration estimates (%) directly from the display based on calibration curve for magnetite
- “Cx” upgrade to increase measurement range to 200,000 S/m (optional)
- Note: Cx option is only available with 1 kHz and 10 kHz frequencies
Sensors
- Five sensors are available in dual and single frequencies to provide certain benefits for either magnetic susceptibility or conductivity measurements.
- State of the art design enables sensors to be easily interchanged.

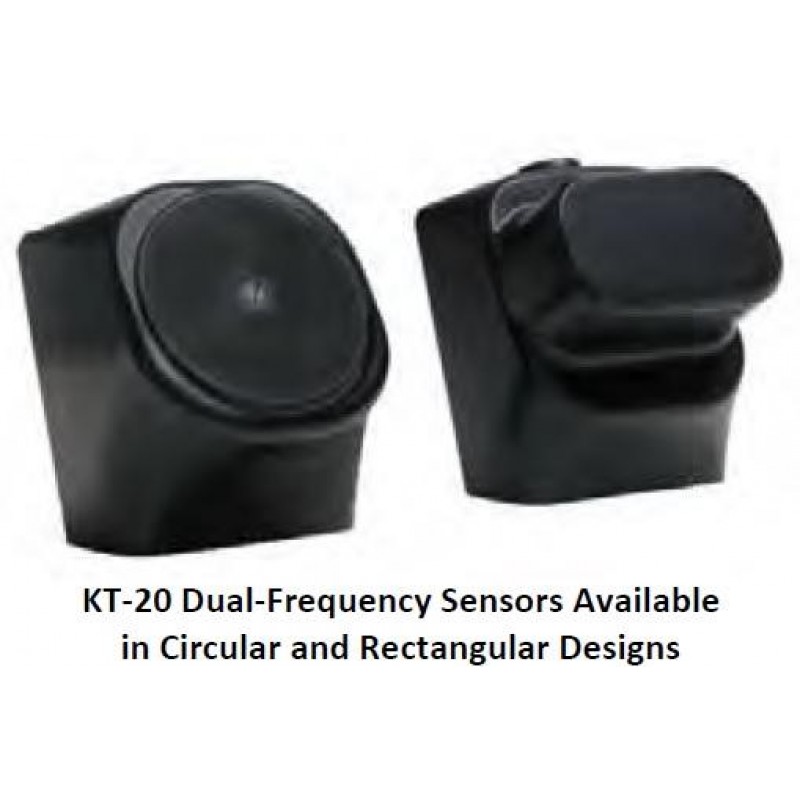

- Circular and rectangular sensor designs available to adapt the KT-20 to large and small sized samples (note: 10 kHz single- frequency sensor is only available in a circular design).
- 10 kHz single-frequency sensor includes a pin for measuring rough or uneven surfaces.
- Each KT-20 model requires one sensor for operation. Multiple sensors can be purchased with the KT-20 or added afterwards.
- IP/Resistivity Sensor and 3F-32 Triple-Frequency Large Diameter Sensor will become available in late 2015.
1/10 kHz Dual-Frequency Sensor | ||
|---|---|---|
Operating Frequency: | 1 kHz Sensor | 10 kHz Sensor |
Magnetic Susceptibility Sensitivity: | 1 x 10-5 SI | 1 x 10-6 SI |
Conductivity Sensitivity: | 13 S/m | 1 S/m |
Magnetic Susceptibility Measurement Range: | 0.01 x 10-3 to 1999.99 x 10-3 SI | 0.001 x 10-3 to 1999.99 x 10-3 SI |
Conductivity Measurement Range: | 13 to 100,000 S/m | 1 to 100,000 S/m |
Conductivity Measurement Range: | ||
Sensor Designs: | Rectangular/Circular | Rectangular/Circular |
100 kHz Dual-Frequency Sensor | |
|---|---|
Operating Frequency: | 100 kHz Sensor |
Conductivity Sensitivity: | 0.1 S/m |
Conductivity Measurement Range: | 0.1 to 15,000 S/m |
Conductivity Measurement Range: | Provides a sensitivity of 0.1 S/m for conductivity measurements |
Sensor Designs: | Rectangular/Circular |
10 kHz Single-Frequency Sensor | ||
|---|---|---|
Without Pin | With Pin | |
Magnetic Susceptibility Sensitivity: | 1 x 10-7 SI | 1 x 10-6 SI |
Conductivity Sensitivity: | 1 S/m | 10 S/m |
Magnetic Susceptibility Measurement Range: | 0.0001 x 10-3 to 1999.99 x 10-3 SI | 0.001 x 10-3 to 1999.99 x 10-3 SI |
Conductivity Measurement Range: | 1 to 100,000 S/m | 10 to 100,000 S/m |
Conductivity Measurement Range: | Provides high sensitivity (1 x 10-7) for magnetic susceptibility measurements | Pin enables sensor to measure samples with rough or uneven surfaces |
Sensor Designs: | Circular Only | Circular Only |
Induced Polarization (IP)/Resistivity Sensor | |
|---|---|
Measuring Method: | Time Domain IP (TDIP) |
Electrode System: | Galvanic |
TDIP Number of Windows: | 20 |
Transmitter TDIP: |
|
Receiver: |
|

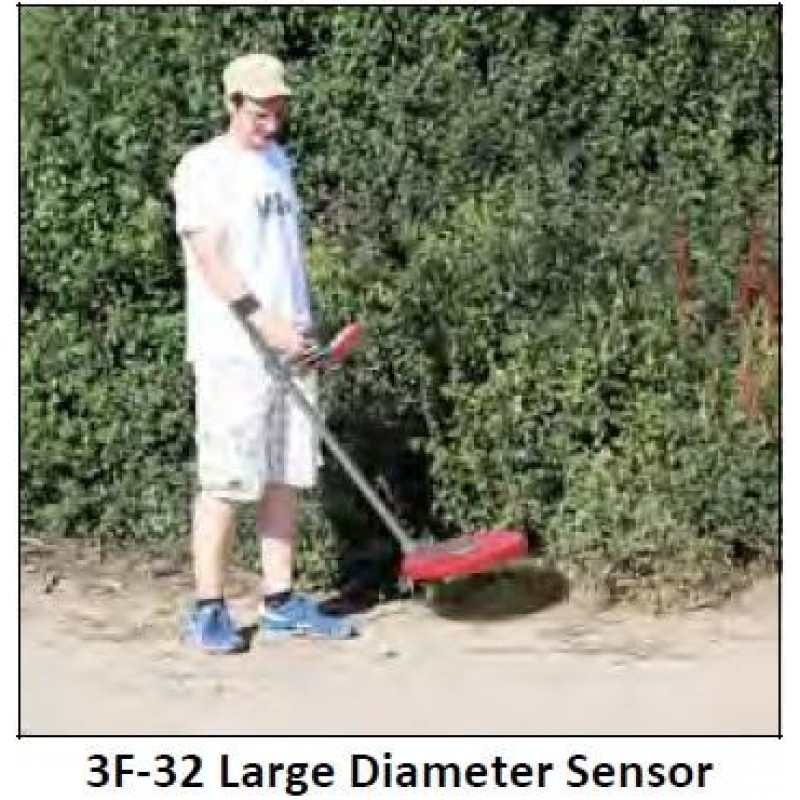

3F-32 Large Diameter Sensor | |||
|---|---|---|---|
Operating Frequency: | 1 kHz Sensor | 10 kHz Sensor | 100 kHz Sensor |
Magnetic Susceptibility Sensitivity: | 1 x 10-5 SI | 1 x 10-6 SI | - |
Conductivity Sensitivity: | 13 S/m | 1 S/m | 0.1 S/m |
Magnetic Susceptibility Measurement Range: | 0.01 x 10-3 1999.99 x 10-3 SI | 0.001 x 10-3 1999.99 x 10-3 SI | - |
Conductivity Measurement Range: | 13 – 100,000 S/m | 1 – 100,000 S/m | 0.1 – 100,000 S/m |
Hardware Specifications | |
|---|---|
Memory: | 4 GB |
Data Input/Output: | USB and Bluetooth |
Power Supply: | 2 x Li-Ion Rechargeable Batteries |
Operating Temperature: | -20°C to 60°C |
Display Dimensions: | 76 x 47 mm |
Display Resolution: | 400 x 240 pixels |
Circular Sensor Dimensions: | 66 mm |
Rectangular Sensor Dimensions: | 66 (L) x 40 (W) mm |
Rating: | IP 65 |
Maximum Sample Weight for Density | 1.0 kg |
Size: | 260 x 72 x 60 mm |
Weight: | 0.60 kg |
