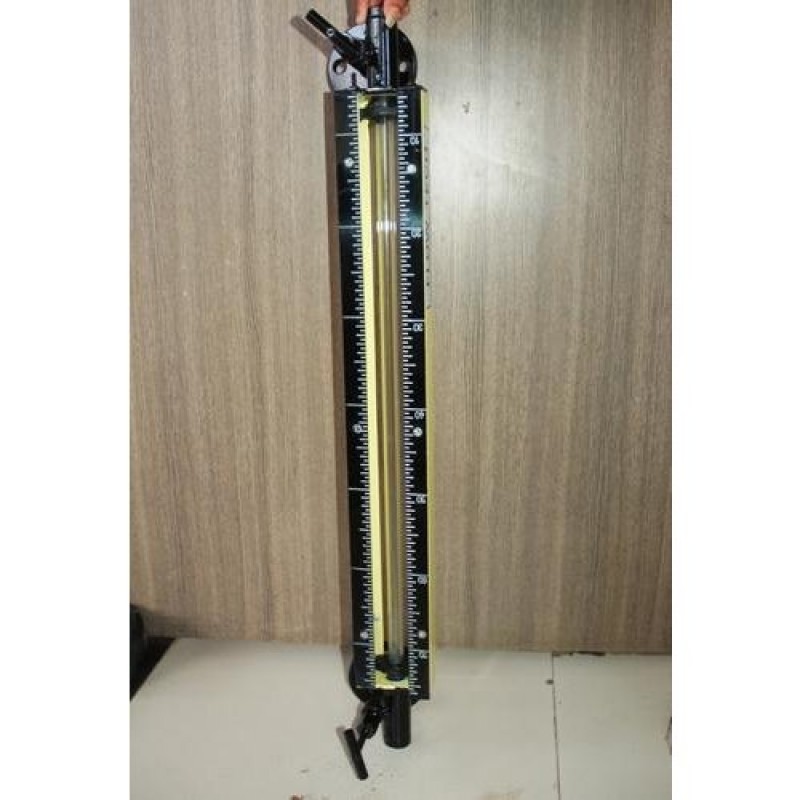

Level Indicator
Product Details:
End Fitting | CS/S.S.304/S.S 316/P.P |
Connection | Flanged Asa 150#/ASA 300# |
Press Rating | UPTO 12 KG/cm2 |
Temp Rating | UPTO 250 degC |
Design Feature:-
- The top bottom liquid Chamber of indicator is made of solid bar Glass Tube (Borosilicate) is fully Protected by Box Section made out of 2 mm thick M.S. channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube remains intact.
- We are using 100% PTFE (TEFLON) rope as packing to ensure positive leak tightness for full vacuum as well as 6 Kg / Cm service pressure.
- As Compare to Reflex Transparent type Level Gauge, this Tubular Level Indicator is light in weight.
- It is available in single length of 2000 mm C/C Distance. We can extend the length by coupling 2 or more through coupler.
- We are providing Air Vent Plug at top drain plug at bottom for taking sample. We can also provide Inbuilt Isolation Valve on request.
- It is simple and reliable device for direct reading in atmospheric or pressurized (below 5 Kg/cm2) tank application.
- It Eliminates trouble giving threaded joints of Conventional Gauge Glass Cock as hazardous Chemicals Start leaking.
- Glass Tube (Borosilicate Boiler Quality) is fully protected by guard Rods or Box Section made of ‘C’ – Channel.
- Offset Constructed Isolation Valve on request.
- The connection provided will be Flanged / Screwed / TC Joint.
