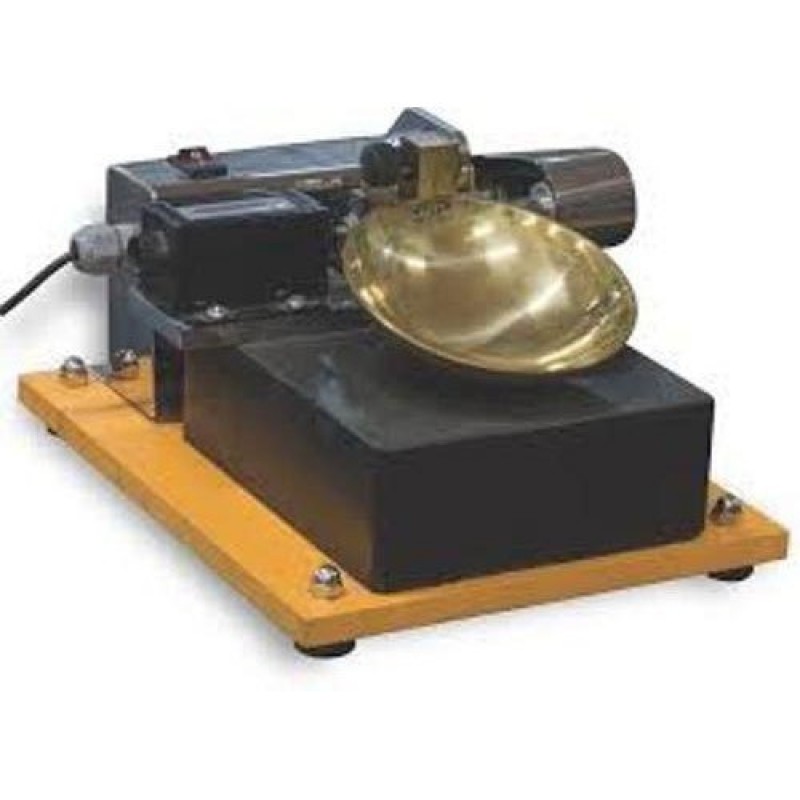

Liquid Limit Device

Product Details :

Details:

• Automation Grade : Manual
• Weight : Approx 2 Kg
• Brand : BLTE
• Material : Stainless Steel

Casagrande method in mechanical form is known as Liquid Limit Method and has been in use for soil mechanics for many years.  The Liquid Limit data of soils is useful to correlate mechanical properties of soil, such as compressibility and lower shear strength.  Liquid Limit is the water content at which soil passes from zero strength to an infinitesimal strength, hence the true value of liquid limit cannot be determined.  For determination purpose liquid limit is that water content at which a part of soil, cut by a groove of standard dimensions, will flow together for a distance of 1.25cm under an impact of 25 blows ina standard liquid limit apparatus.  The soil at the water content has some strength which is about 0.17N/cm.sq.(17gms/sq.cm).  At this water content soil just passes from liquid state to plastic state.

Additional Information:

• Item Code: BLTE-0120
• Delivery Time: Ready stock
• Packaging Details: Cardboard box
