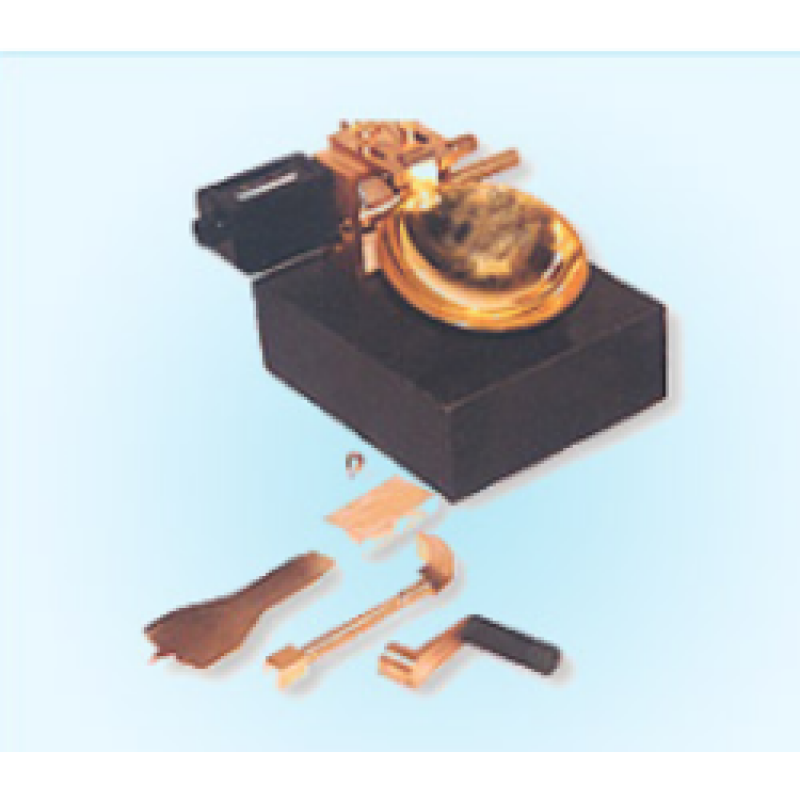

Liquid Limit Device

Product Details :

QUALITY STANDARD :As Per IS 2720 (P-V)

Specification :

Liquid Limit Device Hand Operated fitted with blow counter complete with casangrande grooving tools and a Gauge Block. The liquid limit is defined as the moisture content at which the soil passes from plastic state to liquid state; it is very helpful in the classification of the potential properties of the soil material. The liquid limit device consists of a hard rubber base carrying a sliding carriage assembly to which a brass cup is hinged. The cup is raised and allowed to fall through a height of 1cm on to the hard rubber base, by the help of a lead screw provided at the back of the sliding carriage.

Liquid Limit (Electrically Operated)

QUALITY STANDARD :As Per IS 2720 (P-V)

Specification :

Liquid Limit Device Hand Operated fitted with blow counter complete with casangrande grooving tools and a Gauge Block. The liquid limit is defined as the moisture content at which the soil passes from plastic state to liquid state; it is very helpful in the classification of the potential properties of the soil material. The liquid limit device consists of a hard rubber base carrying a sliding carriage assembly to which a brass cup is hinged. The cup is raised and allowed to fall through a height of 1cm on to the hard rubber base, by the help of a lead screw provided at the back of the sliding carriage. The apparatus is suitable for operation on 220V, Single Phase, 50Hz, AC Supply.
