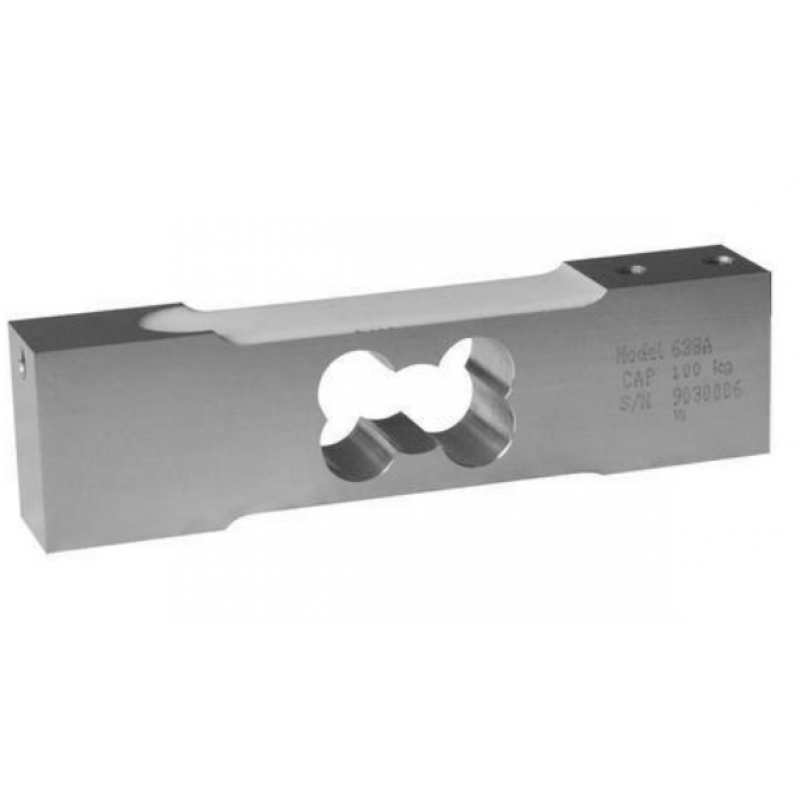

Alloy Steel Load Cells
Product Details:
Product Details:
| Brand | Goldtech |
| Excitation Voltage | 10 V DC - Max. 15 Vdc |
| Protection Class | lP65 |
| Ultimate Overload of Rated Capacity | 200.00% |
| Standard Capacities | 500,750,1000,1500,2000,3000, Kg |
| Safe Overload of Related Capacity | 150.00% |
| Cable Length (4 Core Screened) | 700 Cm |
| Finish | Electroless Nickel Plated Steel Alloy |
Features:
- Excellent performance
- Reliable operation
- Sturdiness
Other details:
| Excitation Voltage | 10 V DC-Max. 15 Vdc |
| Normal Output | 2.0 mV/V |
| Non - Linearity | < ± 0.025% FSO |
| Hysteresis | < ± 0.02% FSO |
| Non - Repeatability | < ± 0.01% FSO |
| Creep (30 minutes) | < ± 0.03% FSO |
| Zero balance | ± 1.0% FSO |
| Input Resistance | 390 ± 15 Ohms |
| Output Resistance | 350 ± 5 Ohms |
| Insulation Resistance (50VDC) | > 1000 Mega Ohms |
| Temp Compensated Range | 0-60ºC |
| Temperature Effect on Output | < 0.0015% FSO/ºC |
| Temperature Effect on Zero | < 0.0020% FSO/ºC |
| Platter Size | 1000mm x 1000mm |
| Eccentric Load Effect | < 0.02% of FSO at 1/3 rated load placed Within the specified sized platter |
| Deflection | < 0.5mm at FSO |
| Tightening Torque | 7.5 m.Kg |
| Finish | Electroless Nickel Plated Steel Alloy |
| Construction | lP65 |
| Environmental Protection Class | Large Platform Scales, Steel Weighers |
