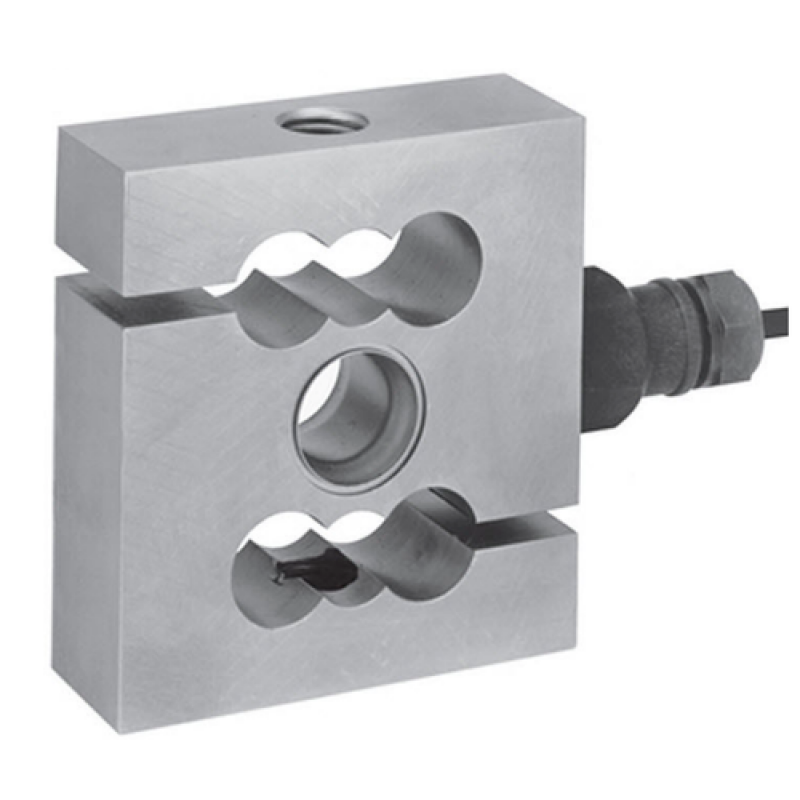

S Beam Load Cell
Product Details :
Type | S TYPE |
Brand | MANSI ADI |
Usage/Application | Industrial |
Nominal Sensitivity | 3MV/V |
Load Capacity | 2 TON |
Design | Robust |
Shape | S |
Capacity | 2 TON |
1 | S BEAM LOADCELL |
S Beam Load Cell S Shaped Bending Beam strain gage based Load Cell which is temperature compensated over 0 - 60 deg.C.It is constructed from electroless nickel plated high alloy tool steel for harsh industrial shock loads and corrosion. It is universal type load cell for tension and compression load/force/tension measurement.
Application:
- Bag Weighing Machine
- Cargo Handling in Ship Yards
- Compressive Force Measurement Testing
- Conversion of Mechanical Scale to Electronic
- Conveyor Belt Weighing
- Crane Test Dynamometer
- Elevator Load Monitoring
- Food Packaging
- Force Gage
- Force Measurement Tension or Compression Dynamometer
- Hanging Scale
- Hopper , Tank , Silo Weighing
- In-Line Force Measurement
- Machine automation
- Material Handling
TYPE | S Type Load Cell (Load Cell with Threads) | |||
CAPACITY | UP TO 20 TF | |||
APPLICATIONS |
|
Additional Information:
Production Capacity: 500 PER YEAR
Delivery Time: 1-3 DAYS
