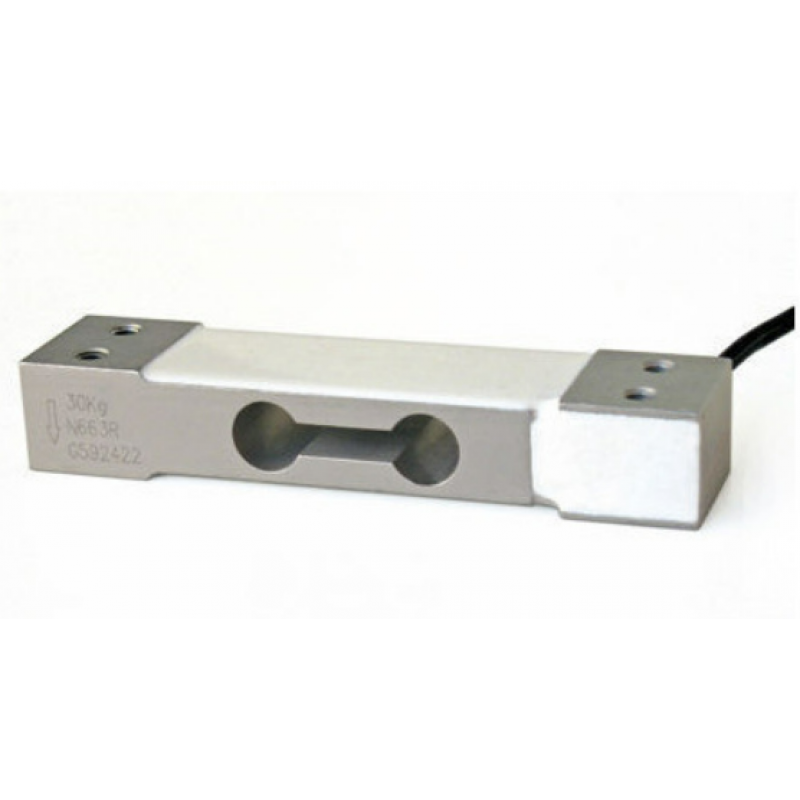

Single Point Load Cell

Product Details:

Load Capacity	100 . 200 .300. 500-kgf
Excitation Voltage	10vdc-max. 15vdc
Operating Temperature Range	0-60 Deg C
Safe overload of related capacity	150.00%
Ultimate overload of rated capacity	200.00%
Cable length (4 core screened)	250 cm
Platter size	400 mm x 500 mm

As a quality-oriented organization, we are focused to provide our clients excellent quality Single Point Load Cells. These load cells are manufactured by our skilled engineers using high grade raw material. The offered load cells are available in different designs and other related specifications, in order to meet the variegated expectations of our valuable customer. Our provided range is rigorously tested by the team of our professionals. Furthermore, our clients can avail these load cells from us at market leading prices.

Features:

• Strongly built
• Rust resistance
• Optimum performance

Other Details:

Standard capacities	100 . 200 .300. 500-kgf
Excitation voltage	10vdc-max. 15vdc
Normal output	2.0 mv/v
Non - linearity	< ± 0.025% fso
Hysteresis	< ± 0.02% fso
Non - repeatability	< ± 0.01% fso
Creep (30 minutes)	< ± 0.03% fso
Zero balance	± 1.0% fso
Input resistance	400 ± 15 ohms
Output resistance	350 ± 5 ohms
Insulation resistance (50vdc)	> 1000 mega ohms
Temp compensated range	0-60ºc
Temperature effect on output	< 0.0015% fso/ºc
Temperature effect on zero	< 0.0020% fso/ºc
