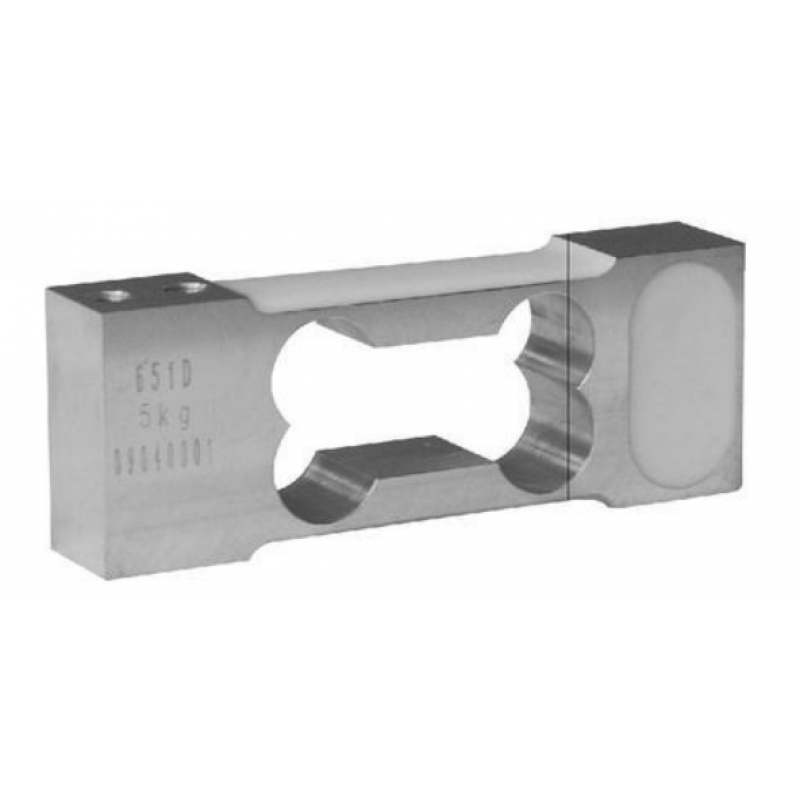

Single Point Load Cells
Product Details:
Load Capacity | 100 . 200 .300. 500-kgf |
Excitation Voltage | 10vdc-max. 15vdc |
Operating Temperature Range | 0-60 Deg C |
Safe overload of related capacity | 150.00% |
Ultimate overload of rated capacity | 200.00% |
Cable length (4 core screened) | 250 cm |
Platter size | 400 mm x 500 mm |
As a quality-oriented organization, we are focused to provide our clients excellent quality Single Point Load Cells. These load cells are manufactured by our skilled engineers using high grade raw material. The offered load cells are available in different designs and other related specifications, in order to meet the variegated expectations of our valuable customer. Our provided range is rigorously tested by the team of our professionals. Furthermore, our clients can avail these load cells from us at market leading prices.
Features:
- Strongly built
- Rust resistance
- Optimum performance
Other Details:
Standard capacities | 100 . 200 .300. 500-kgf |
Excitation voltage | 10vdc-max. 15vdc |
Normal output | 2.0 mv/v |
Non - linearity | < ± 0.025% fso |
Hysteresis | < ± 0.02% fso |
Non - repeatability | < ± 0.01% fso |
Creep (30 minutes) | < ± 0.03% fso |
Zero balance | ± 1.0% fso |
Input resistance | 400 ± 15 ohms |
Output resistance | 350 ± 5 ohms |
Insulation resistance (50vdc) | > 1000 mega ohms |
Temp compensated range | 0-60ºc |
Temperature effect on output | < 0.0015% fso/ºc |
Temperature effect on zero | < 0.0020% fso/ºc |
