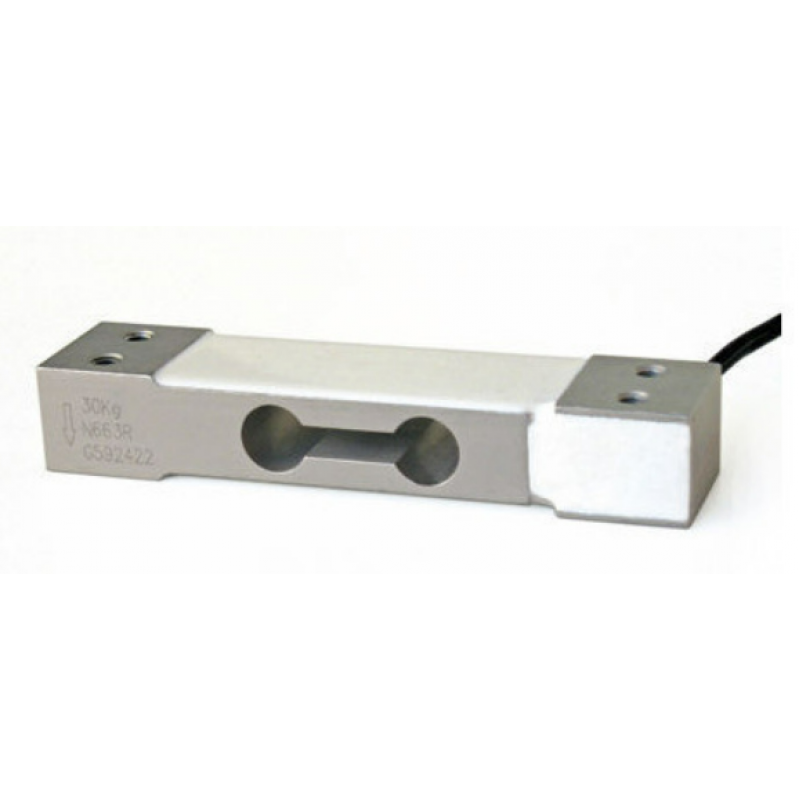

Top Load Cells
Product Details:
Brand | Goldtech |
Load Capacity | 1, 3, 5, 10, 15, 20, 30, 40-kg |
Excitation Voltage | 10vdc-max. 15vdc |
Platter size | 300mm x 300mm |
Cable length (4 core screened) | 45cm. |
Ultimate overload of rated capacity | 200.00% |
Safe overload of related capacity | 150.00% |
Temp compensated Range | 0-60 Deg C |
With support of our excellent team workers, we have been delivering the best quality range of Top Load Cells. In order to provide the best range to our clients, these load cells are manufactured by employing sophisticated technology by our professionals. Our entire range is offered in several specifications, as per the variegated requirements of our valuable clients. Apart from this, we provide these load cells in customized options and at industrial leading prices.
Features:
- Strong construction
- High efficiency
- Smooth functioning
Other Details:
Standard capacities | 1, 3, 5, 10, 15, 20, 30, 40-kg |
Excitation voltage | 10vdc-max. 15vdc |
Normal output | 2.0 mv/v |
Non - linearity | < ± 0.025% fso |
Hysteresis | < ± 0.02% fso |
Non - repeatability | < ± 0.01% fso |
Creep (30 minutes) | < ± 0.03% fso |
Zero balance | ± 1.0% fso |
Input resistance | 400 ± 15 ohms |
Output resistance | 350 ± 5 ohms |
Insulation resistance (50vdc) | > 1000 mega ohms |
Temp compensated range | 0-60ºc |
Temperature effect on output | < 0.0015% fso/ºc |
Temperature effect on zero | < 0.0020% fso/ºc |
