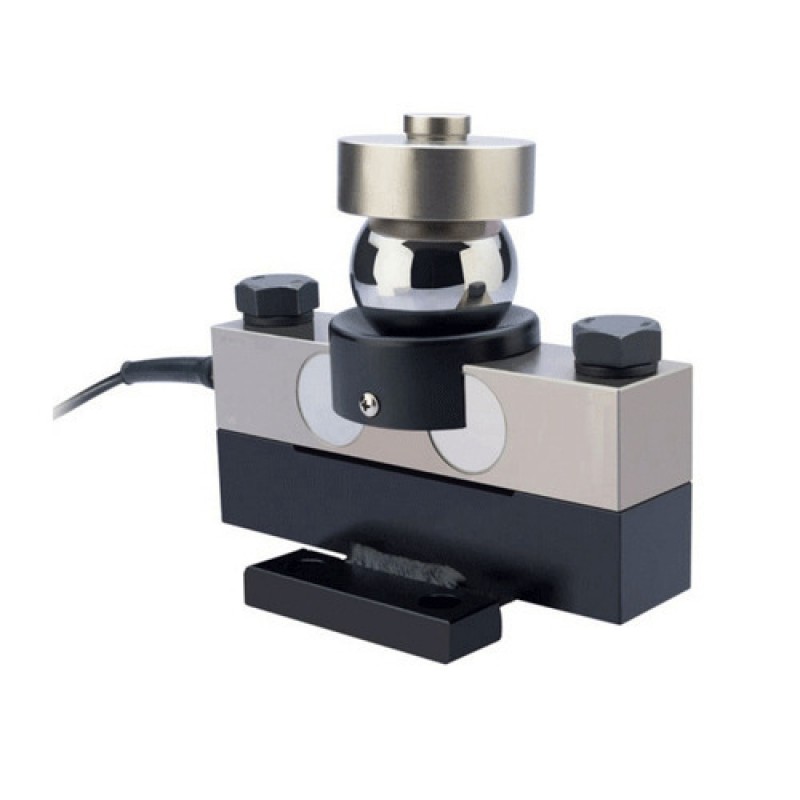

ZEMIC Shear Beam Load Cell
Product Details :
| Type | DOUBLE ENDED SHEAR BEAM TYPE |
| Brand | ZEMIC |
| Usage/Application | Weigh Bridge |
| Nominal Sensitivity | 3MV/V |
| Load Capacity | 30 TON |
| Design | Robust |
| Shape | Rectangular |
| Capacity | 30 TON |
| Material | Alloy Steel |
| Color | BLACK GREY |
For meeting the diverse requirements of our clients, we are engaged in offering Beam Load Cell.
Specification :
- Mode: IPT: 10/20/30/40/50 Ton
- Make: P.T.: ZEMIC (USA)
- Rated Load: 30 Ton
- Safe Over Load: 150%: 150% Of Rated Capacity
- Ultimate Over Load: 300%: 300% Of Rated Capacity
- Excitation: 5-12 V(DC) Max 18 V(DC)
- Temperature Compensated: (-) 35-60 C
- Temperature Operating: +10 to 40'c , -35- + 65 'c
- Combined Error: 0.02% FSO
- Non Linearity: <+/-0.017% FSO
- Non ROepeatability: +/-0.02% FSO
- Hysterisis: 0.02% FSO
- Creep (after 30 min): 0.02
- Side Load: --NA--
- Bridge Resistancel: /P-700 +/- ohms
- O/P: -700 +/- 7 ohms
- Insulation Resistance: >5000 (50 VDC)
- Integral Cable: 12 Mtr.
- ACCURACY CLASSOIML: R60 - C3
- MocAlley Steel:
- Protection Class: IP-68
Additional Information:
Production Capacity: 500 PER YEAR
Delivery Time: 1-5 DAYS
