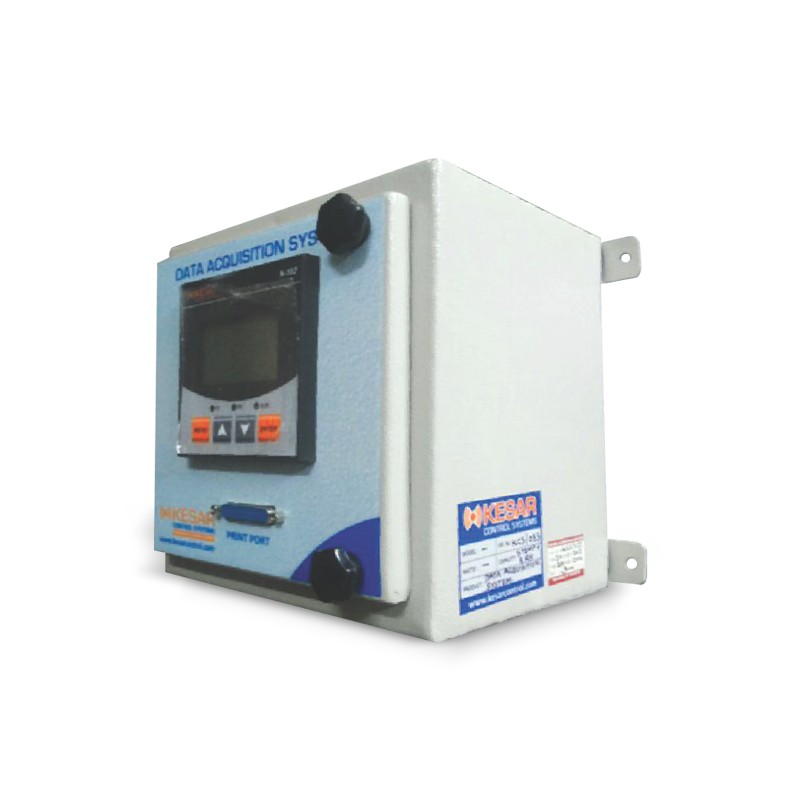

MULTI CHANNEL SCANNER
Product Details :
MULTI CHANNEL SCANNER
- No. of Channels : 4 / 8 / 16
SIZE & MODELS :
| No. of Channels | : | 4 / 8 / 16 |
| Display | : | 128 * 64 alphanumeric graphical display |
| : | Temperature : RTDPt- 100 and PT- 1000 (0 to 4000C) | |
| : | Thermocouple 2 types (J type 8500C, K type oto 13000C | |
| Sensor Input | : | Linear Inputs : 4mA - 20mA , OmA - 20mA 0-1 v, V, mv can support |
| : | Humidity RH : o-IV, O- 3.3V (3 wire), 4mA - 20mA | |
| Alarm | : | Common Alarm for all channels |
| Communication port | : | RS 485 to 232 (Pc communication) or Ethernet (Tamper proof data with 21cfr part 11 compliance software.) |
| Print Features | : | Date wise data recovery Page wise data recovery |
| Printer Supported | : | EPSON LX - 300+ (Dot Matrix) with provided printer cable |
| Scan time | : | 1 to 255 minutes interval time |
| Memory Capacity | : | up to 3000 records |
| Audio Indication | : | For Critical condition and Memory full condition |
| Supply voltage | : | 110 / 230 VAC - 50/60 Hz |
| Size | : | 96mm x 96mm x 65mm |
