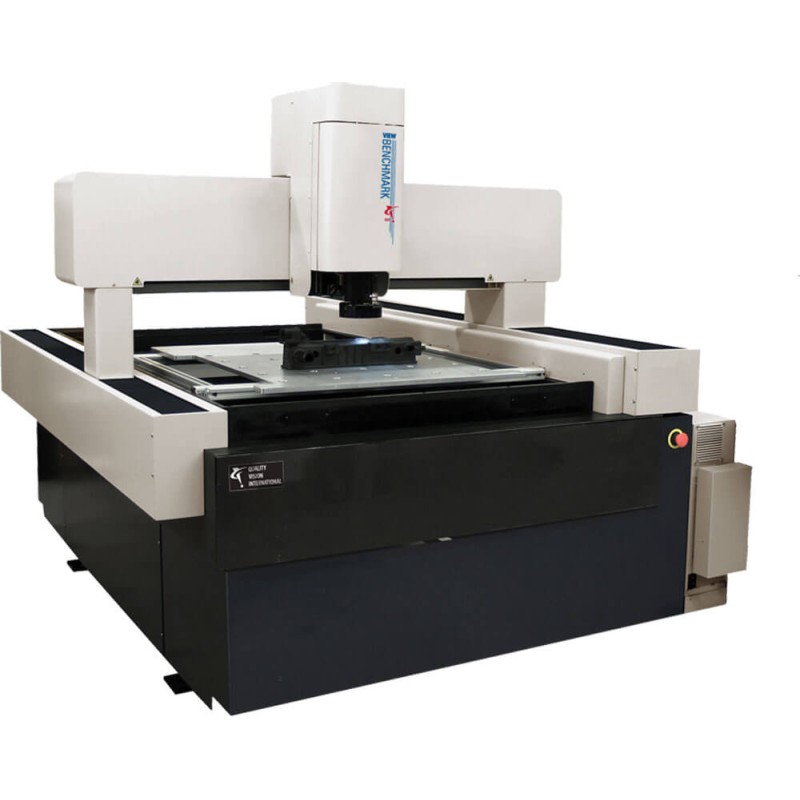

Benchmark XLT

Product Details :

Extra large area dimensional metrology system.

• The VIEW Benchmark™ XLT delivers VIEW performance and reliability in a large travel, non-contact, high precision metrology system.
• The Benchmark XLT is designed to handle large area parts or nested groups of smaller parts using its moving bridge design. Advanced image processing
• VIEW Metrology Software (VMS™) is standard on Benchmark XLT and offers a wide array of standard measurement tools as well as a built-in scripting language to enable custom-functions.
• Elements® CAD-to-Measure Software is optional on Benchmark XLT and provides automatic translation of 2-D CAD files in measurement programs, enabling very fast set-up of measurement routines for even the most complex parts.
• VMS Off-Line Workstation Software is optional on Benchmark XLT allowing for measurement routines to run while programming is done on a separate .

Key Features and Options

• The XLT offers extended travel ranging from 900 mm x 1500 mm to 1500 mm x 2000 mm to handle large area parts or nested groups of smaller parts. The XLT's moving bridge design features an open work envelope for loading and unloading large parts.
• Advanced optics, illumination, and image processing make the Benchmark XLT a world-class metrology system. Benchmark XLT operates with one or more of VIEW's software packages:
• Elements® CAD-to-Measure Software is optional on Benchmark XLT and provides automatic translation of 2-D CAD files in measurement programs, enabling very fast set-up of measurement routines for even the most complex.
