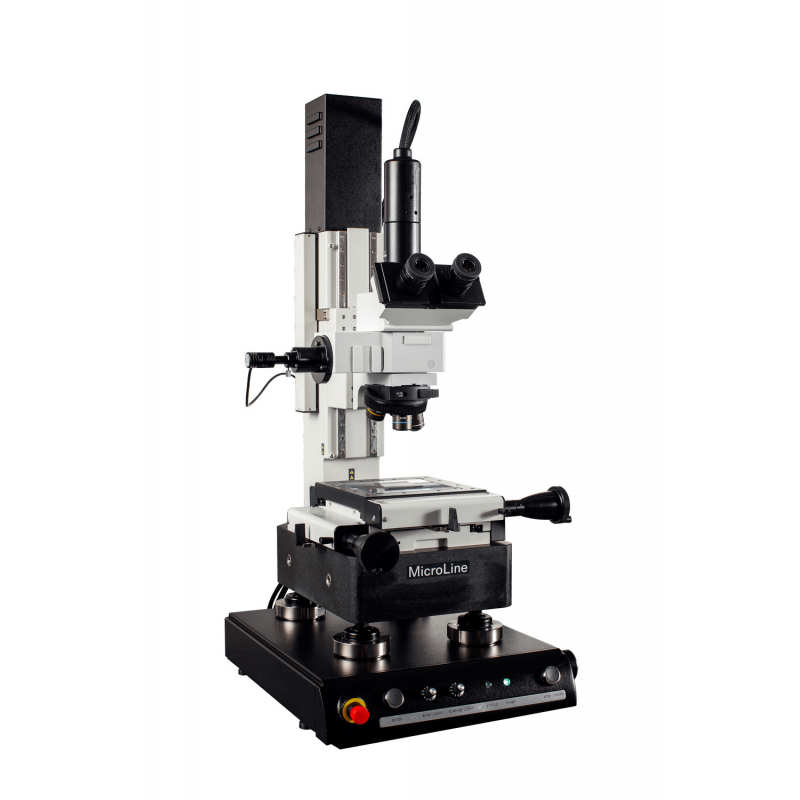

MicroLine 300
Product Details :
- The VIEW MicroLine® is a high-performance critical dimensional measurement system designed to measure wafers, masks, MEMS and other micro-fabricated devices in situations which do not require fully automated operation.
- MicroLine systems feature the highest quality microscope optics, manually operated stages and programmable light intensity. MicroLine systems are robust and capable of measuring transparent layers, lines with irregular edge and other critical features.
| Standard | Optional | |
|---|---|---|
| X,Y,Z Measuring Range (mm) | 200x200 | 300x300 |
| Z Focusing Range (mm) | 25 | |
| XY Stage | Cross roller with manual coaxial positioning and quick release | Glass stage insert for use with transmitted light |
| Imaging Optics | Olympus Microscope optics, including horizontal bright field/dark field illuminator, five-objective motorized lens turret, tilt trinocular with eyepieces, and standard camera mounting tube | |
| Front Lens (Field Interchangable) | Full spectrum, programmable tungsten halogen coaxial surface light | Full spectrum, programmable tungsten halogen transmitted light with adjustable N.A. stop |
| Sensor Options | Through-the-lens (TTL) laser Spectra Probe white light range sensor Off-axis triangulation laser | |
| Measurement Modes | High Speed Move and Measure (MAM) | Continuous Image Capture (CIC) |
MicroLine 300
- Views: 55
-
Daksh Quality Systems - Product Code: MicroLine-300
- Availability: In Stock
- ₹0
