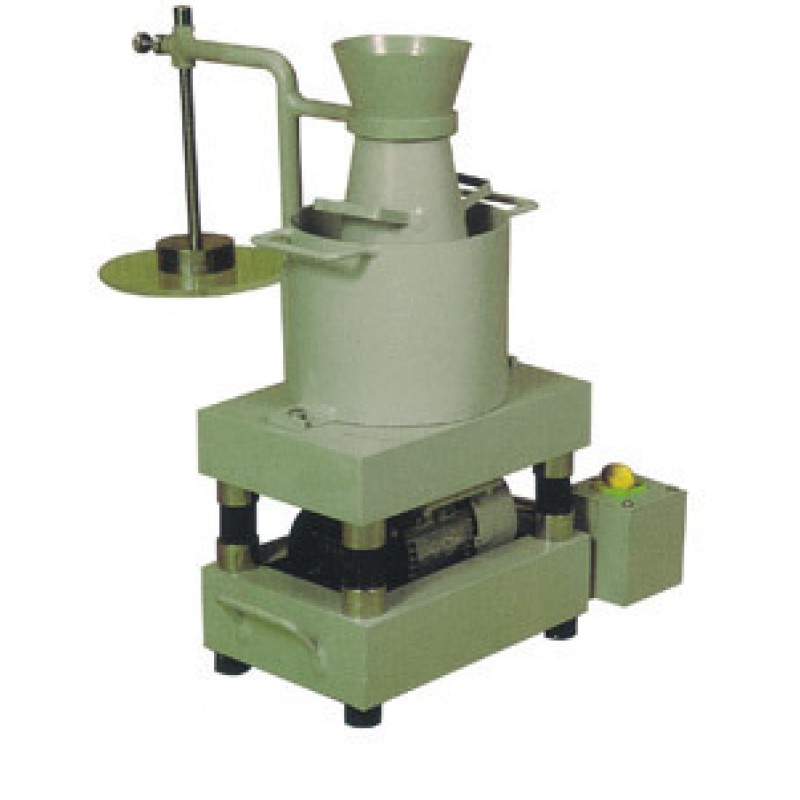

Vee Bee Consistometer
Product Details :
Material | Stainless Steel |
Table Size | 380mm long X 260mm wide |
Tamping road Size | 16mm dia |
Weight | 45 kg |
The instrument is used for work ability as well as consistency of fresh concrete. A slump Cone and a graduated rod supplied with the instrument helps the operator to find out slump values and vibration table with container and acrylic disc is used to find out work ability of concrete expressed in Vee Bee degrees, which is defined as the time in seconds to complete required vibrating at which the fresh concrete flows out sufficiently to come in contract of the entire face of acrylic disc. The divisions of scale on the rod record the slump of the concrete in millimeters. Supplied complete with a sheet metal container with lifting handles which can easily be fixed to the vibrating table.
